About
Description
Part Number: DHIPFD20/15R-T12L4
Brand: SPRO
Camera Resolution 2 Megapixels
Lens Fixed Lens
IR Distance Up to 15m IR distance
Flame Detection Yes
Built-in Mic. Yes
Speaker Built-in Yes
2 Way Audio Microphone & Speaker Built-in

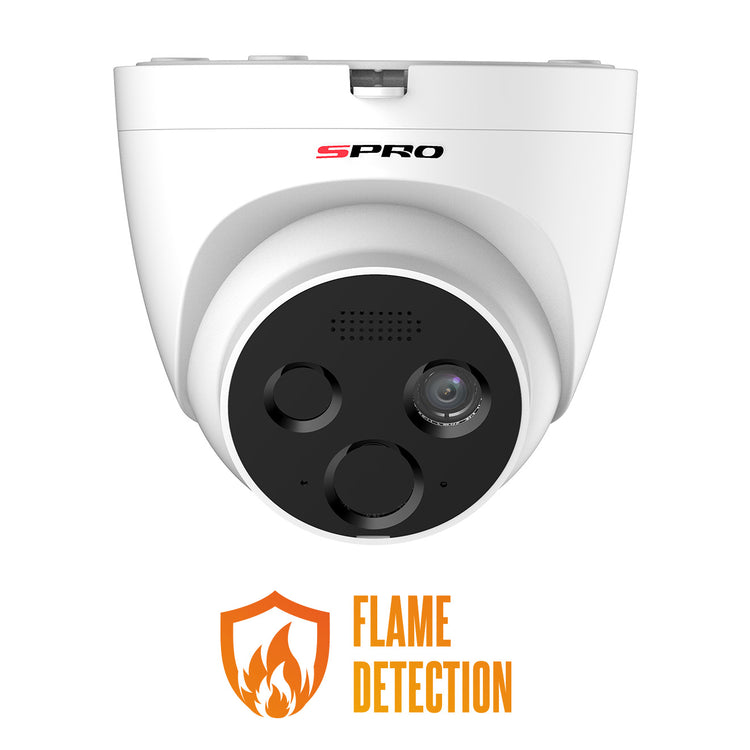

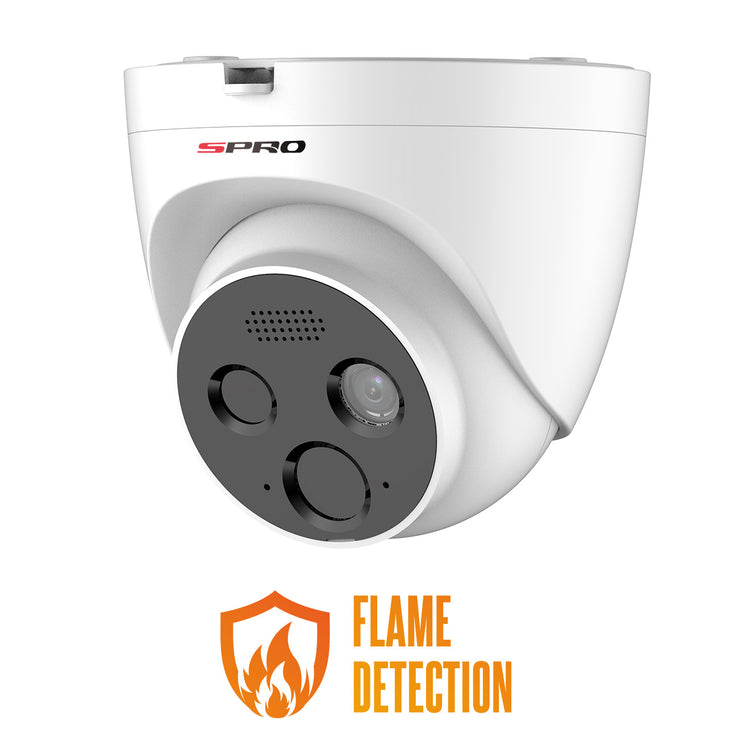

SPRO’s Flame Detection Camera is a powerful tool in next generation fire prevention.
Using advanced AI Technology, the camera can detect the smallest flicker of a flame, giving advanced warning even before most conventional fire alarm systems have sounded.
This camera is a comprehensive safety tool effective in high risk of fire environments such as warehouses handling highly flammable materials, server rooms, recycling centres, libraries and archive rooms, shopping malls, etc.
The full flame detection functionality on this camera will only work with SPRO A6, A7 and A8 NVRs.
Key Features
- 2 megapixel
- 4mm visible focal length
- 1.2mm thermal focal length
- Up to 15m IR distance
- Flame detection with adjustable sensitivity
- Flame detection distance: 10m x 10m
- Alarm siren
- Tracking flame position
- Alarm: 1 in & 1 out
- 2 way audio
- IP66 waterproof
- DC 12V/POE
| Specifications: | |
|---|---|
| Model Number | DHIPFD20/15R-T12L4 |
| Thermal Lens | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 120 (H) × 90 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | < 60mK@f/1.0 |
| Focal Length | 1.2 mm |
| Close Focus Distance | 0.4m 1.31 ft |
| Field of View | Horizontal: 90°; Vertical: 67.5° |
| Thermal Focus Control | Fixed-focal |
| Field of Depth | >3 cm |
| Aperture | F1.1 |
| Flame Detection Distance | 10m²: 10m x 10m |
| Visible Lens | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2 MP |
| Min. Illumination | Colour: 0.05 lux; B/W: 0.005 lux; 0 lux (IR on) |
| Visible AGC | Auto; Manual |
| Visible Noise Reduction | 2D NR; 3D NR |
| S/N Ration | ≥ 55 dB |
| Electronic Shutter Speed | 1 s–1/30,000 s (manual/auto) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); Colour and B/W |
| Iris Control | Fixed |
| Image Flip | 90°; 180°; 270° |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal |
| Focal Length | 4 mm |
| Field of View | H: 86°; V: 46°; D: 101° |
| Close Focus Distance | 1 m (3.28 ft) |
| Aperture | F1.6 |
| Illuminator | IR |
| Illuminator On/Off Control | Auto; Manual |
| Illumination Distance | 15m (49.21ft) |
| Illumination Angle | 100° |
| Audio and Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Resolution | Visible: Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1920×1080 by default Sub stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 by default |
| Video Frame Rate | Visible: Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream: 1 fps–25 fps adjustable, 15 fps by default |
| Audio Compression | G.711a; G.711mu; AAC; PCM |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Visible and Audible Alarm | Yes |
| Network Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Interoperability | ONVIF; GB/T28181; CGI; |
| Browser | IE: IE 9 and later (Edge is not supported) Chrome: 42 and earlier Firefox: 42 and earlier |
| User / Host | Up to 10 (total bandwidth: 100 MB) |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Intelligence | |
| Flame Detection | Yes |
| Cold / Hot Spot Trace | N/A |
| Port | |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| Alarm Linkage | Relay output / Email / Snapshot |
| Alarm Event | Local audible and visual alarm notification |
| Power | |
| Power Supply | 12 VDC ± 20%; PoE |
| Power Consumption | Basic: 4.5 W (12 VDC, LED off) Max.: 10.1 W (12 VDC, LED on, heat on) |
| Environment | |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Construction | |
| Protection | IP66, anti-surge 2 kV; anti-electrostatic 6 kV ; anti-electrostatic 8 kV |
| Product Dimensions | φ110mm × 88.6mm (φ4.33" × 3.49") |
| Net Weight | –≤ 0.85 kg (1.87 lb) |
| Gross Weight | ≤ 1 kg (2.20 lb) |
| Installation | Ceiling/Pole/Wall mount |
