About

Description

Part Number:  DHPTZ20/25XR-V4
Brand:  SPRO
Camera Resolution  2 Megapixels
IR Distance  Up to 100m IR distance
Protocol  CVI
Starlight  Yes
Style  PTZ

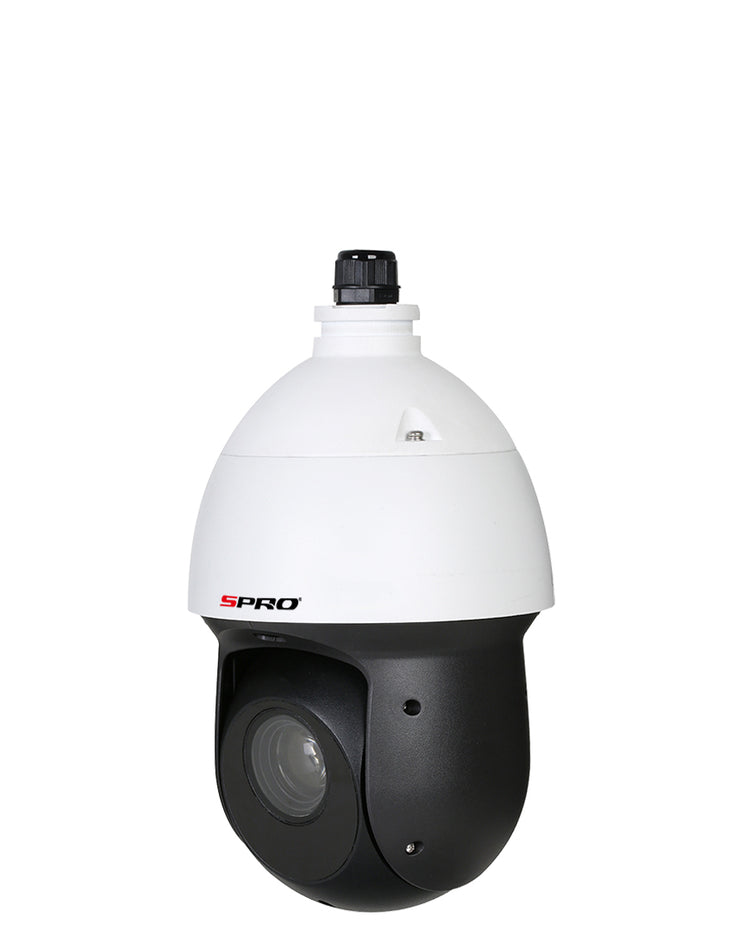

The 2MP HDCVI PTZ Camera offers a powerful 25x optical zoom paired with Starlight Technology for superior low-light performance. Enjoy 360° endless pan rotation and control seamlessly over coaxial cable.

Benefit from long-distance real-time transmission, a plethora of presets, and intuitive 3D positioning using mouse-controlled zoom. With an impressive IR range of up to 100m via Smart IR, this camera promises precision and adaptability in a compact design.

Specifications:
Model Number DHPTZ20/25XR-V4
Image Sensor 1/2.8" 2Megapixel STARVIS CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed 1/3 s–1/100000 s
Min. Illumination Colour: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on)
Illumination Distance 100 m (328.08 ft)
Illuminator On/Off Control Zoom Prio/ Manual
Illuminator Number 6 (IR)
Lens
Focal Length 4.8mm~120mm (25x Optical zoom)
Max Aperture F1.6~ F3.5
Field of View H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7°
Optical Zoom 25x
Focus Control Auto/ Semi-Auto / Manual
Close Focus Distance 0.1 m–2 m (0.33 ft–6.56 ft)
Iris Control Auto / Manual
DORI Distance Detect:1655.2m / Observe:653.8m / Recognise:331.0m / Identify:165.5m
PTZ
Pan/Tilt/Rotation Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~120°/s
Preset Speed Pan: 240°/s; Tilt:300°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Support
Idle Motion Preset/ Tour/ Pattern/ Scanning
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate 1080p (25/30 fps), 720p (25/30/50/60 fps)
Day/Night Yes
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto/ Indoor/ Outdoor/ Tracking/ Manual/ Sodium lamp/ Natural light/ Street lamp
Gain Control Auto/ Manual
Noise Reduction 2D NR / 3D NR
Defog Electronic
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Yes
CVI Product Output Mode CVI; TVI; AHD; CVBS (CVBS Used for Debugging only)
S/N Ratio ≥50 dB
Port
Analogue Output 1 channel (CVBS/CVI output, BNC)
RS-485 1 (baud rate range: 1200 bps–9600 bps)
Audio Input 1 channel (LINE IN, bare wire)
Alarm Input 2 (on-off value input: 0–5 VDC)
Alarm Output 1
Alarm Linkage Scan; preset; tour; pattern; alarm digital output
Alarm Event Alarm Input
General
Power Supply DC 12V/3A ± 10%
Power Consumption 9.6 W, 23.2 W (IR light on, PTZ)
Operating Temperature –40°C to +70°C
Operating Humidity ≤ 95%RH
Ingress Protection IP66; TVS 6000V lightning protection; surge protection

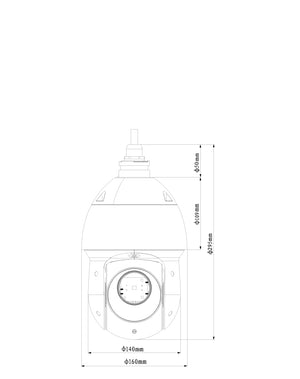

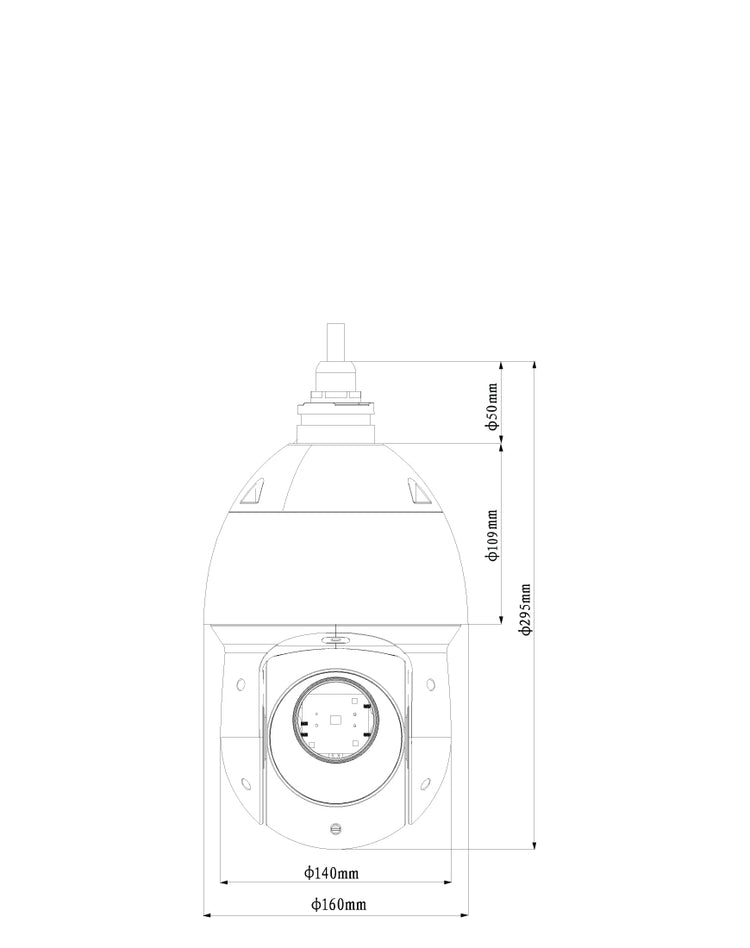

Dimensions 295.4 mm × Φ160.0 mm
Net Weight 3Kg
Gross Weight 4.2Kg
Certification
Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B,
ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Power
Power Supply 12 VDC, 3 A ± 10%
Power Consumption Basic: 10 W Max.: 22 W (PTZ + illuminator + heater)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection IP66; TVS 6000V lightning proof; surge protection; voltage
transient protection
Structure
Product Dimensions 269.9 mm × Φ160.0 mm (10.63" × Φ6.30")
Net Weight 3.0 kg (6.61 lb)
Gross Weight 4.2 kg (9.26 lb)

Description

Part Number:  DHPTZ20/25XR-V4
Brand:  SPRO
Camera Resolution  2 Megapixels
IR Distance  Up to 100m IR distance
Protocol  CVI
Starlight  Yes
Style  PTZ

The 2MP HDCVI PTZ Camera offers a powerful 25x optical zoom paired with Starlight Technology for superior low-light performance. Enjoy 360° endless pan rotation and control seamlessly over coaxial cable.

Benefit from long-distance real-time transmission, a plethora of presets, and intuitive 3D positioning using mouse-controlled zoom. With an impressive IR range of up to 100m via Smart IR, this camera promises precision and adaptability in a compact design.

Specifications:
Model Number DHPTZ20/25XR-V4
Image Sensor 1/2.8" 2Megapixel STARVIS CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed 1/3 s–1/100000 s
Min. Illumination Colour: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on)
Illumination Distance 100 m (328.08 ft)
Illuminator On/Off Control Zoom Prio/ Manual
Illuminator Number 6 (IR)
Lens
Focal Length 4.8mm~120mm (25x Optical zoom)
Max Aperture F1.6~ F3.5
Field of View H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7°
Optical Zoom 25x
Focus Control Auto/ Semi-Auto / Manual
Close Focus Distance 0.1 m–2 m (0.33 ft–6.56 ft)
Iris Control Auto / Manual
DORI Distance Detect:1655.2m / Observe:653.8m / Recognise:331.0m / Identify:165.5m
PTZ
Pan/Tilt/Rotation Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 200°/s; Tilt: 0.1° ~120°/s
Preset Speed Pan: 240°/s; Tilt:300°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Support
Idle Motion Preset/ Tour/ Pattern/ Scanning
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate 1080p (25/30 fps), 720p (25/30/50/60 fps)
Day/Night Yes
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto/ Indoor/ Outdoor/ Tracking/ Manual/ Sodium lamp/ Natural light/ Street lamp
Gain Control Auto/ Manual
Noise Reduction 2D NR / 3D NR
Defog Electronic
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Yes
CVI Product Output Mode CVI; TVI; AHD; CVBS (CVBS Used for Debugging only)
S/N Ratio ≥50 dB
Port
Analogue Output 1 channel (CVBS/CVI output, BNC)
RS-485 1 (baud rate range: 1200 bps–9600 bps)
Audio Input 1 channel (LINE IN, bare wire)
Alarm Input 2 (on-off value input: 0–5 VDC)
Alarm Output 1
Alarm Linkage Scan; preset; tour; pattern; alarm digital output
Alarm Event Alarm Input
General
Power Supply DC 12V/3A ± 10%
Power Consumption 9.6 W, 23.2 W (IR light on, PTZ)
Operating Temperature –40°C to +70°C
Operating Humidity ≤ 95%RH
Ingress Protection IP66; TVS 6000V lightning protection; surge protection
Dimensions 295.4 mm × Φ160.0 mm
Net Weight 3Kg
Gross Weight 4.2Kg
Certification
Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B,
ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Power
Power Supply 12 VDC, 3 A ± 10%
Power Consumption Basic: 10 W Max.: 22 W (PTZ + illuminator + heater)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection IP66; TVS 6000V lightning proof; surge protection; voltage
transient protection
Structure
Product Dimensions 269.9 mm × Φ160.0 mm (10.63" × Φ6.30")
Net Weight 3.0 kg (6.61 lb)
Gross Weight 4.2 kg (9.26 lb)
