Description
Part Number: DHIPPTZ20/25XR-V4
Brand: SPRO
Camera Resolution 2 Megapixels
Codec recording H.264
IR Distance Up to 100m IR distance
Tripwire Yes
Intrusion Yes
Missing object Yes
Abandoned object Yes
Starlight Yes
Style PTZ

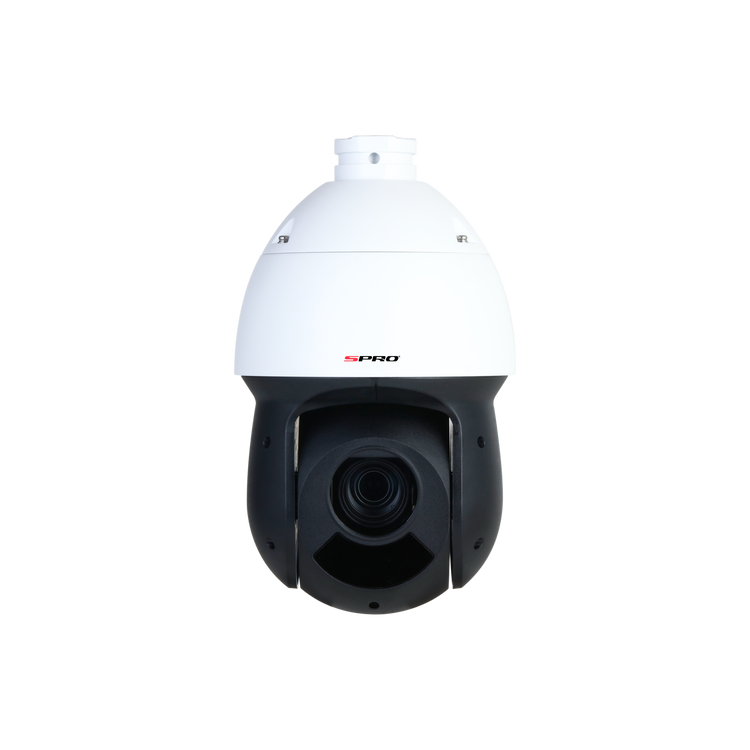

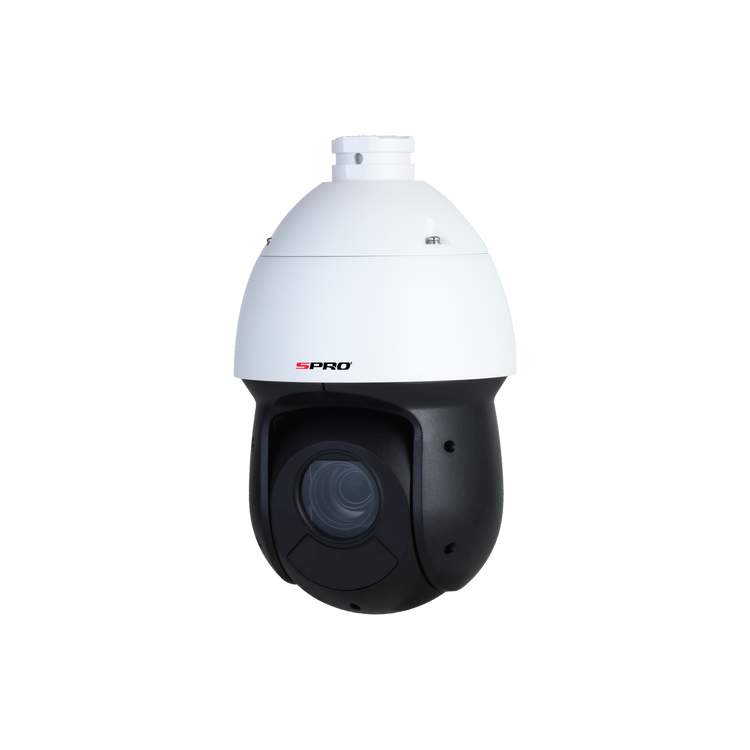

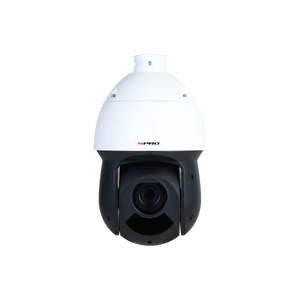

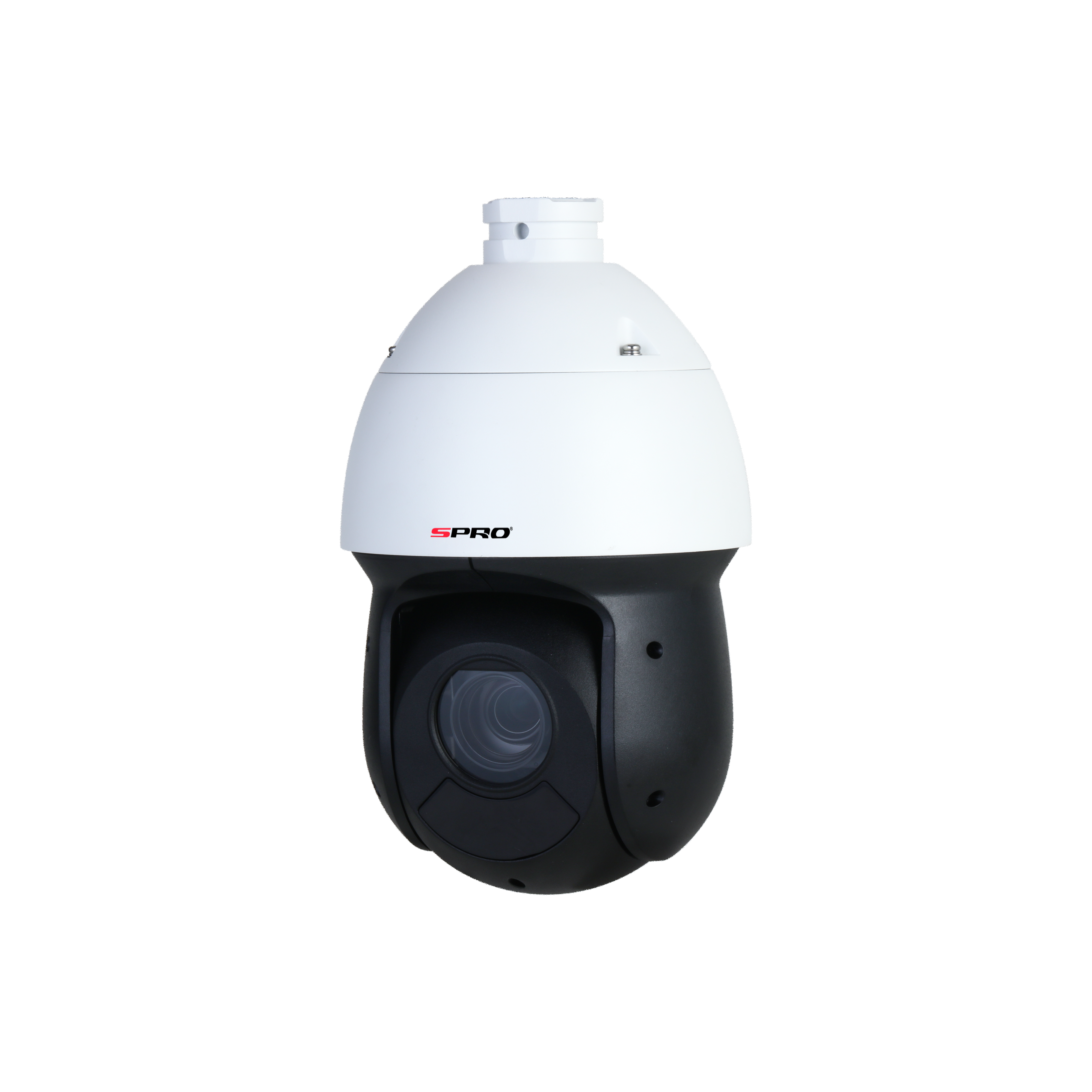

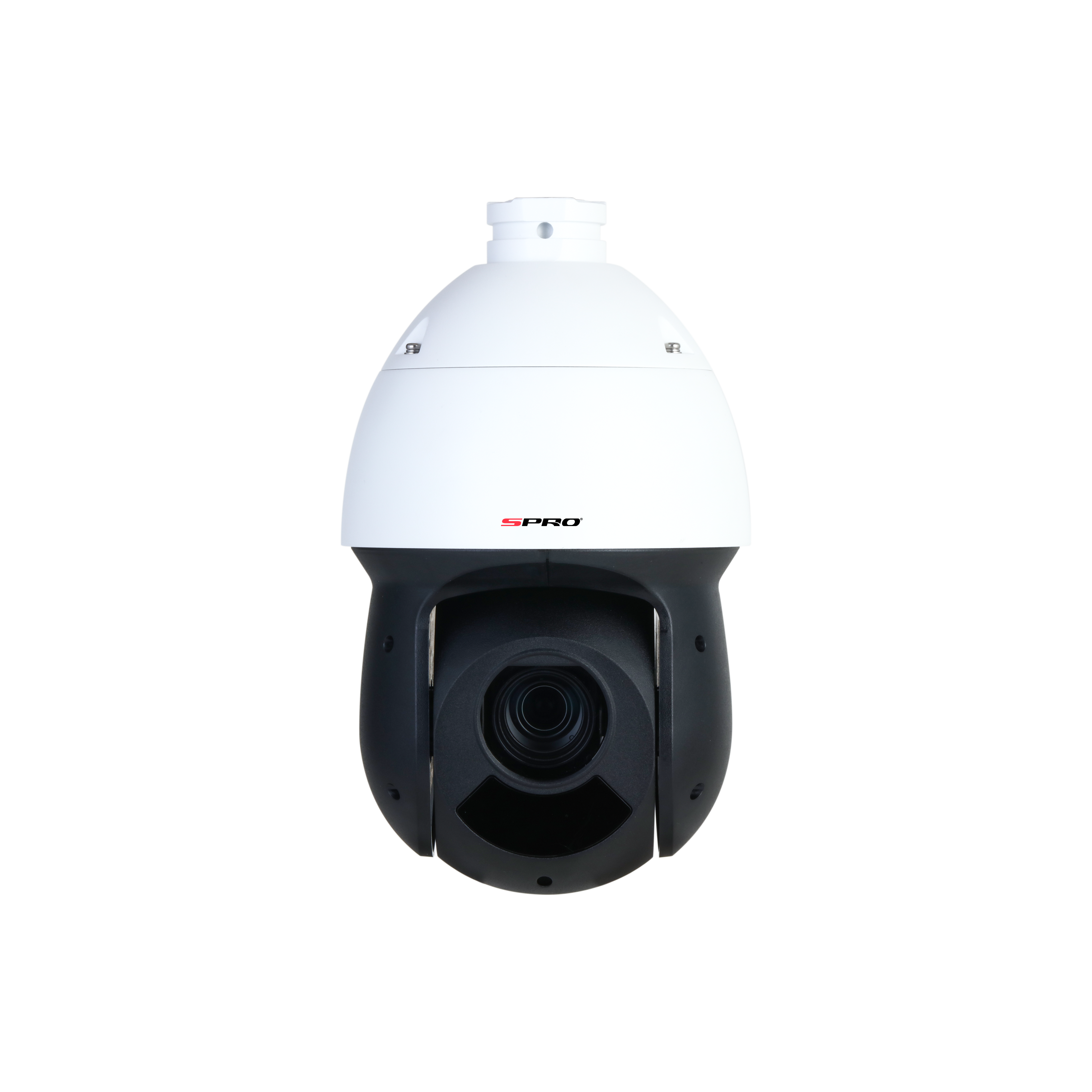

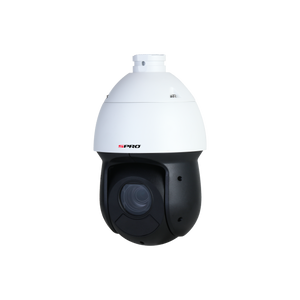

The SPRO 2MP IP PTZ with 25x Zoom features a 1/2.8" 2 Megapixel STARVIS™ CMOS sensor, ensuring crisp imagery. With a 25x optical zoom and advanced Starlight technology, it provides clarity even in low light. The camera also comes with IR boasting an IR distance of up to 100 metres at night.
This PTZ comes with a wall-mount bracket for easy installation. The SPRO 2MP IP PTZ with 25x Zoom is designed with advanced technology to ensure crystal clear imagery, even in low light conditions. With a 25x optical zoom and a powerful IR distance of up to 100 metres, this camera offers unparalleled clarity and visibility. Plus, the wall-mount bracket included makes installation a breeze, giving you peace of mind and convenience.
| Specifications: | |
|---|---|
| Model Number | DHIPPTZ20/25XR-V4 |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | 3 (IR) |
| LENS | |
| Focal Length | 4.8 mm–120 mm |
| Max. Aperture | F1.6–F3.5 |
| Field of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2 |
| Optical Zoom | 25x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto |
| DORI Distance | Detect 1,613 m (5,291.99 ft) Observe 646 m (2,119.42 ft) Recognize 323 m (1,059.71 ft) Identify 161 m (528.22 ft) |
| Lens | |
| Focal Length | 4.8mm ~ 120mm (25x Optical zoom) |
| Max Aperture | F1.6~ F4.4 |
| Focus Control | Auto / Manual |
| Angle of View | H: 62.8°~ 2.6° |
| Close Focus Distance | 100mm~ 1000mm |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0° to 360° endless |
| Manual Control Speed | Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-S Pelco-P/D (Auto recognition) |
| INTELLIGENCE | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, capturing pictures, and face enhancement |
| SMD | Yes |
| VIDEO | |
| Compression | Smart H.265+;H.265;Smart H.264+;H.264; H.264B;MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 1080p/960p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/960p/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 1792 kbps–8192 kbps H.265: 512 kbps–5632 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | YES |
| Region of Interest (RoI) | YES |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180 ° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| AUDIO | |
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6; 802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2); IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS |
| Interoperability | CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser | IE 7 and later versions Chrome Firefox Safari |
| Management Software | SPRO CSS;DSS;DMSS;IVSS;ConfigTool;NVR |
| Mobile Client | iOS;Android;iPhone;iPad |
| CERTIFICATIONS | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014 |
| PORT | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; preset; tour; pattern; recording alarm digital input; audio; send email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection IP conflict detection; memory card state detection memory space detection; power exception detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| POWER | |
| Power Supply | 12 VDC/3 A (± 10%) PoE (802.3at) |
| Power Consumption | Basic: 12 W Max.: 20 W (IR light) |
| ENVIRONMENT | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66, TVS 6000 V lightning proof; surge protection voltage transient protection |
| STRUCTURE | |
| Product Dimensions | 270.4 mm × Φ160.0 mm (10.65" × Φ6.30") |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.9 kg (8.60 lb) |
Description
Part Number: DHIPPTZ20/25XR-V4
Brand: SPRO
Camera Resolution 2 Megapixels
Codec recording H.264
IR Distance Up to 100m IR distance
Tripwire Yes
Intrusion Yes
Missing object Yes
Abandoned object Yes
Starlight Yes
Style PTZ
The SPRO 2MP IP PTZ with 25x Zoom features a 1/2.8" 2 Megapixel STARVIS™ CMOS sensor, ensuring crisp imagery. With a 25x optical zoom and advanced Starlight technology, it provides clarity even in low light. The camera also comes with IR boasting an IR distance of up to 100 metres at night.
This PTZ comes with a wall-mount bracket for easy installation. The SPRO 2MP IP PTZ with 25x Zoom is designed with advanced technology to ensure crystal clear imagery, even in low light conditions. With a 25x optical zoom and a powerful IR distance of up to 100 metres, this camera offers unparalleled clarity and visibility. Plus, the wall-mount bracket included makes installation a breeze, giving you peace of mind and convenience.
| Specifications: | |
|---|---|
| Model Number | DHIPPTZ20/25XR-V4 |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | 3 (IR) |
| LENS | |
| Focal Length | 4.8 mm–120 mm |
| Max. Aperture | F1.6–F3.5 |
| Field of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2 |
| Optical Zoom | 25x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto |
| DORI Distance | Detect 1,613 m (5,291.99 ft) Observe 646 m (2,119.42 ft) Recognize 323 m (1,059.71 ft) Identify 161 m (528.22 ft) |
| Lens | |
| Focal Length | 4.8mm ~ 120mm (25x Optical zoom) |
| Max Aperture | F1.6~ F4.4 |
| Focus Control | Auto / Manual |
| Angle of View | H: 62.8°~ 2.6° |
| Close Focus Distance | 100mm~ 1000mm |
| PTZ | |
| Pan/Tilt/Rotation | Pan: 0° to 360° endless |
| Manual Control Speed | Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-S Pelco-P/D (Auto recognition) |
| INTELLIGENCE | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, capturing pictures, and face enhancement |
| SMD | Yes |
| VIDEO | |
| Compression | Smart H.265+;H.265;Smart H.264+;H.264; H.264B;MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 1080p/960p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/960p/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 1792 kbps–8192 kbps H.265: 512 kbps–5632 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | YES |
| Region of Interest (RoI) | YES |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180 ° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| AUDIO | |
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6; 802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2); IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS |
| Interoperability | CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser | IE 7 and later versions Chrome Firefox Safari |
| Management Software | SPRO CSS;DSS;DMSS;IVSS;ConfigTool;NVR |
| Mobile Client | iOS;Android;iPhone;iPad |
| CERTIFICATIONS | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014 |
| PORT | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; preset; tour; pattern; recording alarm digital input; audio; send email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection IP conflict detection; memory card state detection memory space detection; power exception detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| POWER | |
| Power Supply | 12 VDC/3 A (± 10%) PoE (802.3at) |
| Power Consumption | Basic: 12 W Max.: 20 W (IR light) |
| ENVIRONMENT | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66, TVS 6000 V lightning proof; surge protection voltage transient protection |
| STRUCTURE | |
| Product Dimensions | 270.4 mm × Φ160.0 mm (10.65" × Φ6.30") |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.9 kg (8.60 lb) |
SPRO
by
SPRO
SPRO 2MP IP PTZ with 25x Zoom
- Regular price
- £389.64
- Sale price
- £389.64
- Regular price
-
£449.99
Tax included.
