About
Description
Part Number: DHIPD40-LR-DUO-D-W
Brand: SPRO
Camera Resolution 4 Megapixels
Active Deterrence Yes
ColourNight 2.0 Yes
Discover the latest in advanced technology with our state-of-the-art 4MP DUO IP Panoramic Camera. Engineered to deliver unmatched security and assurance, this camera revolutionizes surveillance.
The SPRO ColourNight2.0 cameras are specifically designed for night-time use, allowing for full-color images to be captured in low light conditions. With a white light LED feature, these cameras provide exceptional illumination for clear and detailed footage.
The second-generation SPRO ColorNight2.0 cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion, causing a security light effect. However, the cameras can still be used in the same way as the previous generation, with its white light on continuously throughout the night - if needed. The advanced IR technology in the SPRO cameras allows for standard black and white night images, freeing up the white light LED to only activate when motion is detected. This provides a more discreet approach while also saving energy. Additionally, the cameras can still function with the LED activated throughout the night if desired.
Key Features
- 180° Panoramic image with seamless splicing
- Active Deterrence
- Smart Dual Illumination
- EPTZ Tracking - (this feature is only available on the local monitor live view only)
- Compatible with NVR's 4K Range and A8 Range
Compatible NVR's:
DHIPNVR16-A7
DHIPNVR32-A7
DHIPNVR08-A8
DHIPNVR16-A8
DHIPNVR32-A8
DHIPNVR08-4K-V2
DHIPNVR16-4K-V3
DHIPNVR32-4K-V4
| Specifications: | |
|---|---|
| Model Number | DHIPD40-LR-DUO-D-W |
| Image Sensor | Dual 1/2.7" CMOS |
| Max. Resolution | 4096 (H) x 1860 (V) |
| ROM | 128 MB |
| RAM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Colour, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED); Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360° / Tilt: 0°–77° / Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Max. Aperture | F1.4 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m ( 2.62 ft) |
| DORI Distance |
Detect: 50.6 m (166.01 ft) Observe: 20.2 m (66.27 ft) Recognise: 10.1 m (33.14 ft) Identify: 5.1 m( 16.73 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 6 kbps –16384 kbps |
| Day / Night | Auto(ICR)/Coulor/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes ( 4 areas ) |
| Privacy Masking | 4 areas |
| Defog | Yes |
| Audio | |
| Built-in MIC | Yes, built-in speaker |
| Audio Compression |
Yes, built-in speaker G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF ( Profile S/Profile G/Profile T); CGI; |
| User / Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 8 and later; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3 V-5 VDC |
| Alarm Output | 1 channel out: 300mA 12 VDC |
| Power | |
| Power Supply | CE-LVD: EN62368-1 |
| Power Consumption | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ122 mm × 131.9 mm (Φ4.80" × 5.19" ) |
| Net Weight | 990 g (2.18 lb) |
| Gross Weight | 1150 g (2.54 lb) |
Description
Part Number: DHIPD40-LR-DUO-D-W
Brand: SPRO
Camera Resolution 4 Megapixels
Active Deterrence Yes
ColourNight 2.0 Yes
Discover the latest in advanced technology with our state-of-the-art 4MP DUO IP Panoramic Camera. Engineered to deliver unmatched security and assurance, this camera revolutionizes surveillance.
The SPRO ColourNight2.0 cameras are specifically designed for night-time use, allowing for full-color images to be captured in low light conditions. With a white light LED feature, these cameras provide exceptional illumination for clear and detailed footage.
The second-generation SPRO ColorNight2.0 cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion, causing a security light effect. However, the cameras can still be used in the same way as the previous generation, with its white light on continuously throughout the night - if needed. The advanced IR technology in the SPRO cameras allows for standard black and white night images, freeing up the white light LED to only activate when motion is detected. This provides a more discreet approach while also saving energy. Additionally, the cameras can still function with the LED activated throughout the night if desired.
Key Features
- 180° Panoramic image with seamless splicing
- Active Deterrence
- Smart Dual Illumination
- EPTZ Tracking - (this feature is only available on the local monitor live view only)
- Compatible with NVR's 4K Range and A8 Range
Compatible NVR's:
DHIPNVR16-A7
DHIPNVR32-A7
DHIPNVR08-A8
DHIPNVR16-A8
DHIPNVR32-A8
DHIPNVR08-4K-V2
DHIPNVR16-4K-V3
DHIPNVR32-4K-V4
| Specifications: | |
|---|---|
| Model Number | DHIPD40-LR-DUO-D-W |
| Image Sensor | Dual 1/2.7" CMOS |
| Max. Resolution | 4096 (H) x 1860 (V) |
| ROM | 128 MB |
| RAM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Colour, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED); Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360° / Tilt: 0°–77° / Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Max. Aperture | F1.4 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m ( 2.62 ft) |
| DORI Distance |
Detect: 50.6 m (166.01 ft) Observe: 20.2 m (66.27 ft) Recognise: 10.1 m (33.14 ft) Identify: 5.1 m( 16.73 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 6 kbps –16384 kbps |
| Day / Night | Auto(ICR)/Coulor/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes ( 4 areas ) |
| Privacy Masking | 4 areas |
| Defog | Yes |
| Audio | |
| Built-in MIC | Yes, built-in speaker |
| Audio Compression |
Yes, built-in speaker G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF ( Profile S/Profile G/Profile T); CGI; |
| User / Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 8 and later; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3 V-5 VDC |
| Alarm Output | 1 channel out: 300mA 12 VDC |
| Power | |
| Power Supply | CE-LVD: EN62368-1 |
| Power Consumption | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ122 mm × 131.9 mm (Φ4.80" × 5.19" ) |
| Net Weight | 990 g (2.18 lb) |
| Gross Weight | 1150 g (2.54 lb) |
SPRO
by
SPRO

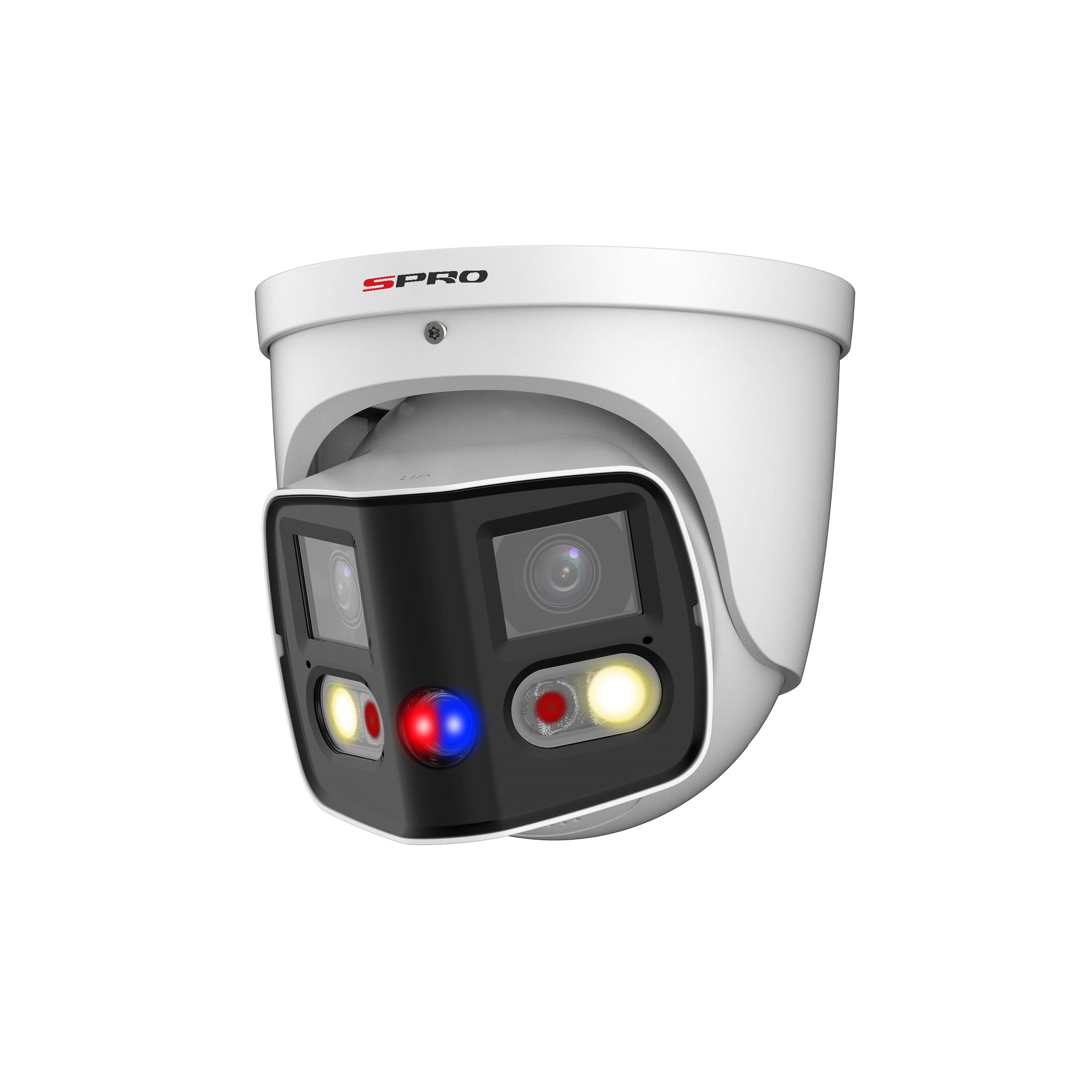

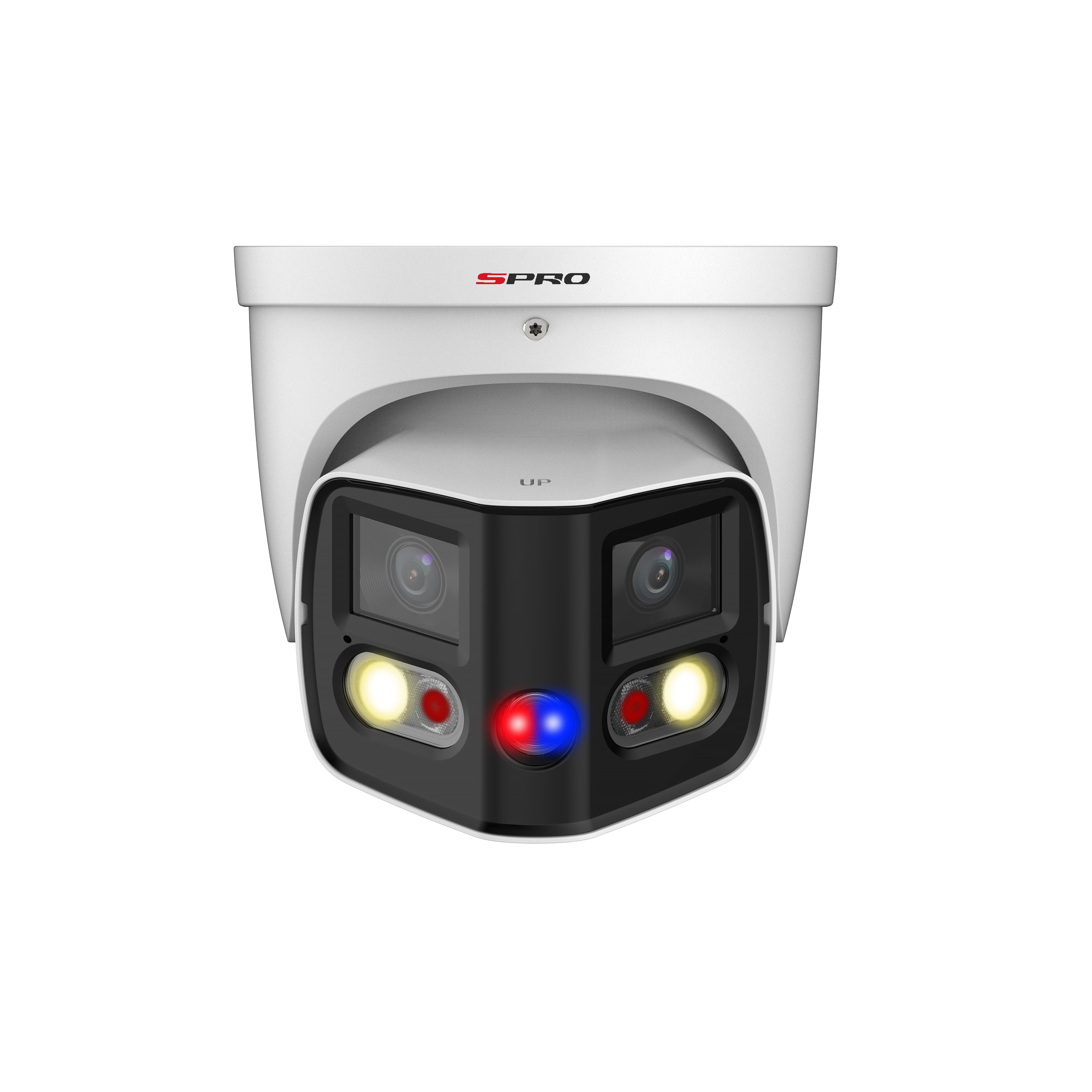

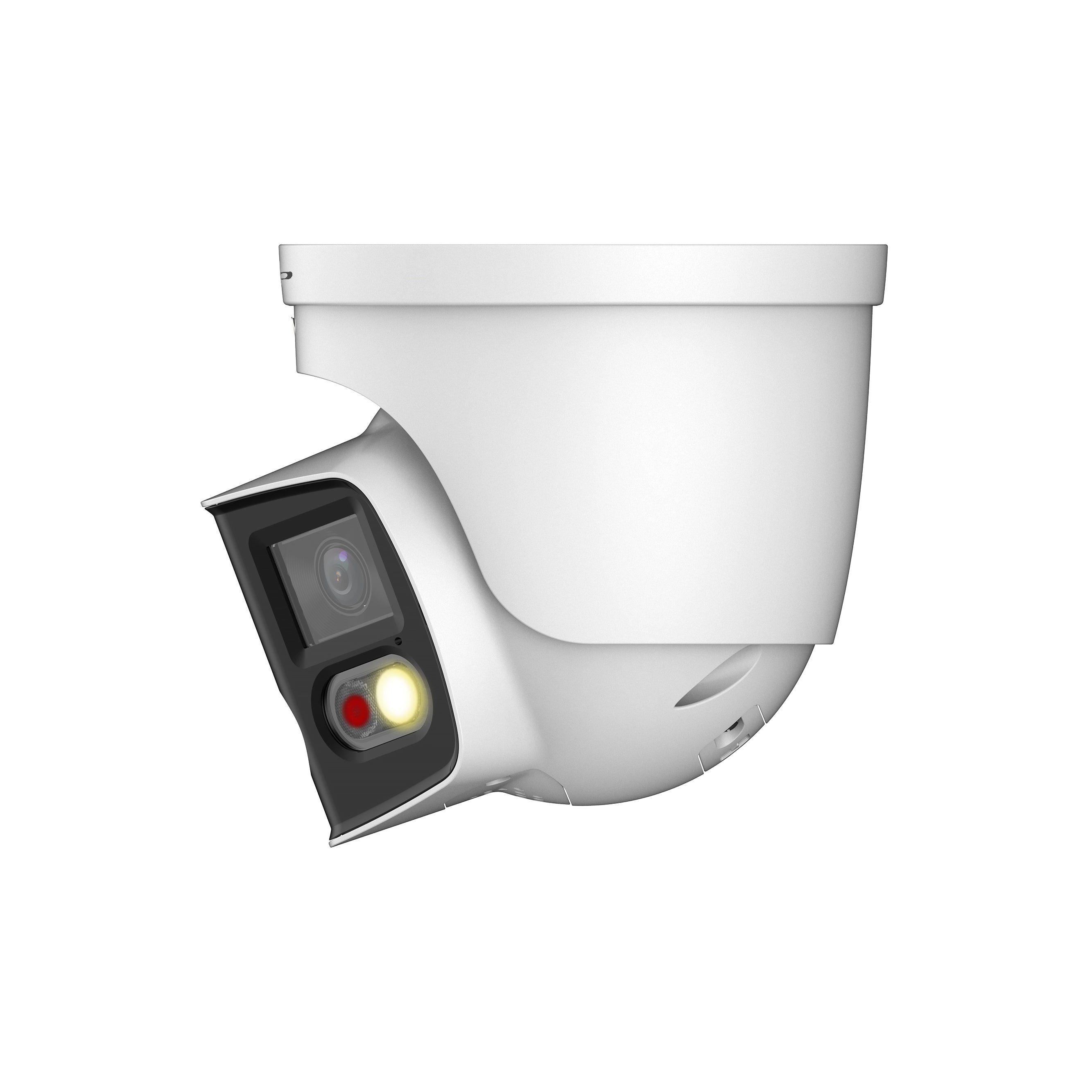

SPRO 4MP DUO IP Panoramic Camera With AI-Pro & Colour Night 2.0
