Description
Part Number: DHIPPTZ40/4XR
Brand: SPRO
Camera Resolution 4 Megapixels
IR Distance Up to 15m IR distance
Built-in Mic. Yes
Style PTZ

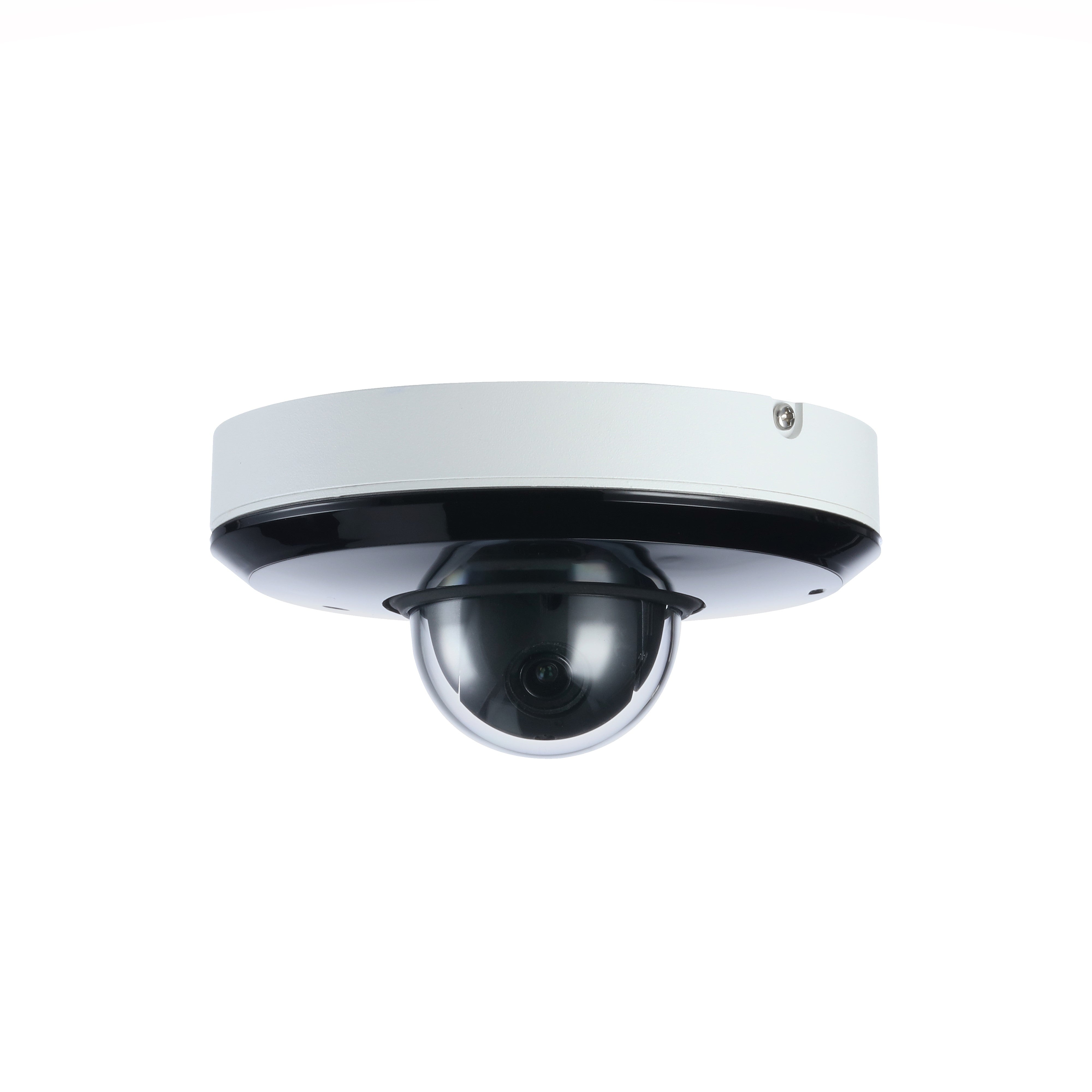

The SPRO 4MP IP Mini PTZ Camera features AI-PRO integration, providing precise insights and up to 15m IR range combined with Starlight technology. Its lightweight design makes it perfect for mounting on suspended ceilings.
This camera has 4x optical zoom, 300 presets, 8 tours and advanced features such as Face Detection, People Counting, and Perimeter Protection. The housing is IP66 rated with Ik08 vandal-resistant frame so can also be used externally if required. With 4x optical zoom and 300 presets, this camera is perfect for capturing every detail. But the benefits don't stop there - its advanced features like Face Detection, People Counting, and Perimeter Protection make it an invaluable tool in any setting. And with an IP66 rating and an Ik08 vandal-resistant frame, it can even be used outside with no worries.
Key Features
- 4 megapixel@25fps
- 2.8-12mm lens (4x zoom)
- Up to 15m IR distance (smart IR)
- Pan range : 0-355, tilt range : 5-90
- 80/s pan speed, 40 tilt speed
- Starlight technology
- 300 presets & 8 tours
- Audio : 1 in (or use built-in mic) & 1 out
- SMD plus
- Face detection & people counting
- Perimeter protection : intrusion & tripwire
- Classification of human & vehicle
- IP66 waterproof
- IK08 vandal resistance
- DC 12V/POE
| Specifications: | |
|---|---|
| Model Number | DHIPPTZ40/4XR |
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) x 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1 s-1/30,000 s |
| Scanning System | Progressive |
| Min. Illuminations | Colour: 0.005 Lux @ F1.8 B/W: 0.005 Lux @ F1.8 0Lux (IR light on) |
| Illumination Distance | 15 m (49.21 ft) |
| Illuminator On/Off Control | Zoom Prio / Manual / Smart IR |
| Illuminator Number | 3 |
| Lens | |
| Focal Length | 2.8mm-12mm |
| Max. Aperture | F1.8 - F2.7 |
| Field of View | H: 31.6°–96.9° V: 17.8°–51.4° D: 36.4°–116.2° |
| Optical Zoom | 4x |
| Focus Control | Auto / Semi-Auto / Manual |
| Close Focus Distance | 0.2m - 0.5m (0.66ft - 1.64ft) |
| Iris Control | Auto |
| Dori Distance | Detect : 147.0m (482.28ft) Observe: 58.8m (192.91ft) Recognise: 29.4m (96.46ft) Identify: 14.7 (48.23ft) |
| PTZ | |
| Pan / Tilt Range | Pan: 0°–355° / Tilt: 5°–90° |
| Manual Control Speed | Pan: 0.1°/s–70°/s / Tilt: 0.1°/s–30°/s |
| Preset Speed | Pan: 80°/s / Tilt: 40°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Speed Adjustment | Support |
| Power -off Memory | Support |
| Idle Motion | Preset / Tour |
| General Intelligence | |
| Video Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| IVS | Object Abandoned / Missing |
| Artificial Intelligence | |
| People Counting | Count people entering and exiting the area (crossing people counting); count people staying in the area (in-area people counting); display and export reports by day, week and month. |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD Plus | Support |
| Face Detection | Support |
| Video | |
| Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 × 480); CIF (352 x 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps) |
| Bit Rate Control | Variable Bit Rate / Constant Bit Rate |
| Bit Rate | H.264/H.265/MJPEG: 3 kbps–20480 kbps |
| Day / Night | Auto (ICR) / Colour / B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto / Indoor / Outdoor / Track / Manual / Sodium lamp Natural light / Street lamp |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D / 3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Electronic Image Stabilization | Support |
| Electronic Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio | |
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast / Multicast |
| User / Host | 20 |
| Storage | FTP: Micro SD card (256G); P2P |
| Browser | IE; Chrome; Firefox; Safari (No version restriction) |
| Management Software | DMSS |
| Mobile Phone | iOS / Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL62368-1+CAN/CSA C22.2,No. 62368-1 |
| Port | |
| Audio Input | 1 (Line in; bare wire or bult in Mic) |
| Audio Output | 1 |
| Power | |
| Power Supply | DC12V/1.5A±15% / PoE (802.3af) |
| Power Consumption | 3W / 8.5W (IR on) |
| Environment | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% |
| Protection | IK08; IP66; TVS 6000V lightning proof; surge protection |
| Structure | |
| Dimensions | Φ128.0 mm × 65.4 mm (5.04" × 2.57") |
| Net Weight | 0.485 kg (1.06 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
Description
Part Number: DHIPPTZ40/4XR
Brand: SPRO
Camera Resolution 4 Megapixels
IR Distance Up to 15m IR distance
Built-in Mic. Yes
Style PTZ
The SPRO 4MP IP Mini PTZ Camera features AI-PRO integration, providing precise insights and up to 15m IR range combined with Starlight technology. Its lightweight design makes it perfect for mounting on suspended ceilings.
This camera has 4x optical zoom, 300 presets, 8 tours and advanced features such as Face Detection, People Counting, and Perimeter Protection. The housing is IP66 rated with Ik08 vandal-resistant frame so can also be used externally if required. With 4x optical zoom and 300 presets, this camera is perfect for capturing every detail. But the benefits don't stop there - its advanced features like Face Detection, People Counting, and Perimeter Protection make it an invaluable tool in any setting. And with an IP66 rating and an Ik08 vandal-resistant frame, it can even be used outside with no worries.
Key Features
- 4 megapixel@25fps
- 2.8-12mm lens (4x zoom)
- Up to 15m IR distance (smart IR)
- Pan range : 0-355, tilt range : 5-90
- 80/s pan speed, 40 tilt speed
- Starlight technology
- 300 presets & 8 tours
- Audio : 1 in (or use built-in mic) & 1 out
- SMD plus
- Face detection & people counting
- Perimeter protection : intrusion & tripwire
- Classification of human & vehicle
- IP66 waterproof
- IK08 vandal resistance
- DC 12V/POE
| Specifications: | |
|---|---|
| Model Number | DHIPPTZ40/4XR |
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) x 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1 s-1/30,000 s |
| Scanning System | Progressive |
| Min. Illuminations | Colour: 0.005 Lux @ F1.8 B/W: 0.005 Lux @ F1.8 0Lux (IR light on) |
| Illumination Distance | 15 m (49.21 ft) |
| Illuminator On/Off Control | Zoom Prio / Manual / Smart IR |
| Illuminator Number | 3 |
| Lens | |
| Focal Length | 2.8mm-12mm |
| Max. Aperture | F1.8 - F2.7 |
| Field of View | H: 31.6°–96.9° V: 17.8°–51.4° D: 36.4°–116.2° |
| Optical Zoom | 4x |
| Focus Control | Auto / Semi-Auto / Manual |
| Close Focus Distance | 0.2m - 0.5m (0.66ft - 1.64ft) |
| Iris Control | Auto |
| Dori Distance | Detect : 147.0m (482.28ft) Observe: 58.8m (192.91ft) Recognise: 29.4m (96.46ft) Identify: 14.7 (48.23ft) |
| PTZ | |
| Pan / Tilt Range | Pan: 0°–355° / Tilt: 5°–90° |
| Manual Control Speed | Pan: 0.1°/s–70°/s / Tilt: 0.1°/s–30°/s |
| Preset Speed | Pan: 80°/s / Tilt: 40°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Speed Adjustment | Support |
| Power -off Memory | Support |
| Idle Motion | Preset / Tour |
| General Intelligence | |
| Video Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| IVS | Object Abandoned / Missing |
| Artificial Intelligence | |
| People Counting | Count people entering and exiting the area (crossing people counting); count people staying in the area (in-area people counting); display and export reports by day, week and month. |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD Plus | Support |
| Face Detection | Support |
| Video | |
| Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 × 480); CIF (352 x 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps) |
| Bit Rate Control | Variable Bit Rate / Constant Bit Rate |
| Bit Rate | H.264/H.265/MJPEG: 3 kbps–20480 kbps |
| Day / Night | Auto (ICR) / Colour / B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto / Indoor / Outdoor / Track / Manual / Sodium lamp Natural light / Street lamp |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D / 3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Electronic Image Stabilization | Support |
| Electronic Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Audio | |
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast / Multicast |
| User / Host | 20 |
| Storage | FTP: Micro SD card (256G); P2P |
| Browser | IE; Chrome; Firefox; Safari (No version restriction) |
| Management Software | DMSS |
| Mobile Phone | iOS / Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL62368-1+CAN/CSA C22.2,No. 62368-1 |
| Port | |
| Audio Input | 1 (Line in; bare wire or bult in Mic) |
| Audio Output | 1 |
| Power | |
| Power Supply | DC12V/1.5A±15% / PoE (802.3af) |
| Power Consumption | 3W / 8.5W (IR on) |
| Environment | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% |
| Protection | IK08; IP66; TVS 6000V lightning proof; surge protection |
| Structure | |
| Dimensions | Φ128.0 mm × 65.4 mm (5.04" × 2.57") |
| Net Weight | 0.485 kg (1.06 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
SPRO
by
SPRO
SPRO 4MP IP Mini PTZ Camera with AI-PRO
- Regular price
- £198.08
- Sale price
- £198.08
- Regular price
-
£219.99
Tax included.
