Description

Part Number:  DHIPD40/28RW/50-M-I2
Brand:  SPRO
AcuPick  Yes
SMD 3.0 (Smart Motion Detection 3.0)  Yes
ColourNight 2.0  Yes

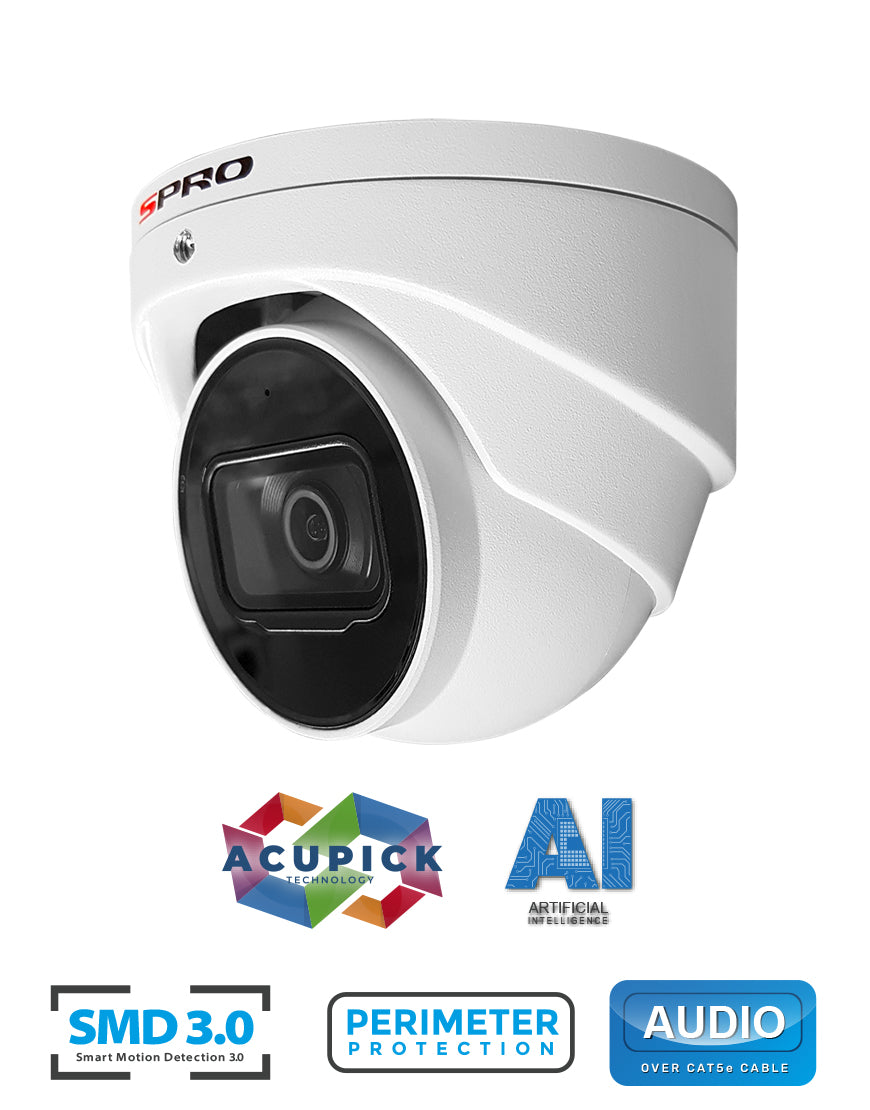

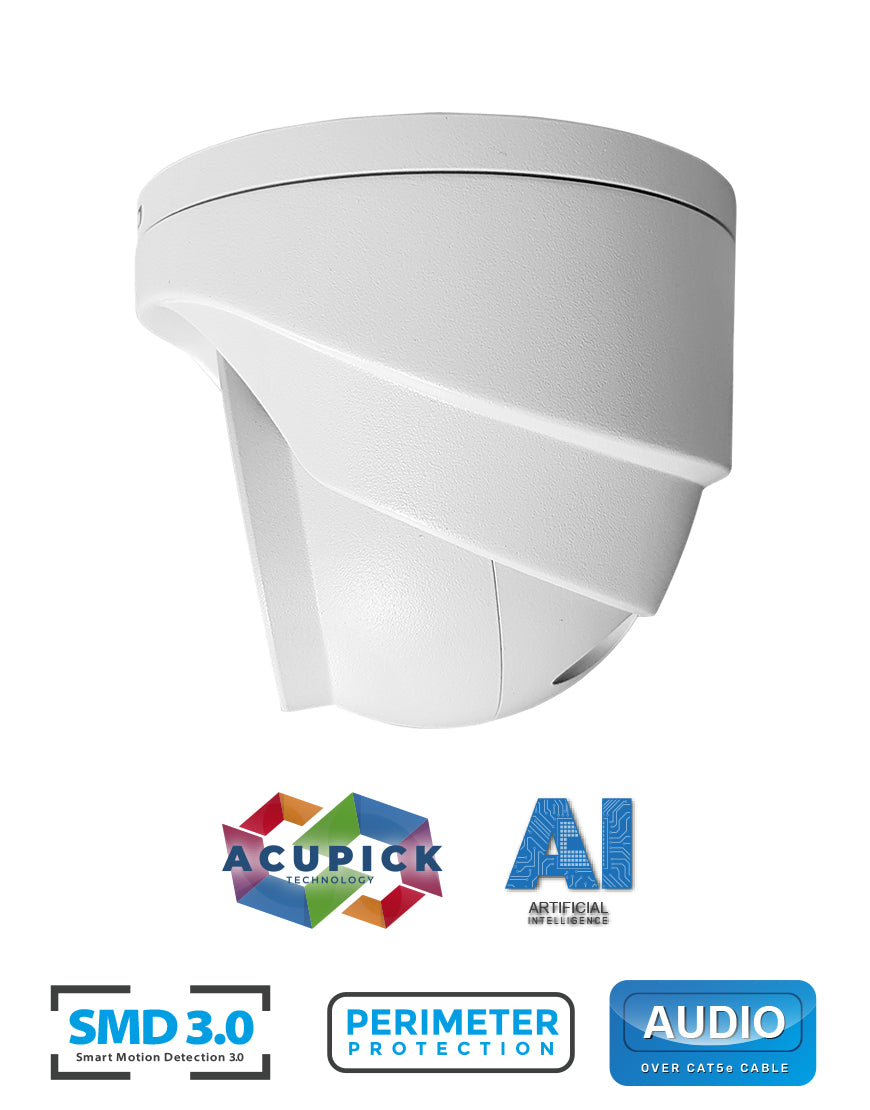

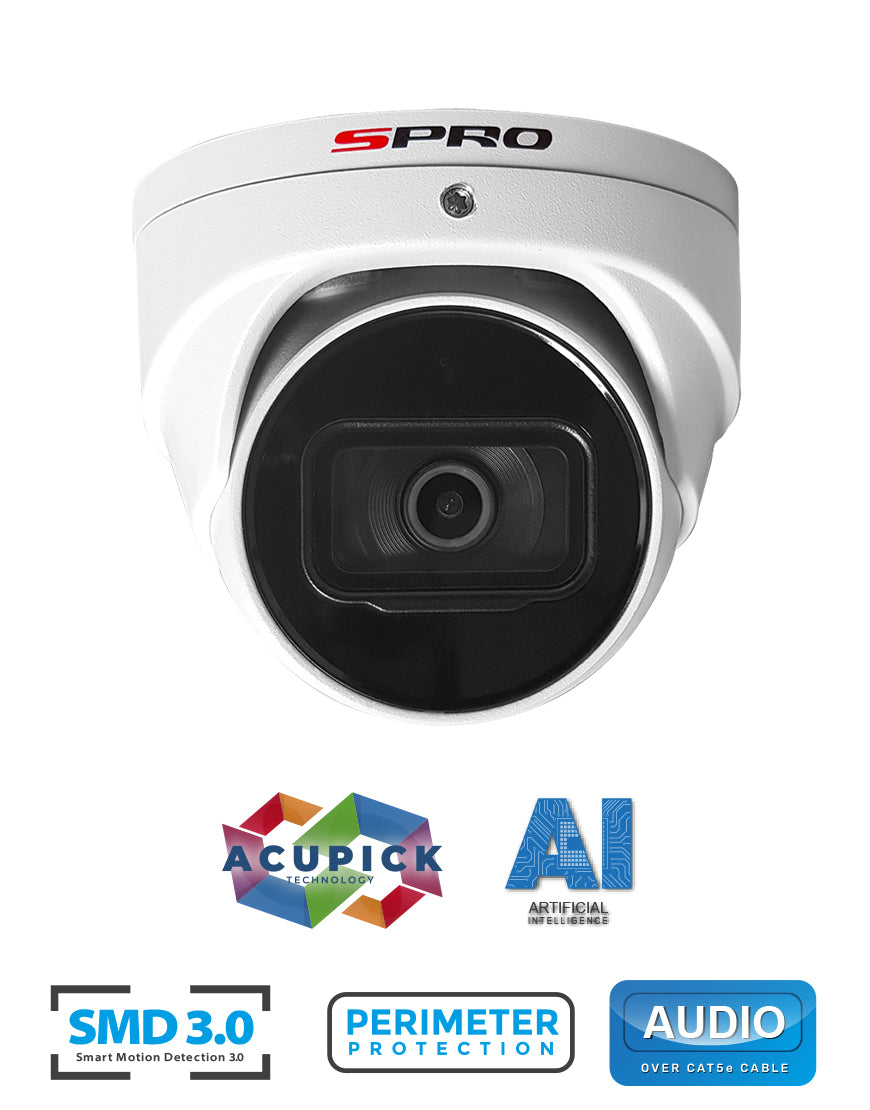

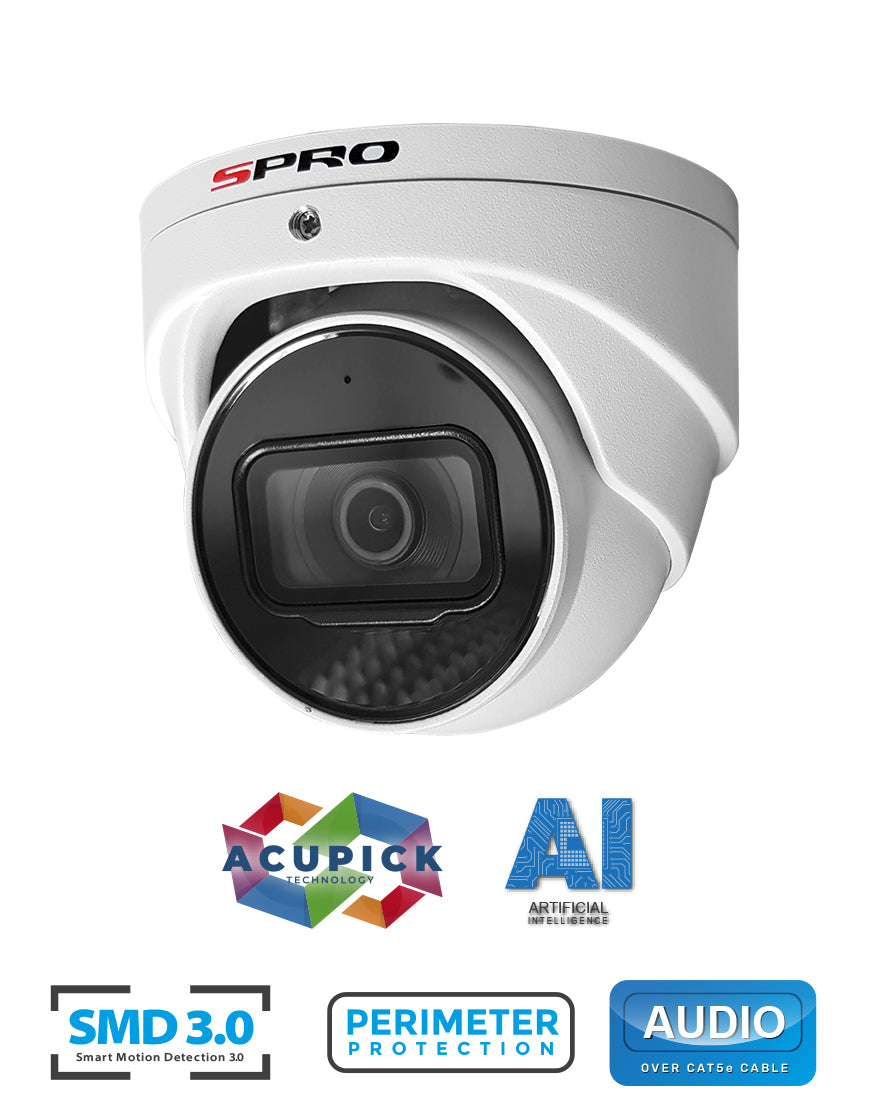

Upgrade your surveillance game with the SPRO 4MP IP Turret Camera. With advanced features and the revolutionary AcuPick technology, you can search through footage up to 99% faster. Experience crisp 4MP resolution and powerful 50m IR night vision. Trust in our industry-leading expertise.

With AI Pro technology, this camera is equipped with state-of-the-art capabilities, including up to 50 meters of IR night vision and a 2.8mm lens for optimal security monitoring. This powerful combination provides enhanced surveillance and protection for your home or business.

Key Features

  • 4-MP 1/1.8" CMOS image sensor
  • 4 MP (2688×1520) @ 25/30 fps
  • 2.8mm Lens
  • Up to 50m IR distance
  • AcuPick
  • SMD 3.0 (Smart motion detection 3.0)
  • Intrusion (human and vehicle classification)
  • Tripwire (human and vehicle classification)
  • Microphone built-in (audio over CAT5e cable)
  • 140dB WDR
  • IP67 waterproof
  • DC 12V/POE
Specifications:
Model Number DHIPD40/28RW/50-M-I2
Camera
Image Sensor 1/1.8” CMOS
Max. Resolution 2688 (H) x 1520 (V)
RAM 4GB
ROM 1GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
S/N Ratio > 56 dB
Min. Illumination 0.0007 lux@F1.6 (Colour, 30IRE)
0.0004 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)
Illumination Distance 50 m (164.04 ft) (IR)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 112°; V: 58°; D: 139°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.3 m (4.27 ft)
DORI
Distance

Lens: 2.8mm
Detect: 61.5 m
Observe: 24.6 m
Recognise: 12.3 m
Identify: 6.2 m
Intelligence
IVS Intrusion, tripwire, fast moving ( the three functions support the
classification and accurate detection of vehicle and human);
loitering detection, people gathering and parking detection
Smart Object Detection Smart abandoned object; smart missing object
SMD 3.0 Less false alarm, longer detection distance
AI SSA Yes
Face Detection Face detection; track; snapshot; snapshot optimization; optimal
face snapshot upload; face enhancement; face exposure; face
attributes extraction including 6 attributes and 8 expressions; face
snapshot set as face, one-inch photo or custom; snapshot strategies
(real-time snapshot, quality priority and optimization snapshot);
face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting report (day/
week/month/year); people counting in area and queue
management; generating and exporting report (day/week/month);
4 rules can be set for tripwire, people counting in area and queue
management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection;
track; snapshot; snapshot optimization; optimal face snapshot
upload. Motor vehicle attributes: vehicle type, vehicle colour,
vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, colour, number of people,
top type and colour, hat. Human body attributes: gender,
top/bottom type and colour, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask
and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos.
Smart Sound Detection Yes
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265+; Smart H.264+
Video Frame Rate Main stream: 2688 × 1520 (1 fps–25/30 fps) /
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity.
Stream Capability 4 streams
Resolution 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1535);
3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480);
CIF (352 × 288/352 × 240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 32 kbps–16384 kbps
H.265: 12 kbps–11008 kbps
Day / Night Auto(ICR)/Colour/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON ( 4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution
and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G:711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection;
IP conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; fast moving; abandoned object; missing object; loitering
detection; people gathering; parking detection; scene changing;
audio detection; voltage detection; external alarm; face detection;
video metadata; SMD; people counting in area; stay detection;
people counting; people number error detection; queue people
number alarm; queue time alarm; security exception
Network
Network Port RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S / Profile G / Profile T); CGI
User / Host 20 (Total bandwidth: 80M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE; Chrome ; Firefox
Management Software DMSS
Mobile Client iOS; Android;
Cyber Security Configuration encryption; trusted execution; Digest; security logs;
WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC
filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption;
generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5mA 3V-5V DC
Alarm Output 1 channel out: wet contact, 300mA 12V DC
Power
Power Supply 12 VDC/PoE (802.3af)/ePoE
Power Consumption Basic: 4.3 W (12 VDC); 5.5 W (PoE);
Max. (H.265+ WDR+ Intelligence on+IR on): 8.2 W (12 VDC); 9.7 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Material Metal
Product Dimensions 89.2 mm × Φ105.0 mm
Net Weight 500 g (1.10 lb)
Gross Weight 770 g (1.70 lb)
