About
Description
Part Number: DHD50/28LRW-4-M
Brand: SPRO
Camera Resolution 5 Megapixels
Lens Fixed Lens
IR Distance Up to 40m IR distance
Built-in Mic. Yes
Style Turret

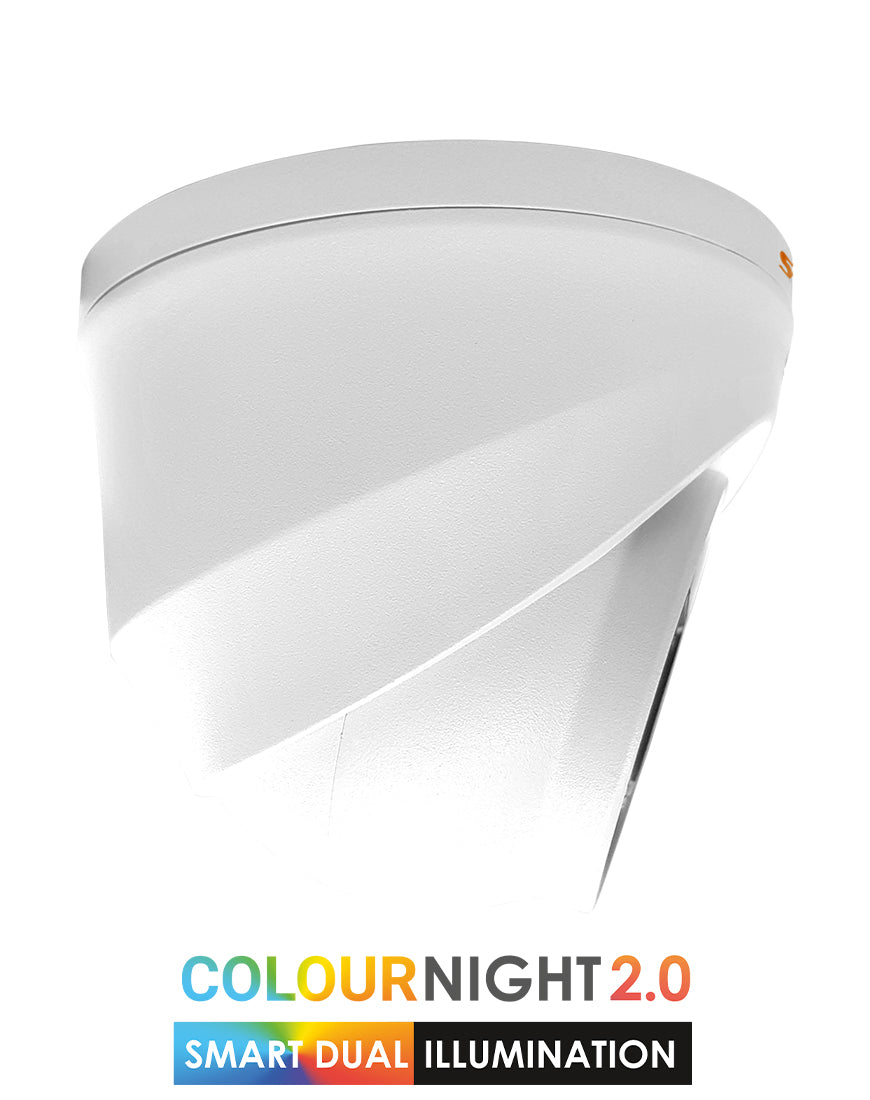

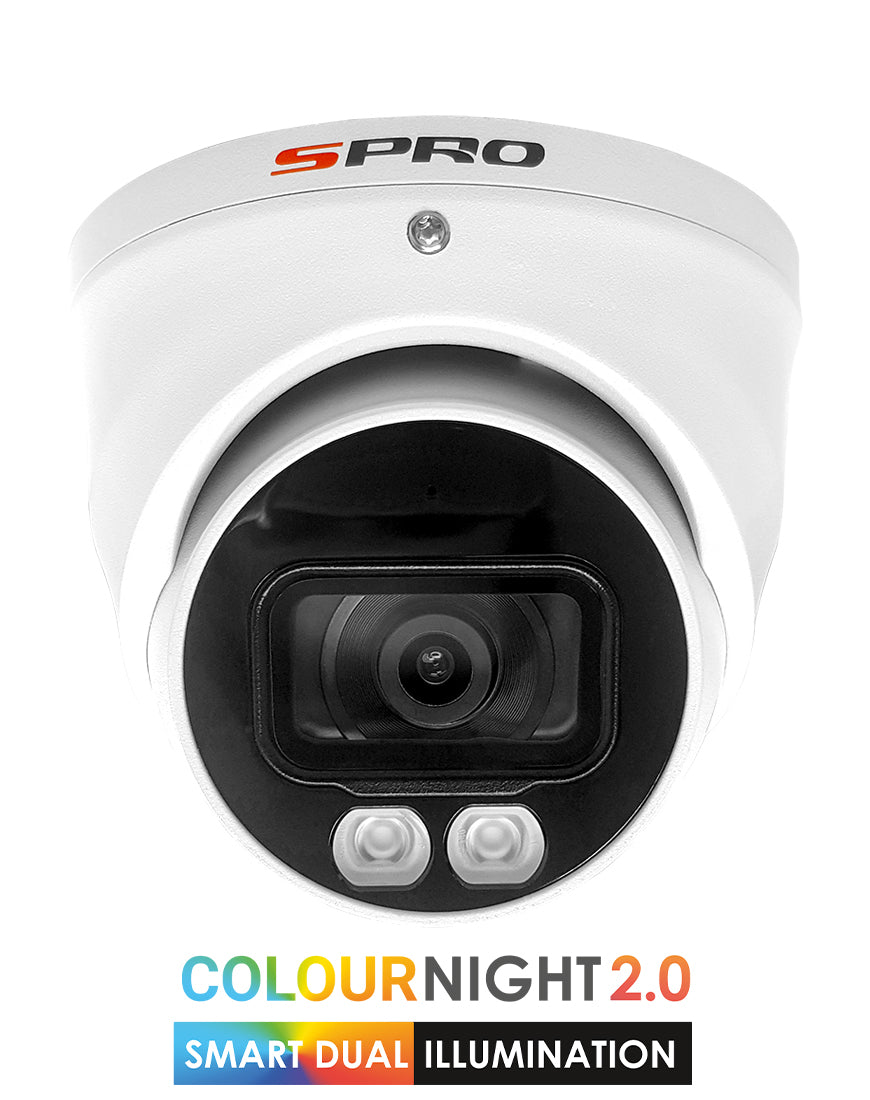

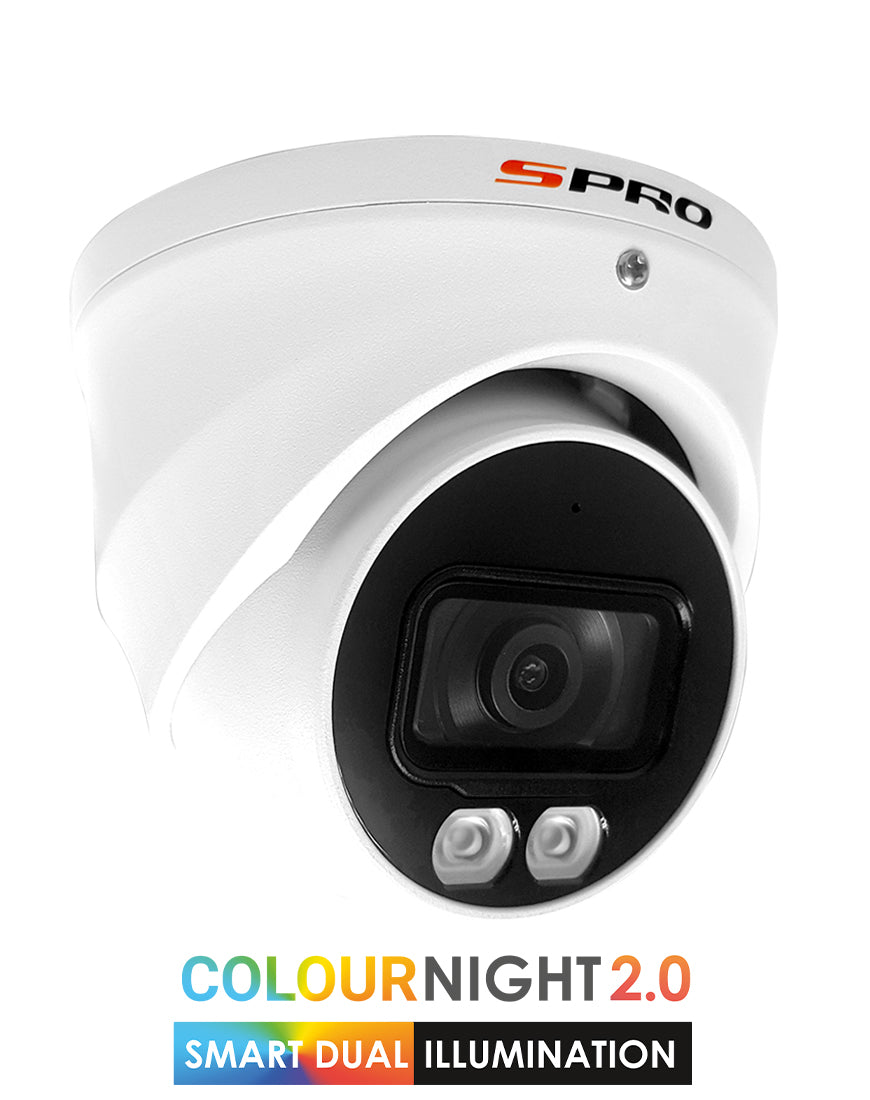

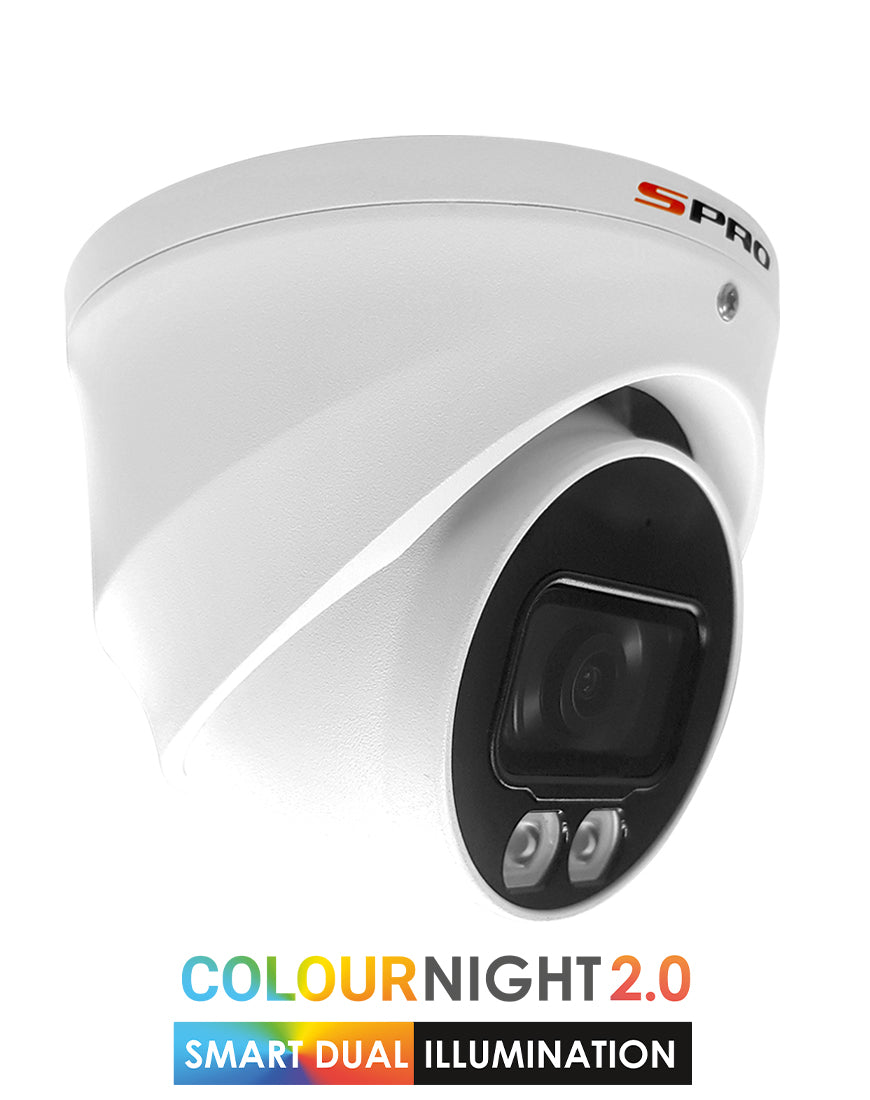

The SPRO ColourNight camera range enables the capture of full-color night images, thanks to its white light LED feature that illuminates the scene.
The next generation of SPRO ColourNight cameras includes built-in IR, allowing for standard black and white night images all night long. This feature allows the white light LED to only turn on when motion is detected, creating a security light effect. However, the cameras can also operate in the same manner as the previous generation, with a continuous white light all night if desired.
This camera is compatible with the following DVR models:
DHDVR06-B5-V3
DHDVR12-B5-V3
DHDVR24-B5-V3
DHDVR32-B5
DHDVR06-B6-V2
DHDVR12-B6-V2
DHDVR24-B6
DHDVR24-B6-2H-V2
DHDVR32-B6
| Specifications: | |
|---|---|
| Model Number | DHD50/28LRW-4-M |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) x 1620 (V) |
| Pixel | 5 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s |
| Min. Illumination | 0.001 lux@F1.0 (Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >65dB |
| Illumination Distance | 40 m (98.43 ft) (IR); 40 m (98.43 ft) (Warm light) |
| Illuminator On/Off control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1(Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Lenght | 2.8mm; 3.6mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8mm:H:111° V:57° D:131° 3.6mm: H:92° V:47° D:104° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance |
Detect: 66.0m Observe: 26.4m Recognize: 13.2m Identify: 6.6m |
| Video | |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Colour/B/W |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| White Balance | Auto; Area White Balance |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Defog | Electronic defog |
| Digital Zoom | 4x |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Certification | |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Video Intput | One channel built-in MIC |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power consumption | Max 5.7 W (12 VDC, LED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Operating Humidity | < 95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (-40 °F to 140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69") |
| Net Weight | 0.49 kg (1.08lb) |
| Gross Weight | 0.66 kg (1.46 lb) |
| Installation | Wall mount; ceilling mount; vertical pole mount |
