About
Part Number: DHD50/28RG-T-M-POC
Brand: SPRO
Camera Resolution 5 Megapixels
Lens Fixed Lens
IR Distance Up to 50m IR distance
Protocol CVI
Built-in Mic. Yes
POC Yes
Ingress Protection IP67
Style Turret

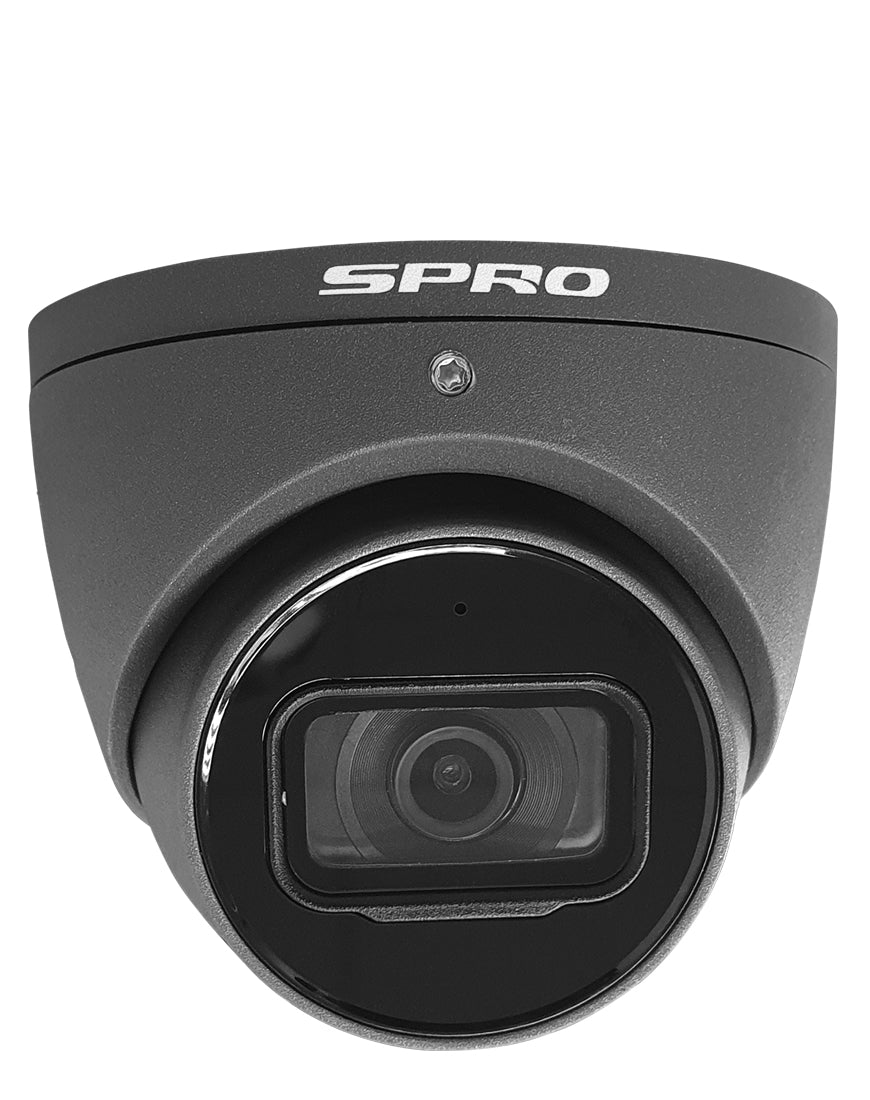

Introducing the SPRO 5MP HDCVI Fixed Lens Turret, featuring a built-in microphone for easy audio over co-ax usage. With an impressive 50m IR distance, this camera surpasses standard eyeball domes. Upgrade your surveillance with this efficient and high-quality model.
Eliminate the need for multiple cables by utilizing POC, enabling power and audio to be transmitted through a single co-ax cable to the compatible DVR, saving both time and money.
Audio over co-ax allows the camera to transmit audio picked up from its built-in microphone and transmit this over the came co-ax cable as the video transmission. An audio over co-ax compatible recorder is required to fully utilise this function and would allow audio on each channel an audio over co-ax camera is on. Easily add audio to your surveillance system with SPRO 5MP HDCVI Fixed Lens Turret With Built-In Microphone and POC. This feature allows for audio transmission through the co-ax cable, allowing for a more comprehensive monitoring experience. To make the most out of this function, be sure to use an audio over co-ax compatible recorder, which will enable audio on each channel that an audio over co-ax camera is on.
Experience full compatibility with the DHD50/28RG-T-M-POC model and the DHDVR06-B4 / DHDVR12-B4-V2 & DHDVR24-B4-V2 recorders. This model is designed specifically for these recorders, ensuring optimal performance and functionality.
Specifications: | |
---|---|
Model Number | DHD50/28RG-T-M-POC |
Image Sensor | 1/3" CMOS |
Effective Pixels | 2592(H)×1944(V), 5MP |
Scanning System | Progressive |
Electronic Shutter Speed | 1/25~1/100000s |
Min. Illumination | 0.03Lux/F1.9, 30IRE, 0Lux IR on |
S/N Ratio | More than 65dB |
Max. IR distance | Up to 50m |
IR On/Off Control | Auto/ Manual |
IR LEDs | 1 |
Lens | |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 2.8mm |
Max Aperture | F1.9 |
Angle of View | H:78° |
Focus Control | N/A |
Pan / Tilt / Rotation | |
Pan/Tilt/Rotation | Pan:0°~360° / Tilt: 0° ~ 78° / Rotation: 0° ~ 360° |
Video | |
Resolution | 5MP (2592x1944) |
Frame Rate | 25@5MP, 25fps@1080P, 25fps@720P |
Video Output | 1-channel BNC HD-CVI video output |
Day/Night | Auto (ICR) / Manual |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
Gain Control | AGC |
Noise Reduction | 2D |
White Balance | Auto / Manual |
Smart IR | Auto / Manual |
Interface | |
Audio Interface | Built-in Mic (Directional) |
General | |
Power Supply | DC12V±25% |
Power Consumption | Max 4.6W (12V DC, IR on) |
Operating Conditions | -40°C ~ +60°C / Less than 90% RH |
Strorage Conditions | -40°C ~ +60°C / Less than 90% RH |
Ingress Protection | IP67 |
Casing | Aluminium |
Dimensions | Φ106mm×93.7mm (Φ4.17"×3.69") |
Gross Weight | 0.61kg |
