About
Description
Part Number: DHIPD50/28RV-W
Brand: SPRO
Camera Resolution 5 Megapixels
Lens Fixed Lens
Codec recording Smart H.265+ Smart H.264+
IR Distance Up to 30m IR distance
Ingress Protection IP67
Style Vandal Resistant Dome

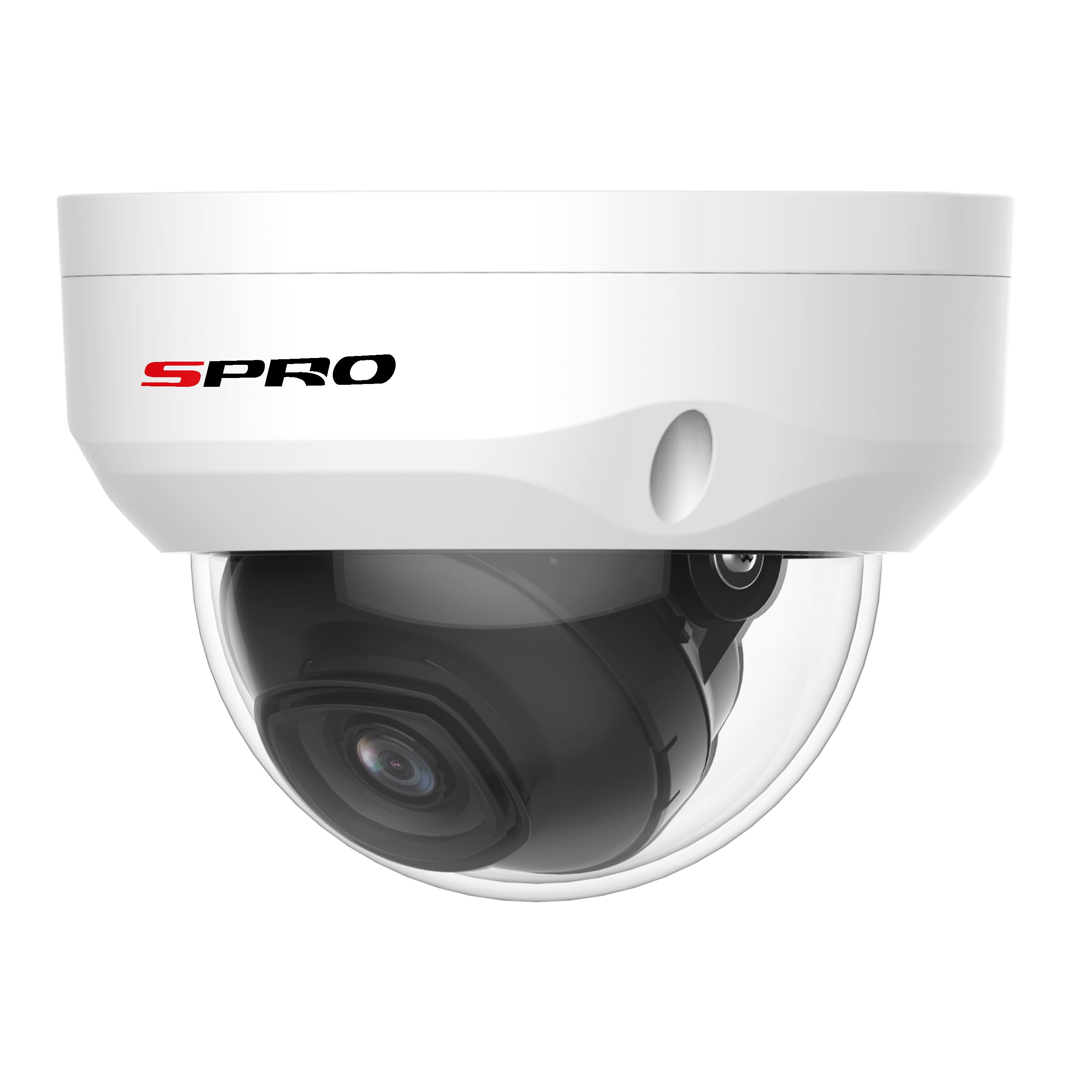

The SPRO 5MP IP Vandal Resistant Dome Camera is a professional surveillance tool for both indoor and outdoor use. With IP67 waterproofing and IK10 impact resistance, it offers maximum durability. Its fixed 5MP lens and 30m IR for night vision ensure clear and accurate footage. Its vandal-resistant design ensures protection against tampering.
| Specifications: | |
|---|---|
| Model Number | DHIPD50/28RV-W |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| ROM | 16 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.03 Lux@F2.0 (Colour, 30 IRE); 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illumination On/Off Control | Auto; Manual |
| Illumination Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° - Tilt: 0°–65° - Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max Aperture | 2.0 |
| Field of View | 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) |
| DORI Distance |
Detect: 56 m (183.73 ft) | Observe: 22.4 m (73.49 ft) Recognise: 11.2 m (36.75 ft) | Identify: 5.6 m(18.37 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution |
2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR) / Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (ROI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone |
| User/Host | 6 (total bandwidth: 48M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certifications | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 1.9W (12V DC); 2.2W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.5W (12V DC); 5W (PoE) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 81 mm × Φ109.9 mm (3.19" × Φ4.33") |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.49 kg (1.08 lb) |
