About

Description

Part Number:  DHIPD50/28LRG/30-D-V4
Brand:  SPRO
Camera Resolution  5 Megapixels
Lens  Fixed Lens
Codec recording  H.265
IR Distance  Up to 30m IR distance
LED Distance  Up to 30m LED distance
Built-in Mic.  Yes
Speaker Built-in  Yes
Siren Built-in  Yes
2 Way Audio  Microphone & Speaker Built-in
Audio over CAT5e  Yes
Active Deterrence  Yes
Colour Night  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
WDR  120dB

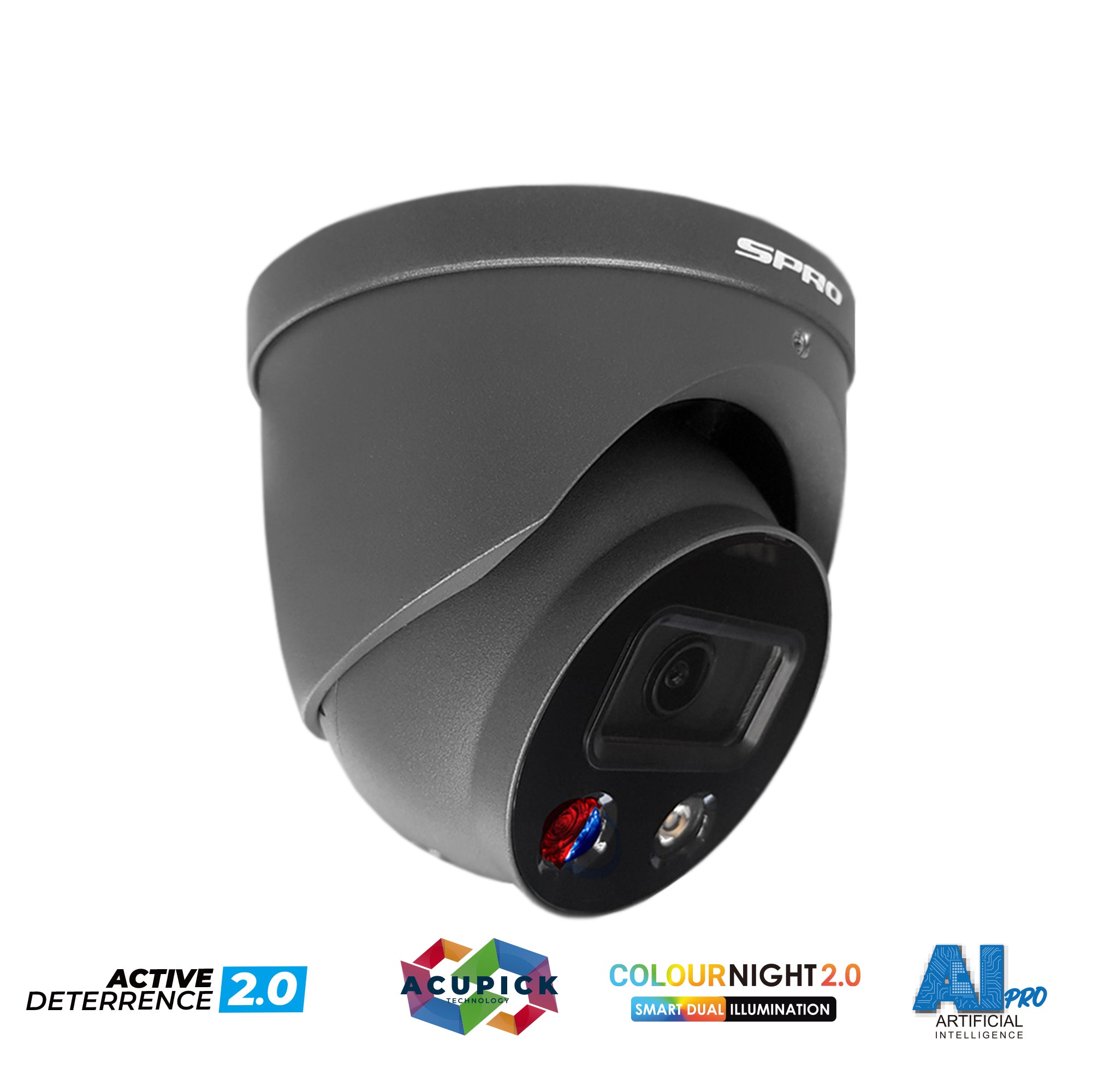

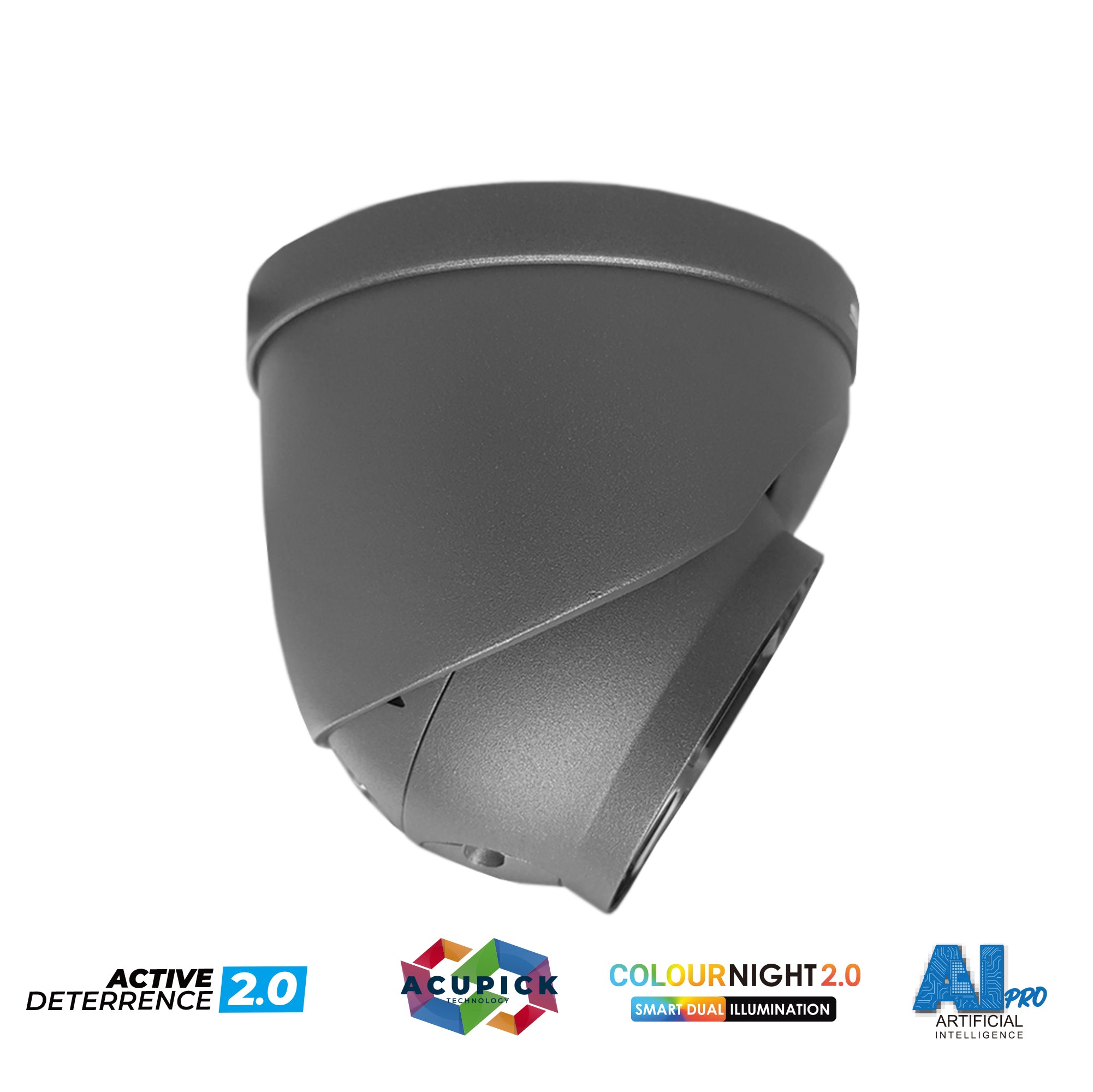

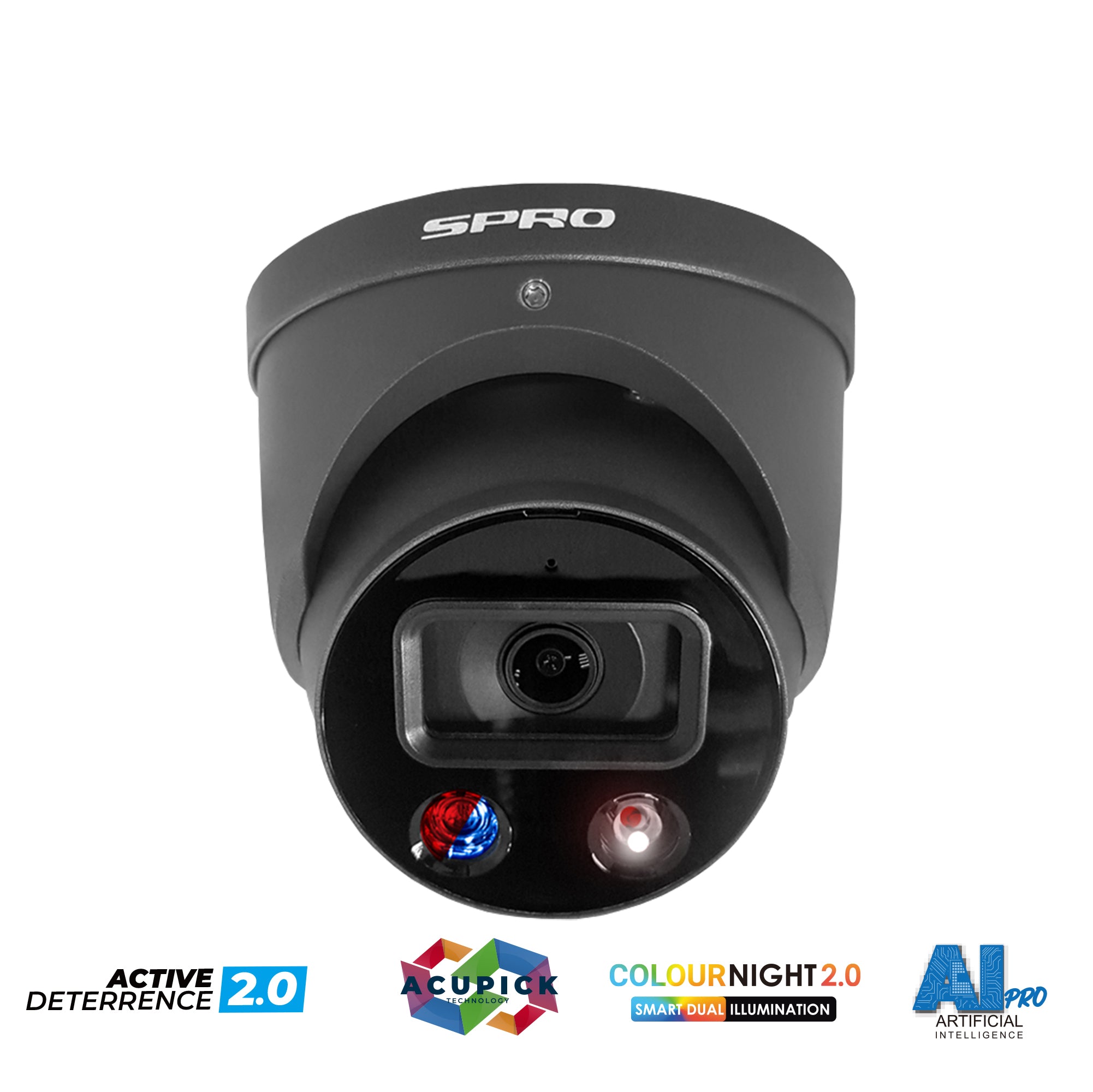

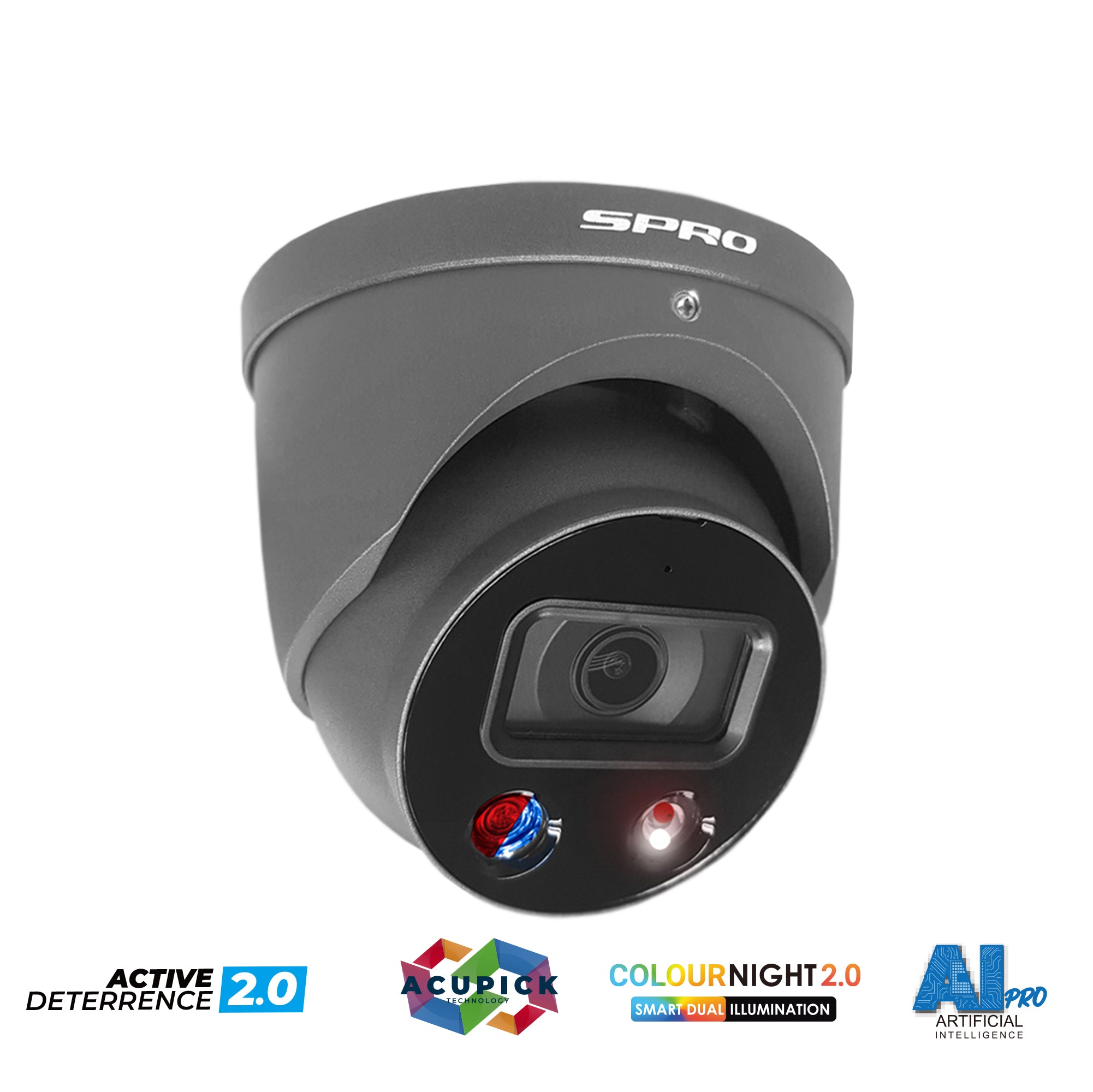

Style  Turret
ColourNight 2.0  Yes

Featuring a cutting-edge two-way audio system with a built-in speaker and pre-recorded messages and red and blue flashing lights for enhanced security measures, the SPRO Smart Dual Illumination Active Deterrence camera series is meticulously crafted to proactively deter crime.

Not only do these cameras redefine nighttime surveillance, but also thanks to AcuPick and Colour Night 2.0 technology, they capture vivid, full-color images in low-light conditions. The innovative addition of white light LEDs further guarantees optimal scene illumination.

Key Features:

  • 5 megapixel
  • H.265
  • 2.8mm Lens
  • Up to 30m LED distance (smart LED)
  • Up to 30m IR distance (smart LED)
  • SMD 4.0 (Smart motion detection)
  • Intrusion (human & vehicle classification)
  • Tripwire (human & vehicle classification)
  • Two-way-audio
  • Microphone built-in (audio over CAT5e cable)
  • 120dB WDR
  • IP67 waterproof
  • DC 12V/POE
Specifications:
Model Number DHIPD50/28LRG/30-D-V4
Image Sensor 1/2.7” CMOS
Effective Pixels 2960 (H) x 1668 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Colour, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ＞56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto / Manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/ Tilt/ Rotation Range Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8mm
Field of View Horizontal: 97°; vertical: 70°; diagonal: 128°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
DORI Distance Detect: 66 m
Observe: 26.4 m
Recognise: 13.2 m
Identify: 6.6 m
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
SMD 3.0 Less false alarm, longer detection distance.
Intelligent Search Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos
AI SSA Adopt deep learning algorithms to adjust the parameters of
the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the
sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 Streams
Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 32kbps - 8192 kbps;
H.265: 12kbps-8192 kbps
Day/Night Auto (ICR)/Colour/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto / Natural / Street Lamp / Outdoor / Manual / regional custom
Gain Control Auto/ Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
resolution and lower)
Mirror Yes
Privacy Masking 8 Areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in dual Speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP
conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; scene changing; audio detection; voltage detection;
external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption;
Digest; WSSE; account lockout; security logs; IP/MAC filtering;
Generation and importing of X.509 certification; syslog; HTTPS; 802.1x;
trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S;Profile G;Profile T); CGI
Max. User Access 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256Gb); NAS
Web Viewer IE: IE8/9/11; Chrome; Firefox
Management Software DMSS
Smart Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
General
Power Supply DC12V, POE
Power Consumption Basic: 3.7W (12 VDC); 4.8W (PoE)
Max. (pulling stream+warning light+speaker+warm light on):
8.3W (DC12 V) 8.8W (POE)
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Ingress Protection IP67
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
Net Weight 754g
Gross Weight 915g
