About

Description

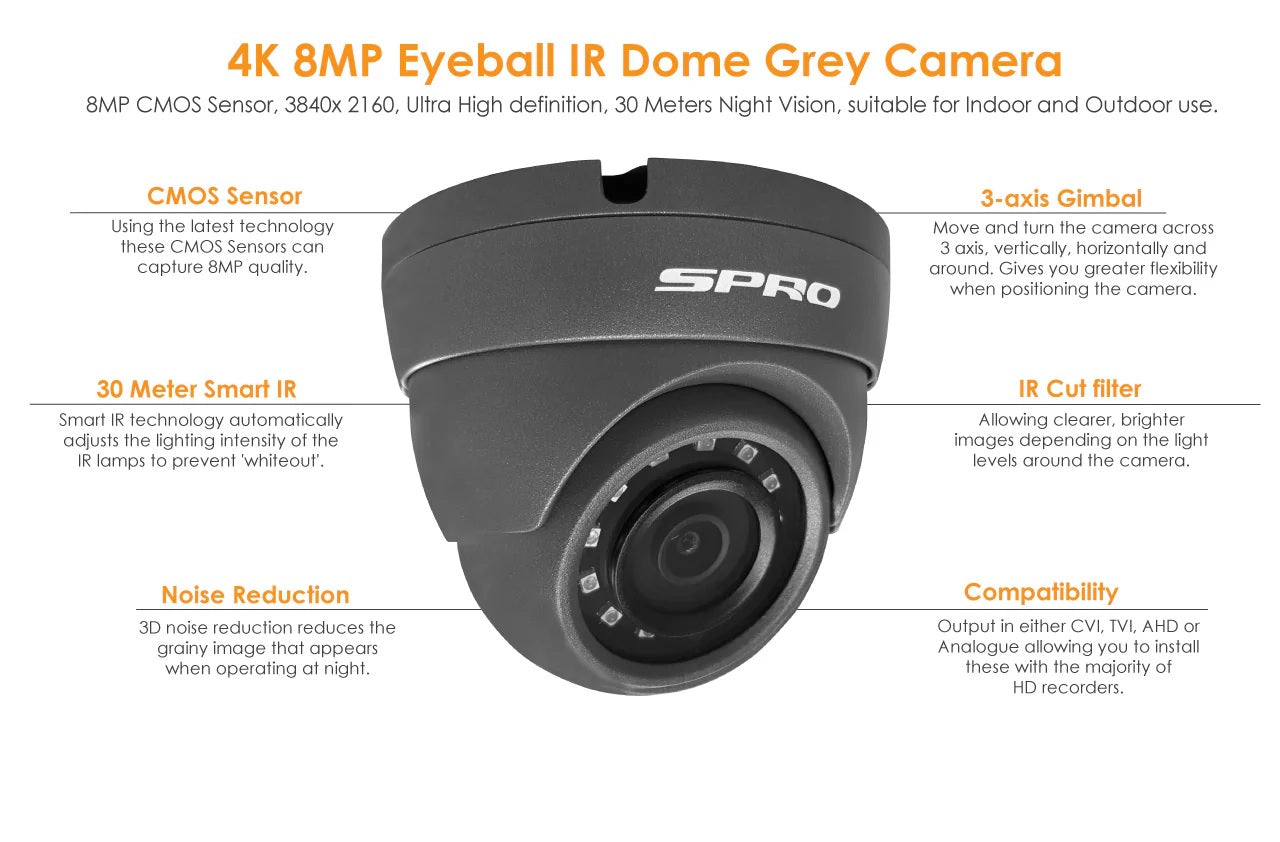

The SPRO 8MP 4IN1 Fixed Lens Dome features an 8MP high-resolution camera for crystal-clear imaging. With a 2.8mm fixed lens that effectively covers a wide area, installation is simplified.

This camera boasts an impressive 30-metre IR distance and advanced Smart IR technology, making it ideal for use in low-light conditions. It also supports 4in1 video output (TVI/AHD/CVI/CVBS), allowing for seamless integration with a variety of systems. Additionally, it has achieved an IP67 waterproof rating, making it suitable for both indoor and outdoor environments.

This camera prioritizes core functionality, making it a dependable option for simple security.

Specifications:
Model Number DHD80/28RG/30M-4
Image Sensor 1/2.7 inch CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed 1/25s–1/100000s
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Max. IR LEDs Length Distance up to 30m
IR On/Off Control Auto/ Manual
IR LEDs 12
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8mm
Max Aperture F2.0
Angle of View 125° x 105° x 56° (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance 1.0 m (3.3 ft)
DORI Distance Detect: 74.7 m
Observe: 29.9 m
Recognize: 14.9 m
Identify: 7.5 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan:0˚~360˚ / Tilt: 0° ~ 78° / Rotation: 0° ~ 360°
Video
Resolution 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440);
960H (960× 576/ 960 × 480)
Video Frame Rate CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps;
AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
Day/Night Auto switch by ICR
BLC Mode BLC / HLC / DWDR
WDR DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D & 3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Port
Audio Port N/A
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
General
Power Supply DC12V±30%
Power Consumption Max 4.3W (12V DC, IR on)
Operating Conditions -40°C ~ +60°C / Less than 95% RH
Strorage Conditions -40°C ~ +60°C / Less than 95% RH
Protection Grade IP67
Casing Metal throughout the whole casing
Dimensions Φ93.4mm × 79.4mm (Φ3.68" × 3.13")
Net Weight 0.27 Kg (0.60lb)
Gross Weight 0.35 Kg (0.77lb)

Description

The SPRO 8MP 4IN1 Fixed Lens Dome features an 8MP high-resolution camera for crystal-clear imaging. With a 2.8mm fixed lens that effectively covers a wide area, installation is simplified.

This camera boasts an impressive 30-metre IR distance and advanced Smart IR technology, making it ideal for use in low-light conditions. It also supports 4in1 video output (TVI/AHD/CVI/CVBS), allowing for seamless integration with a variety of systems. Additionally, it has achieved an IP67 waterproof rating, making it suitable for both indoor and outdoor environments.

This camera prioritizes core functionality, making it a dependable option for simple security.

Specifications:
Model Number DHD80/28RG/30M-4
Image Sensor 1/2.7 inch CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed 1/25s–1/100000s
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Max. IR LEDs Length Distance up to 30m
IR On/Off Control Auto/ Manual
IR LEDs 12
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8mm
Max Aperture F2.0
Angle of View 125° x 105° x 56° (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance 1.0 m (3.3 ft)
DORI Distance Detect: 74.7 m
Observe: 29.9 m
Recognize: 14.9 m
Identify: 7.5 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan:0˚~360˚ / Tilt: 0° ~ 78° / Rotation: 0° ~ 360°
Video
Resolution 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440);
960H (960× 576/ 960 × 480)
Video Frame Rate CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps;
AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
Day/Night Auto switch by ICR
BLC Mode BLC / HLC / DWDR
WDR DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D & 3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Port
Audio Port N/A
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
General
Power Supply DC12V±30%
Power Consumption Max 4.3W (12V DC, IR on)
Operating Conditions -40°C ~ +60°C / Less than 95% RH
Strorage Conditions -40°C ~ +60°C / Less than 95% RH
Protection Grade IP67
Casing Metal throughout the whole casing
Dimensions Φ93.4mm × 79.4mm (Φ3.68" × 3.13")
Net Weight 0.27 Kg (0.60lb)
Gross Weight 0.35 Kg (0.77lb)
