About
Description
Part Number: DHD80/28RG/30M-4
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
IR Distance Up to 30m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Ingress Protection IP67
Style Dome
Experience crystal-clear imaging with the SPRO 8MP 4in1 Fixed Lens Dome Camera. Its impressive 8MP high-resolution camera and 2.8mm fixed lens effectively cover a wide area for easy installation.
Featuring a 30-meter IR distance and Smart IR technology, this camera performs exceptionally well in low light conditions. Its 4in1 video output (TVI/AHD/CVI/CVBS) allows for seamless integration with different systems. The IP67 rating for waterproofing makes it suitable for use in both indoor and outdoor settings.
This camera prioritizes core functionality, making it a dependable option for basic security needs.
Click below to find out more.
| Specifications: | |
|---|---|
| Model Number | DHD80/28RG/30M-4 |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 3840(H)×2160(V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/25s–1/100000s |
| Min. Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Max. IR LEDs Length | Distance up to 30m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 12 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F2.0 |
| Angle of View | 125° x 105° x 56° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.0 m (3.3 ft) |
| DORI Distance | Detect: 74.7 m Observe: 29.9 m Recognize: 14.9 m Identify: 7.5 m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 78° / Rotation: 0° ~ 360° |
| Video | |
| Resolution | 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960× 576/ 960 × 480) |
| Video Frame Rate | CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H |
| Day/Night | Auto switch by ICR |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D & 3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Port | |
| Audio Port | N/A |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | DC12V±30% |
| Power Consumption | Max 4.3W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C / Less than 95% RH |
| Strorage Conditions | -40°C ~ +60°C / Less than 95% RH |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |

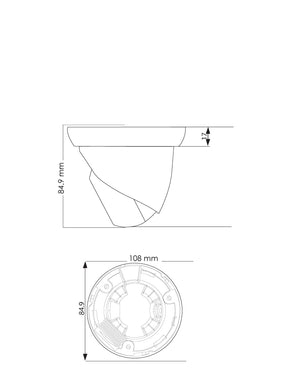

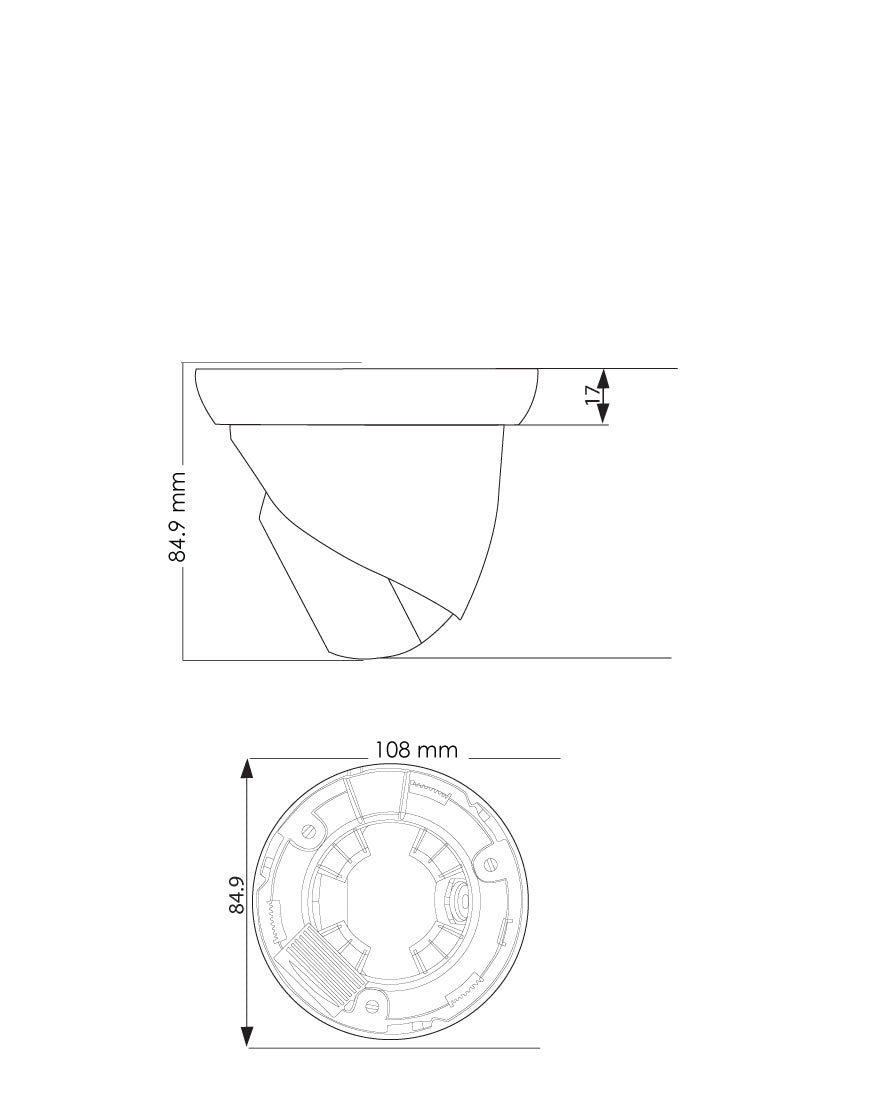

| Dimensions | Φ93.4mm × 79.4mm (Φ3.68" × 3.13") |
| Net Weight | 0.27 Kg (0.60lb) |
| Gross Weight | 0.35 Kg (0.77lb) |
Description
Part Number: DHD80/28RG/30M-4
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
IR Distance Up to 30m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Ingress Protection IP67
Style Dome
Experience crystal-clear imaging with the SPRO 8MP 4in1 Fixed Lens Dome Camera. Its impressive 8MP high-resolution camera and 2.8mm fixed lens effectively cover a wide area for easy installation.
Featuring a 30-meter IR distance and Smart IR technology, this camera performs exceptionally well in low light conditions. Its 4in1 video output (TVI/AHD/CVI/CVBS) allows for seamless integration with different systems. The IP67 rating for waterproofing makes it suitable for use in both indoor and outdoor settings.
This camera prioritizes core functionality, making it a dependable option for basic security needs.
Click below to find out more.
| Specifications: | |
|---|---|
| Model Number | DHD80/28RG/30M-4 |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 3840(H)×2160(V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/25s–1/100000s |
| Min. Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Max. IR LEDs Length | Distance up to 30m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 12 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F2.0 |
| Angle of View | 125° x 105° x 56° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.0 m (3.3 ft) |
| DORI Distance | Detect: 74.7 m Observe: 29.9 m Recognize: 14.9 m Identify: 7.5 m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 78° / Rotation: 0° ~ 360° |
| Video | |
| Resolution | 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960× 576/ 960 × 480) |
| Video Frame Rate | CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H |
| Day/Night | Auto switch by ICR |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D & 3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Port | |
| Audio Port | N/A |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | DC12V±30% |
| Power Consumption | Max 4.3W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C / Less than 95% RH |
| Strorage Conditions | -40°C ~ +60°C / Less than 95% RH |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Dimensions | Φ93.4mm × 79.4mm (Φ3.68" × 3.13") |
| Net Weight | 0.27 Kg (0.60lb) |
| Gross Weight | 0.35 Kg (0.77lb) |
My Store
by
My Store
SPRO 8MP 4IN1 Fixed Lens Eyeball Dome Camera
- Regular price
- £33.66
- Sale price
- £33.66
- Regular price
-
£39.99
Tax included.
