Description

Part Number:  DHIPQ80/28LRW/30-D-V2
Brand:  SPRO
Camera Resolution  8 Megapixels
Siren Built-in  Yes
2 Way Audio  Microphone & Speaker Built-in
Active Deterrence  Yes
Style  Bullet
ColourNight 2.0  Yes

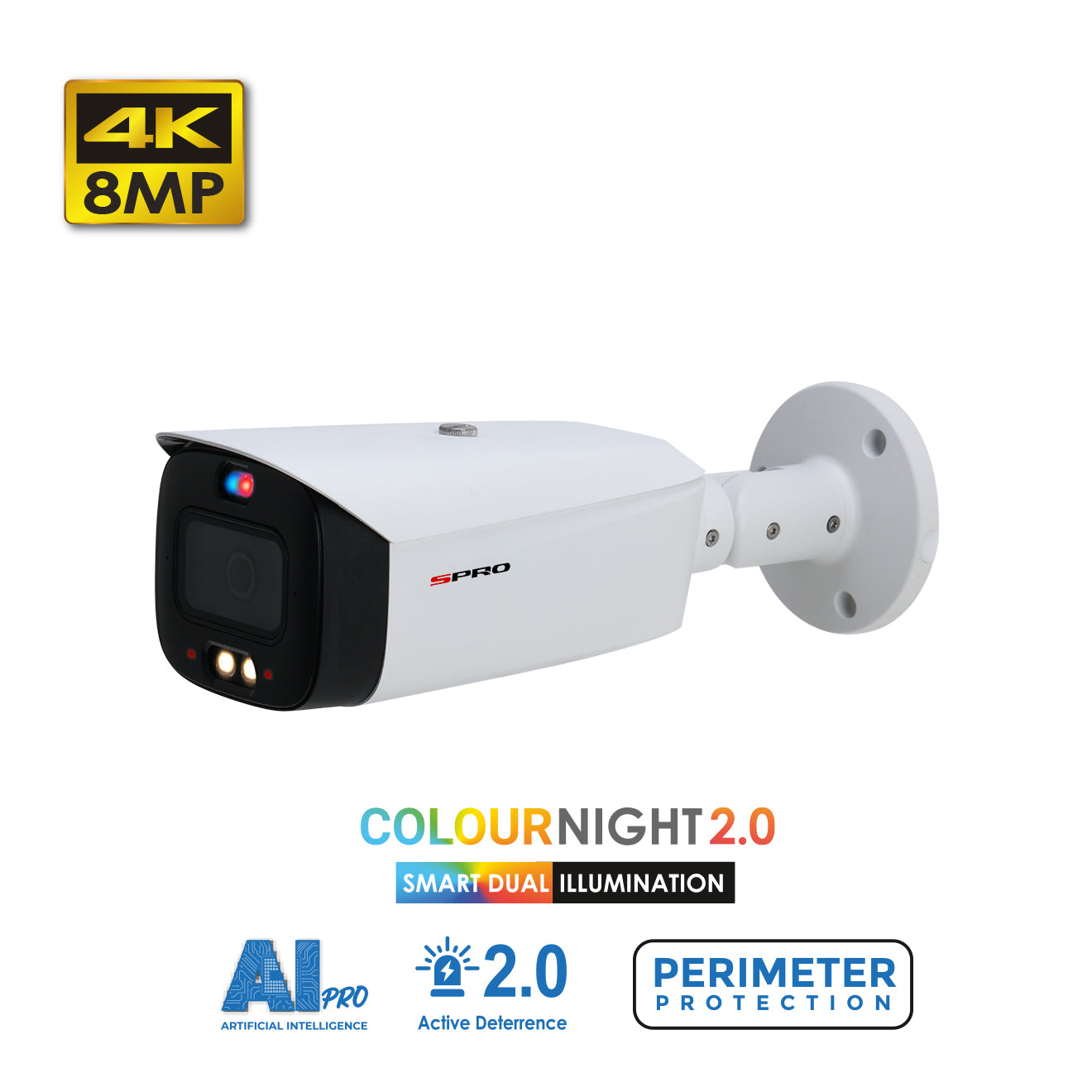

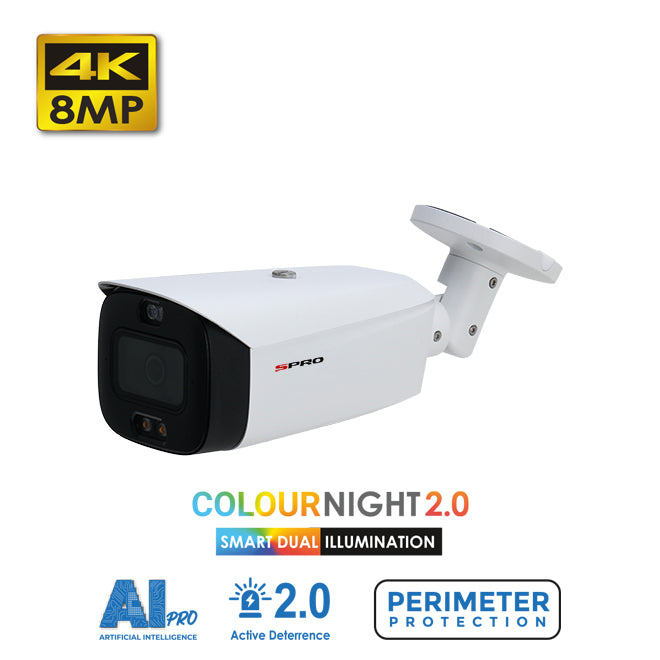

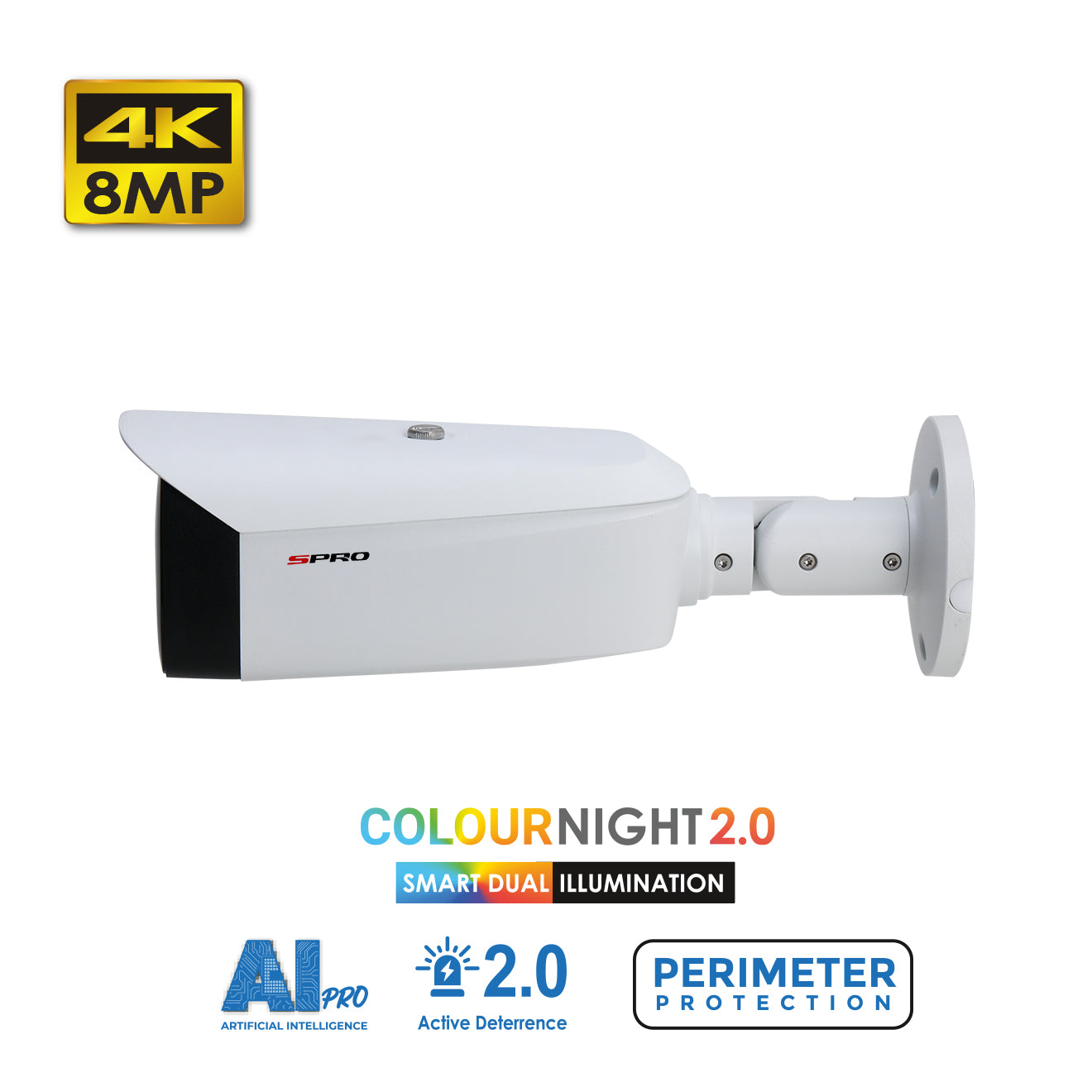

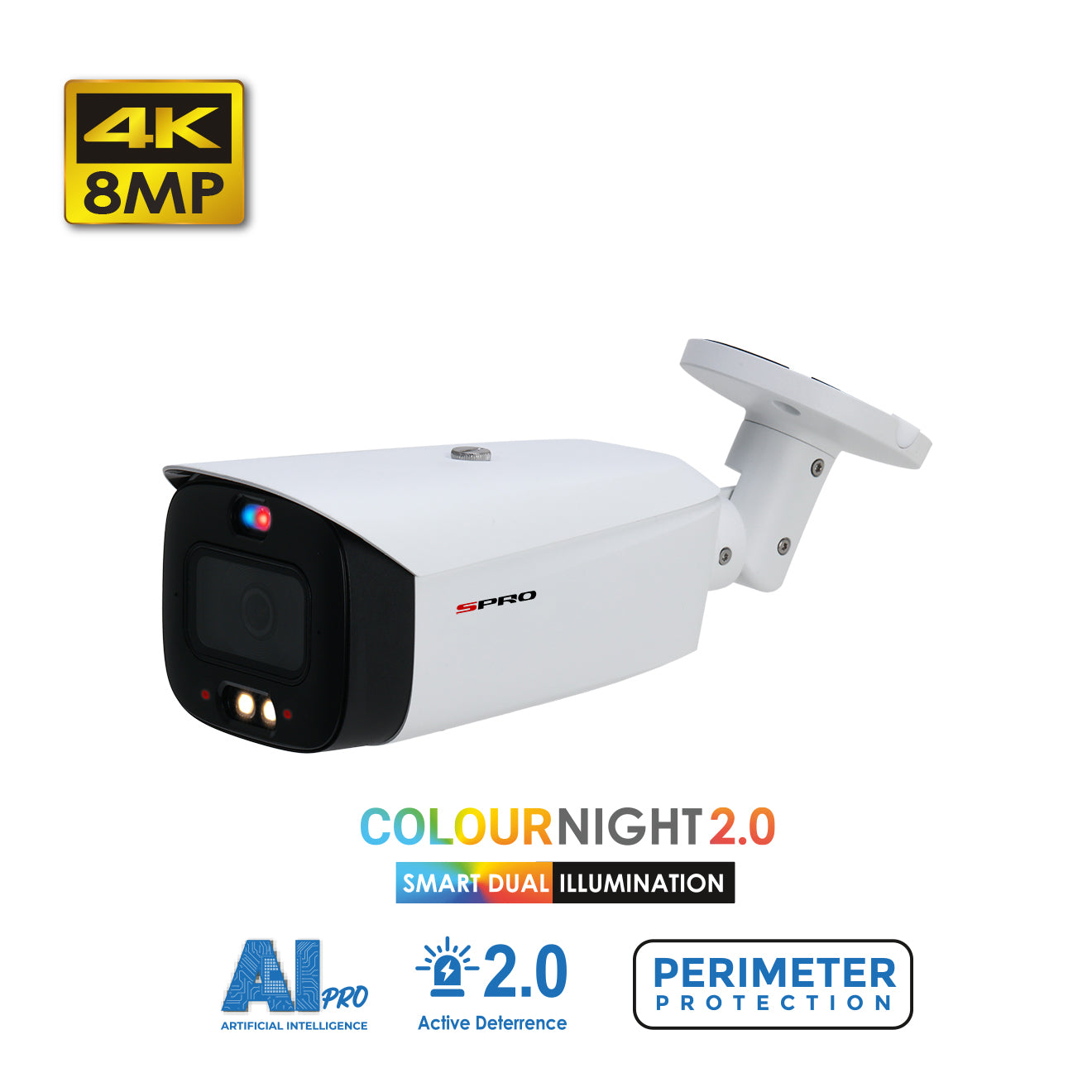

Increase your security and deter potential intruders with the SPRO 8MP Active Deterrence 2.0 IP Bullet Camera. With dual illumination up to 30m and 2-way audio, you'll have peace of mind knowing that potential threats are being identified and addressed. Plus, the camera's Smart Detection Plus and perimeter protection features make it easier than ever to keep your property safe. And with easy one-press controls and ample storage capabilities, you'll have everything you need to effectively monitor your surroundings. Rest assured that this camera is built to withstand harsh conditions with its IP67 waterproof casing.

Key Features:

  • H.265
  • 120 dB WDR
  • Red & blue flash light/alarm
  • Alarm: 1 in 1 out
  • Built-in warm light & IR LEDs (30m)
  • Two-way-audio
  • Microphone & speaker built-in (2 way audio)
  • SMD PLUS
  • Perimeter protection (tripwire & intrusion)
  • Classification of human & vehicle
  • One press arming/disarming through alarm input
  • Support max. 256G micro SD card
  • IP67 waterproof
  • DC12V/POE
Specifications:
Model Number DHIPQ80/28LRW/30-D-V2
Camera
Image Sensor 1 / 2.8 inch CMOS
Max. Resolution 3840 (H) x 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto / Manual / 1/3 s-1/100,000 s
S/N Ratio > 56 dB
Min. Illumination 0.004 lux@F1.0 (Colour, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
Illumination Distance Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR LED) 2 (warm light)
Pan / Tilt / Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type Fixed Focal
Mount Type M12
Focal Length 2.8 mm
Field of View H: 106°; V: 55°; D: 125°
Iris Type Fixed
Close Focus Distance 2.0 m (6.56 ft)
DORI Detect: 91.0 m (298.56 ft)
Observe: 36.4 m ( 119.42 ft)
Recognise: 18.2 m (59.71 ft)
Identify: 9.1 m (29.86 ft)
Intelligence
IVS (Perimeter Protection Tripwire; intrusion (support the classification and accurate
detection of vehicle and human)
SMD Less false alarm, longer detection distance
Smart Search Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users
are interested in from SMD events
AI SSA Adopt deep learning algorithms to adjust the parameters of the
image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944);
4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32kbps–8192 kbps; H.265: 12kbps–8192 kbps
Day/Night Auto (ICR)/Colour/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution
and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in Mic Yes, built-in dual Mic
Built-in speaker Yes. built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection;
IP conflict; illegal access; motion detection; video tampering;
tripwire; intrusion; scene changing; audio detection; voltage
detection; external alarm; SMD; security exception
Network
Network Metal throughout the whole casing
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption;
Digest; WSSE; account lockout; security logs; IP/MAC filtering;
generation and importing of X.509 certification; syslog; HTTPS; 802.1x;
trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP;
DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S;Profile G;Profile T); CGI
User / Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8/9/11; Chrome; Firefox
Management Software DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V-5 VDC
Alarm Output 1 channel out: 300mA 12 VDC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic: 4.5 W (12 VDC); 5.5 W (PoE)
Max. (pulling stream+warning light+speaker+warm light on):
7.6 W (12 VDC); 9.1 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal + Plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight 1.0 kg (2.20 lb)
Gross Weight 1.23 kg (2.71 lb)
