About

Description

Part Number:  DHD80/28RG/30-4-M
Brand:  SPRO
Camera Resolution  8 Megapixels
Lens  Fixed Lens
IR Distance  Up to 30m IR distance
Built-in Mic.  Yes
Ingress Protection  IP67

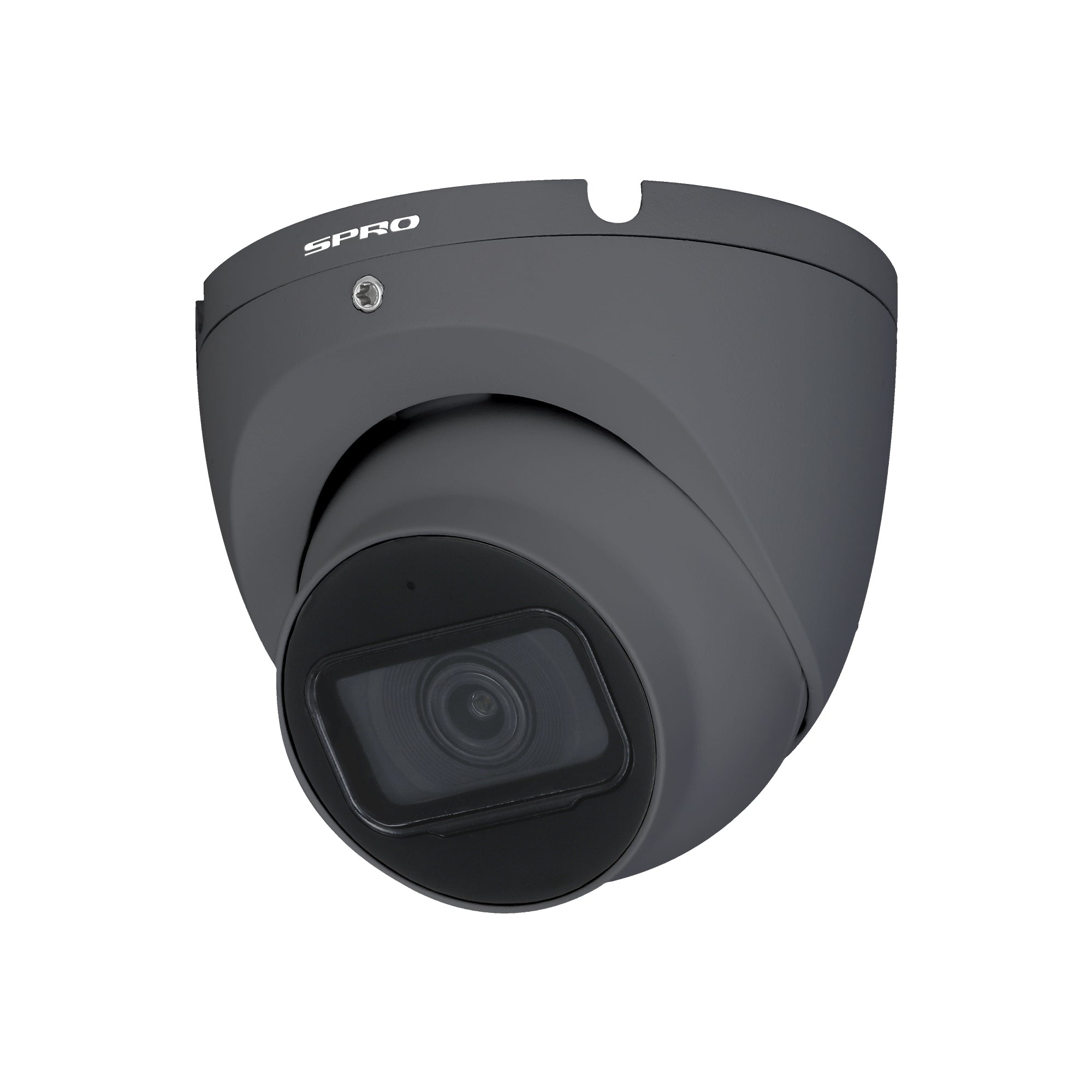

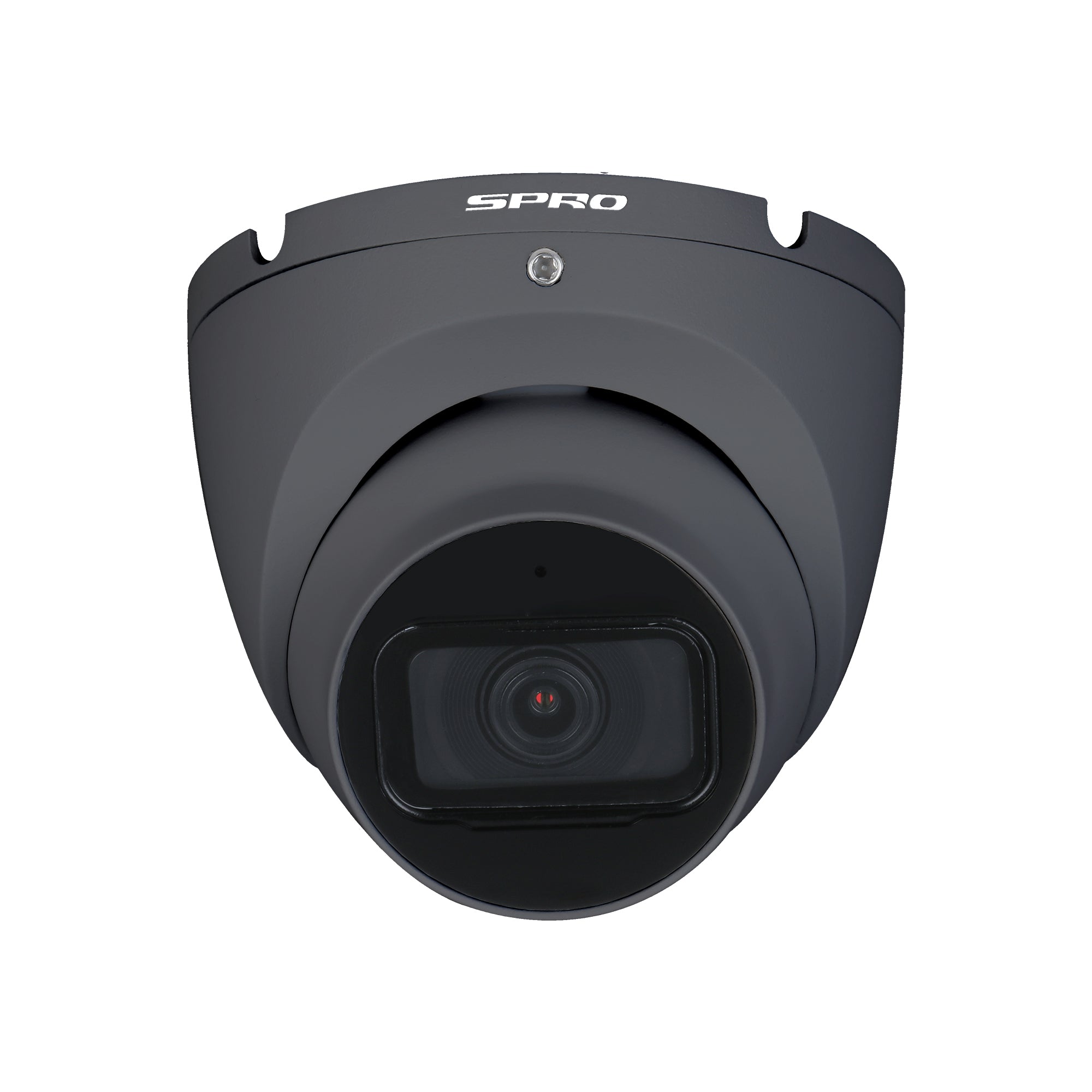

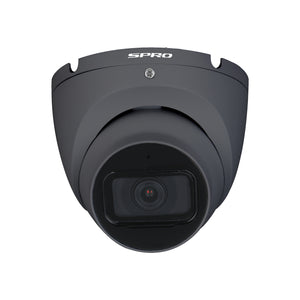

Enhance your security with the SPRO 8MP Fixed Lens Turret Camera (DHD80/28RG/30-4-M), featuring a built-in microphone for clear audio surveillance. Capture both high-resolution video and audio details.

Key Features

  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • 2.8 mm fixed lens
  • Built-in Mic
  • Max. IR length 30 m, Smart IR
  • IP67, DC12V
Specifications:
Model Number DHD80/28RG/30-4-M
Camera
Image Sensor 1 / 2.7 inch CMOS
Max. Resolution 3840 (H) x 2160 (V)
Pixel 8 MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s
S/N Ratio > 65 dB
Min. Illumination 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on
Illumination Distance 30 m (98.4ft)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR light)
Pan / Tilt / Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View H:105° V:56° D:125°
Iris Type Fixed
Close Focus Distance 1.0 m (3.3 ft);
DORI Detect: 75m (246.1 ft)
Observe: 30m (98.4 ft)
Recognise: 15m (49.2 ft)
Identify: 8m (26.2 ft)
Day / Night Auto switch by ICR
BLC BLC / HLC / DWDR
WDR DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/ On
Privacy Masking Off / On (8 area, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in Mic
Power
Power Supply 12V ±30% DC
Power Consumption Max 4.3 W (12V DC, IR on)
Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)


Description

Part Number:  DHD80/28RG/30-4-M
Brand:  SPRO
Camera Resolution  8 Megapixels
Lens  Fixed Lens
IR Distance  Up to 30m IR distance
Built-in Mic.  Yes
Ingress Protection  IP67

Enhance your security with the SPRO 8MP Fixed Lens Turret Camera (DHD80/28RG/30-4-M), featuring a built-in microphone for clear audio surveillance. Capture both high-resolution video and audio details.

Key Features

  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • 2.8 mm fixed lens
  • Built-in Mic
  • Max. IR length 30 m, Smart IR
  • IP67, DC12V
Specifications:
Model Number DHD80/28RG/30-4-M
Camera
Image Sensor 1 / 2.7 inch CMOS
Max. Resolution 3840 (H) x 2160 (V)
Pixel 8 MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s
S/N Ratio > 65 dB
Min. Illumination 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on
Illumination Distance 30 m (98.4ft)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR light)
Pan / Tilt / Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View H:105° V:56° D:125°
Iris Type Fixed
Close Focus Distance 1.0 m (3.3 ft);
DORI Detect: 75m (246.1 ft)
Observe: 30m (98.4 ft)
Recognise: 15m (49.2 ft)
Identify: 8m (26.2 ft)
Day / Night Auto switch by ICR
BLC BLC / HLC / DWDR
WDR DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/ On
Privacy Masking Off / On (8 area, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in Mic
Power
Power Supply 12V ±30% DC
Power Consumption Max 4.3 W (12V DC, IR on)
Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.47 kg (1.04 lb)
