About
Description
Part Number: DHD80/28RW/30-4-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
IR Distance Up to 30m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Built-in Mic. Yes
Ingress Protection IP67

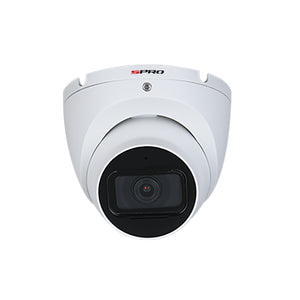

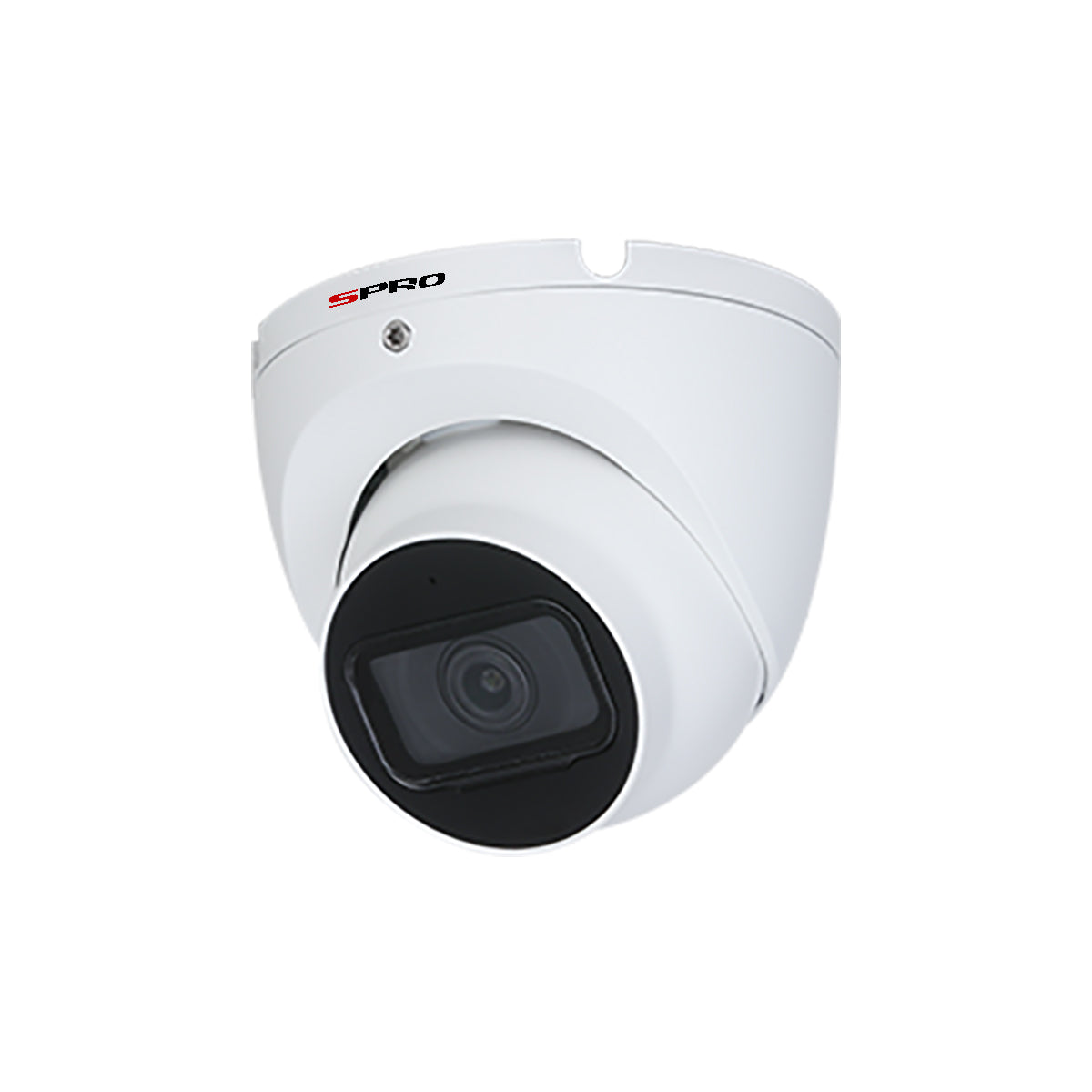

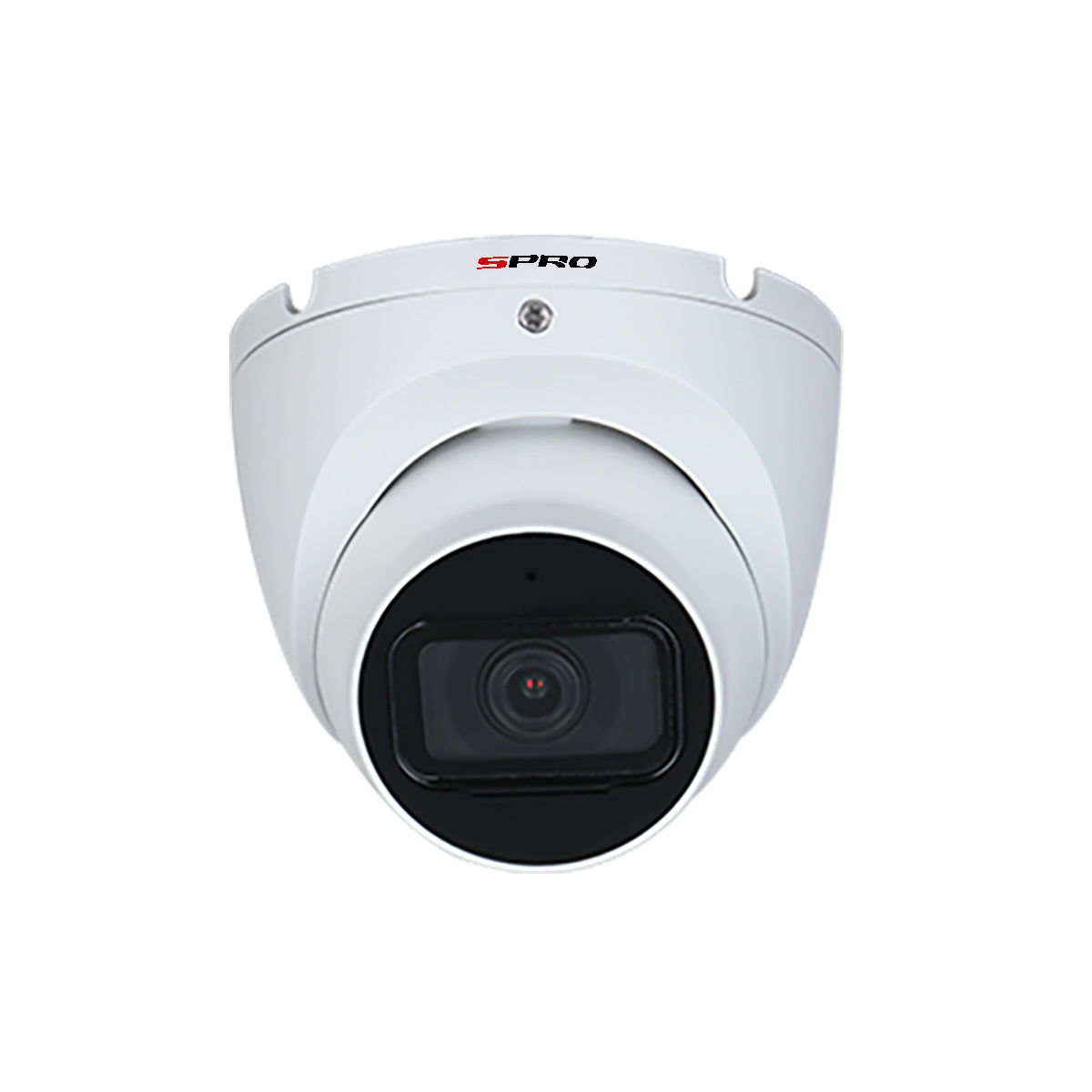

Upgrade security with the SPRO 8MP Fixed Lens Turret Camera.
This exceptional camera features an impressive 4K maximum resolution, guaranteeing the capture of every detail with stunning clarity.
With support for various video formats such as CVI, CVBS, AHD, and TVI, this turret offers effortless integration into any existing system.
Featuring a built-in microphone for impeccable audio capture, as well as remarkable night vision and up to 30 metres of IR distance.
Key Features
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed lens
- Built-in Mic
- Max. IR length 30 m, Smart IR
- IP67, DC12V
| Specifications: | |
|---|---|
| Model Number | DHD80/28RW/30-4-M |
| Camera | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Pixel | 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H:105° V:56° D:125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft); |
| DORI | Detect: 75m (246.1 ft) Observe: 30m (98.4 ft) Recognise: 15m (49.2 ft) Identify: 8m (26.2 ft) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/ On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
Description
Part Number: DHD80/28RW/30-4-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
IR Distance Up to 30m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Built-in Mic. Yes
Ingress Protection IP67
Upgrade security with the SPRO 8MP Fixed Lens Turret Camera.
This exceptional camera features an impressive 4K maximum resolution, guaranteeing the capture of every detail with stunning clarity.
With support for various video formats such as CVI, CVBS, AHD, and TVI, this turret offers effortless integration into any existing system.
Featuring a built-in microphone for impeccable audio capture, as well as remarkable night vision and up to 30 metres of IR distance.
Key Features
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed lens
- Built-in Mic
- Max. IR length 30 m, Smart IR
- IP67, DC12V
| Specifications: | |
|---|---|
| Model Number | DHD80/28RW/30-4-M |
| Camera | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Pixel | 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H:105° V:56° D:125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft); |
| DORI | Detect: 75m (246.1 ft) Observe: 30m (98.4 ft) Recognise: 15m (49.2 ft) Identify: 8m (26.2 ft) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/ On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
My Store
by
My Store
SPRO 8MP Fixed Lens Turret Camera with Microphone Built-in
- Regular price
- £63.65
- Sale price
- £63.65
- Regular price
-
£69.99
Tax included.
