About
Description
Part Number: DHD80/28RW/50M-4-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
IR Distance Up to 50m IR distance
Protocol 4in1: CVI, TVI, AHD & CVBS
Built-in Mic. Yes
Starlight Yes
Style Turret
The DHD80/28RW/50M-4-M is equipped with a built-in microphone for capturing high-quality 4k footage and providing 50m IR coverage. It also has the ability to utilize audio over co-ax, making it compatible with a variety of recorders.
Utilize audio over co-ax by transmitting sound captured by the built-in microphone through the same cable used for video transmission. In order to fully utilize this feature, a compatible recorder specifically designed for audio over co-ax is required, which enables audio on every channel that has an audio over co-ax camera.
To ensure optimal performance, it is recommended to use a 3amp ungrounded power supply or a dedicated isolator when using these cameras. Interference from the power supply may occur due to their sensitivity.
| Specifications: | |
|---|---|
| Model Number | DHD80/28RW/50M-4-M |
| Image Sensor | 1/2" CMOS |
| Effective Pixels | 3840(H)×2160(V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/4s~1/100000s |
| Min. Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| Max. IR distance | Up to 50m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max Aperture | F1.6 |
| Angle of View | H:110.8° |
| Focus Control | N/A |
| Close Focus Distance | 1800mm |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 70° / Rotation: 0° ~ 360° |
| Video | |
| Resolution | 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960× 576/ 960 × 480) |
| Video Frame Rate | CVI: 4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D/3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Interface | |
| Audio Interface | 1ch in & Built-in Mic (Directional) |
| General | |
| Power Supply | DC12V±30% |
| Power Consumption | Max 8W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C / Less than 90% RH |
| Strorage Conditions | -30°C ~ +60°C / Less than 90% RH |
| Ingress Protection | IP66 |
| Casing | Aluminium |

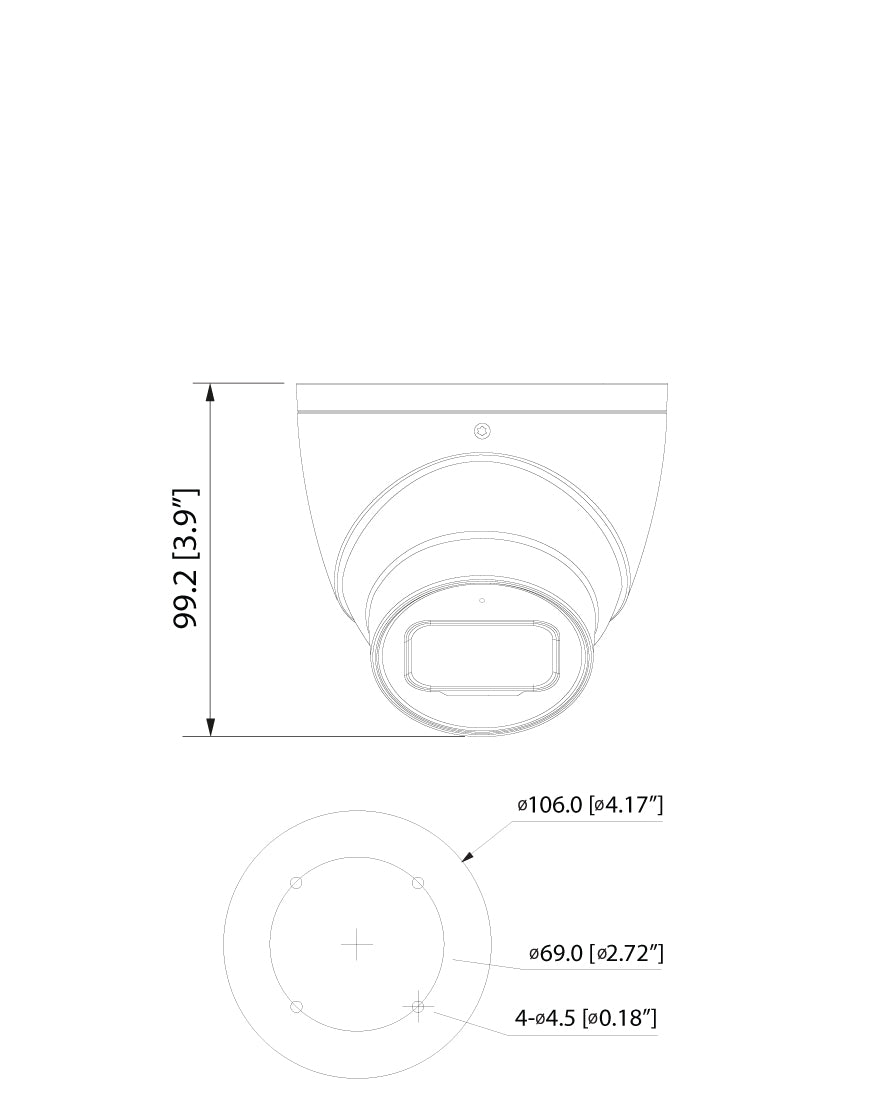

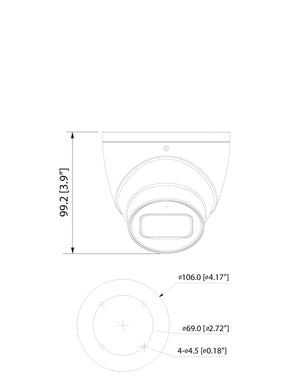

| Dimensions | Φ106mm×99.2mm (Φ4.17"×3.9") |
| Net Weight | 0.5kg (1.10lb) |
| Gross Weight | 0.62kg (1.37lb) |
