Description

Part Number:  DHIPD80/28LRW/30-D-V4
Brand:  SPRO
Camera Resolution  8 Megapixels
Lens  Fixed Lens
Codec recording  H.265
IR Distance  Up to 30m IR distance
LED Distance  Up to 30m LED distance
Built-in Mic.  Yes
Speaker Built-in  Yes
Siren Built-in  Yes
2 Way Audio  Microphone & Speaker Built-in
Audio over CAT5e  Yes
Active Deterrence  Yes
Colour Night  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
WDR  120dB
Style  Turret
AcuPick  Yes
ColourNight 2.0  Yes

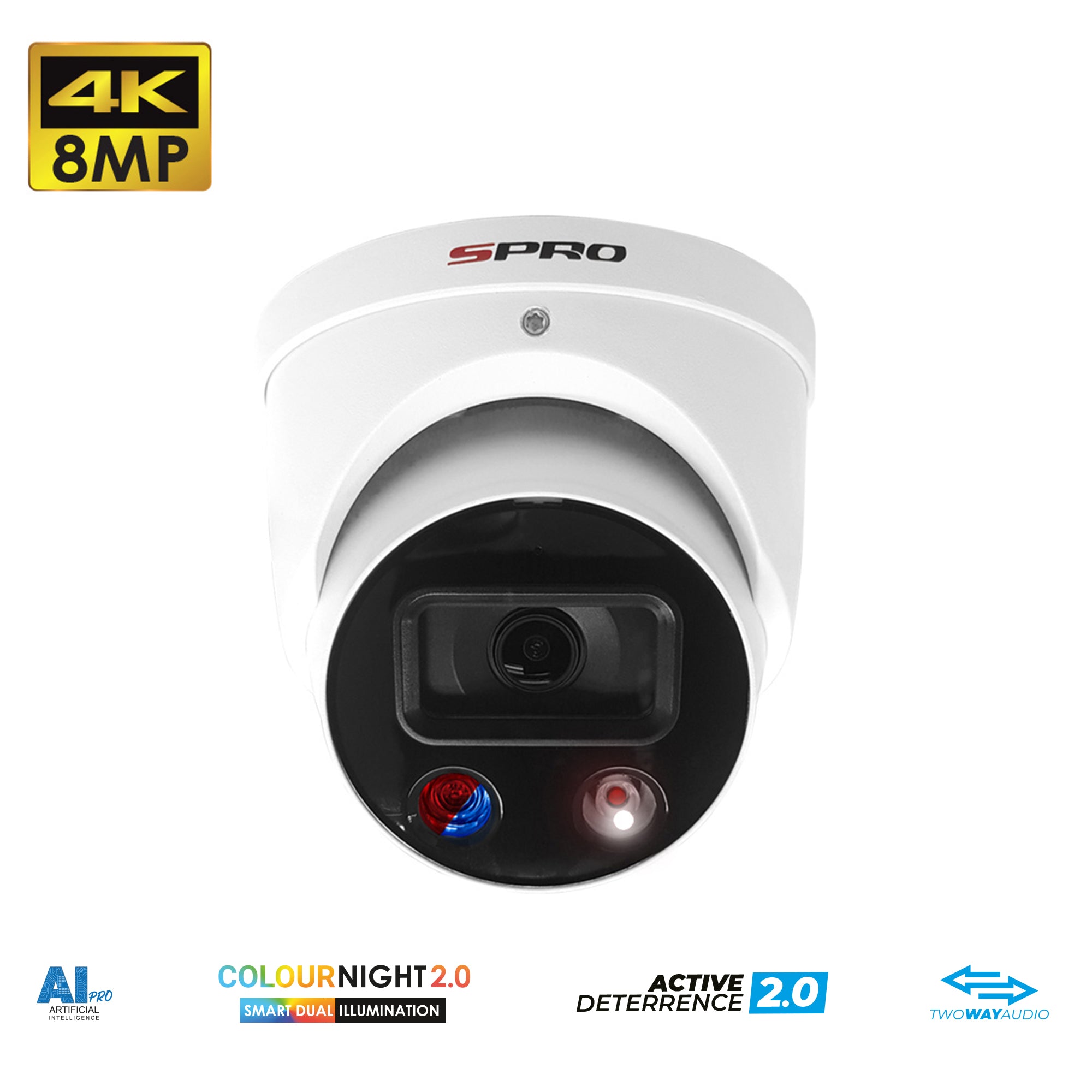

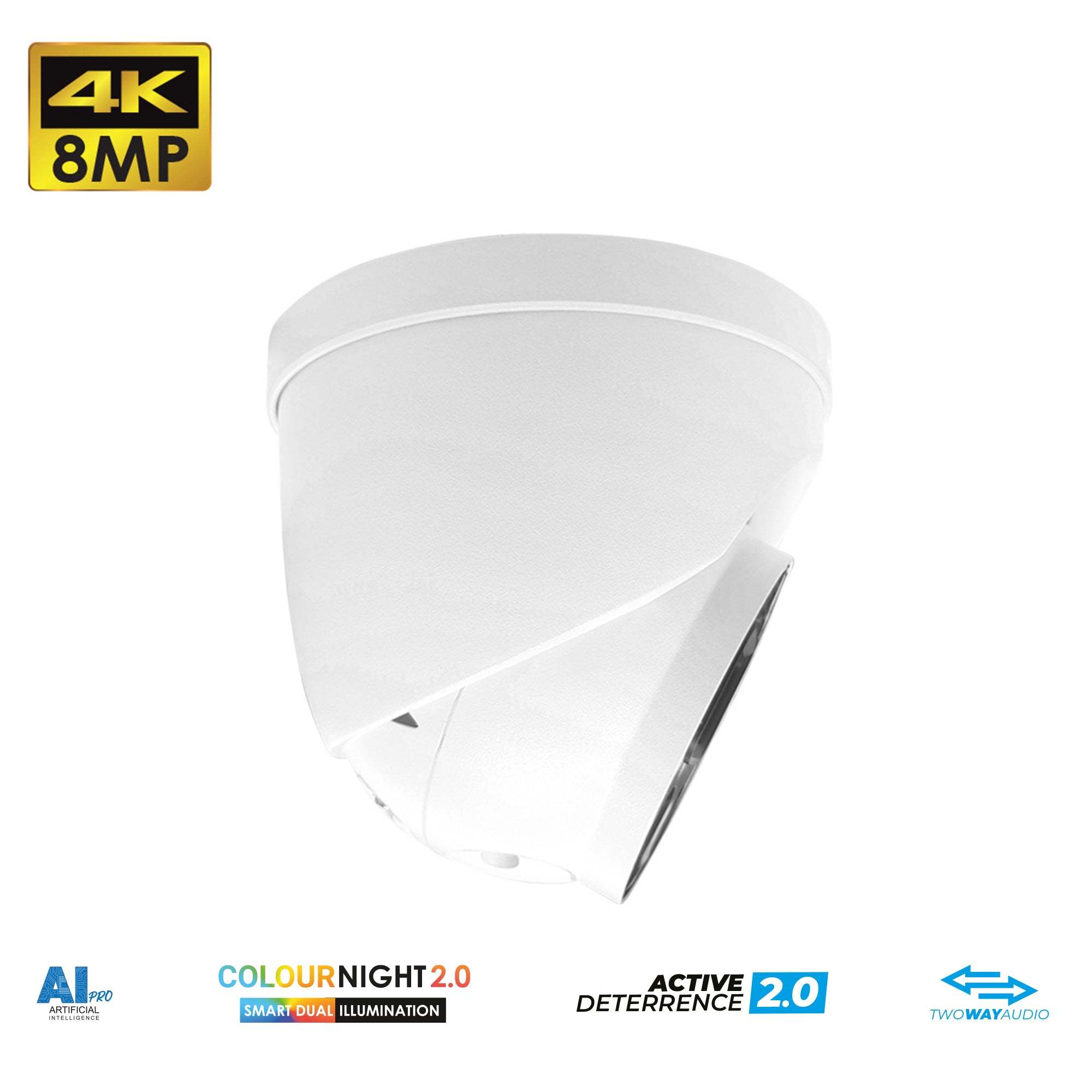

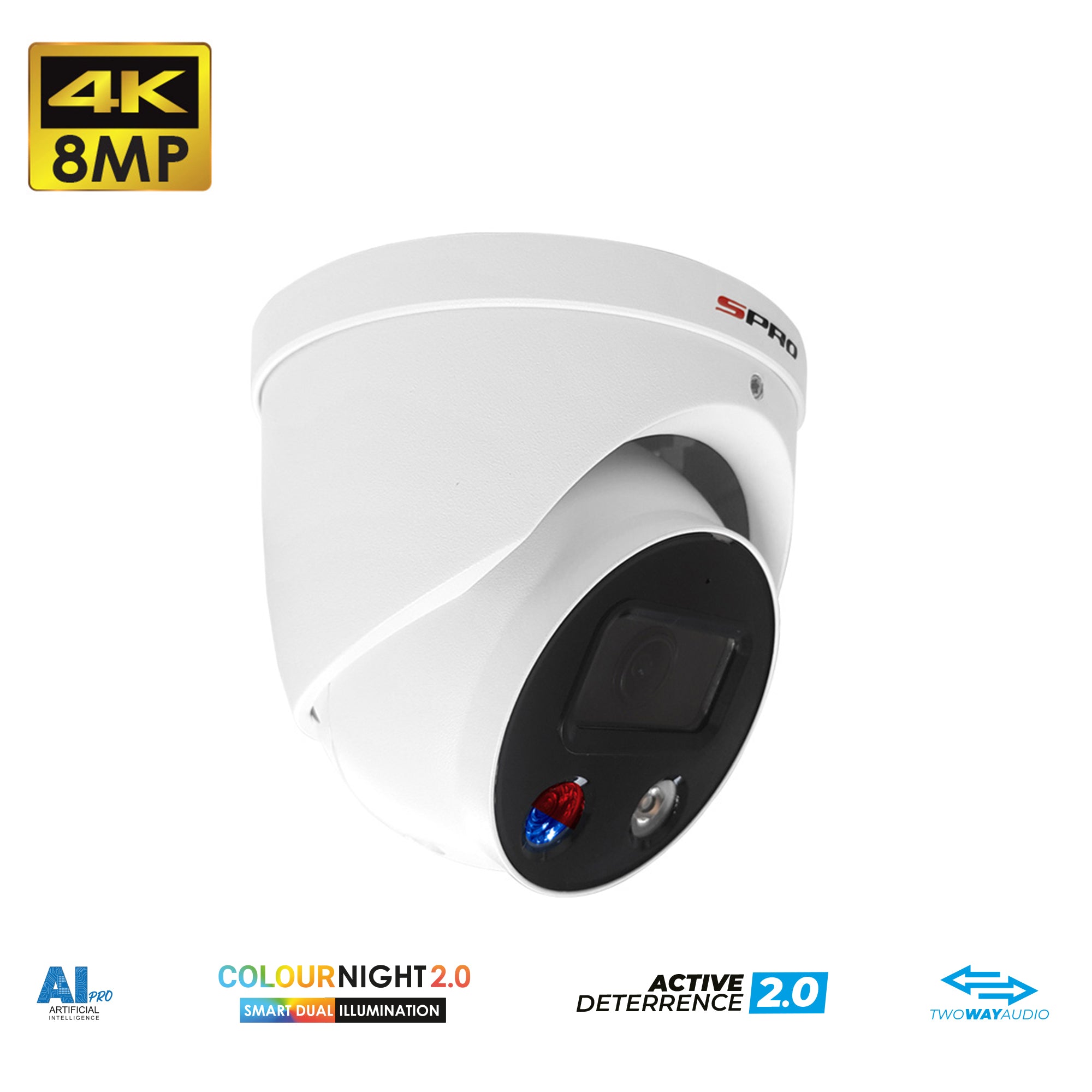

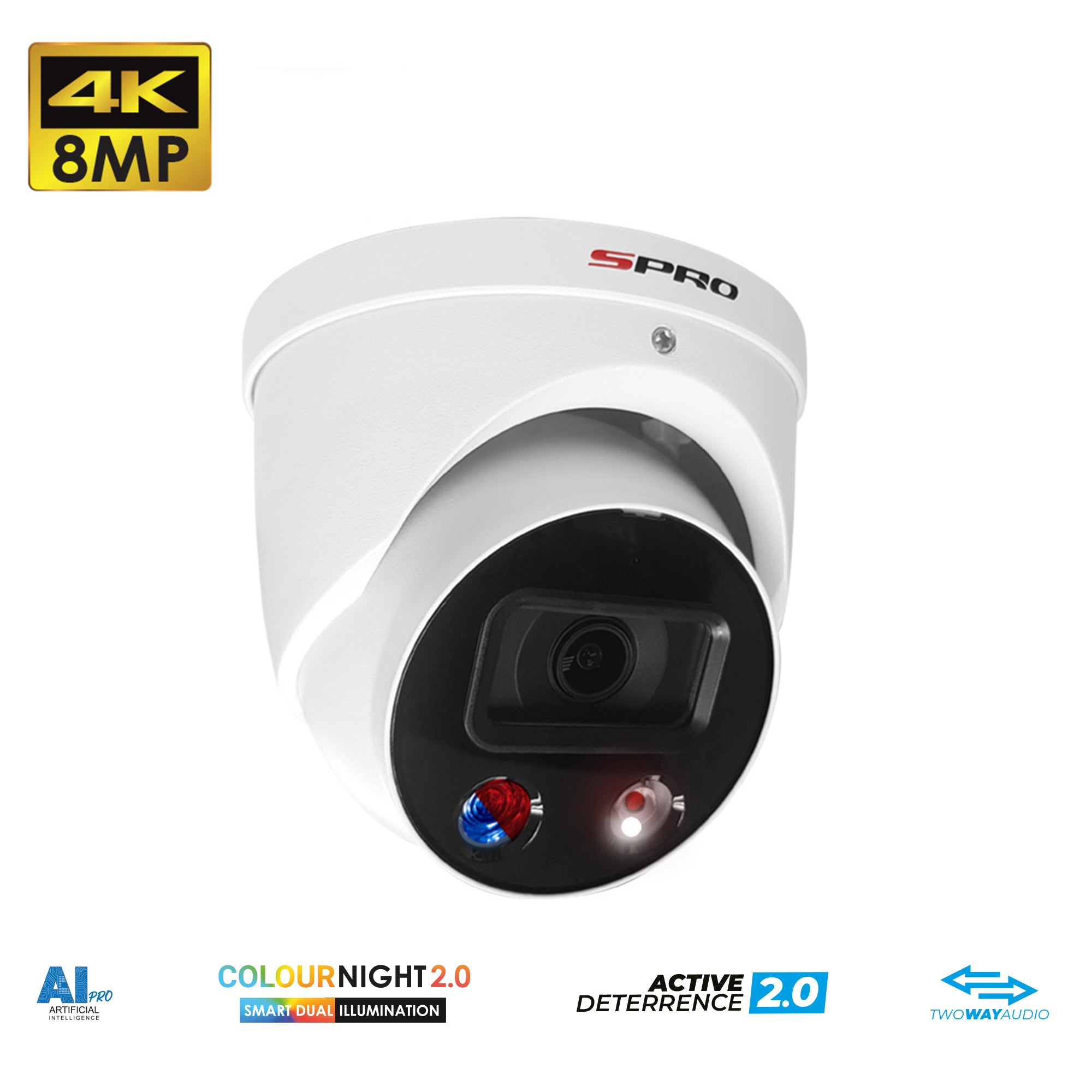

Introducing the SPRO Smart Dual Illumination Active Deterrence camera series, meticulously crafted to proactively deter crime. These cutting-edge cameras boast red and blue flashing lights, a two-way audio system with a built-in speaker, and pre-recorded messages to enhance security measures.

Equipped with AcuPick and Colour Night 2.0 technology, our cameras redefine nighttime surveillance by capturing vivid, full-color images in low-light conditions. The innovative inclusion of white light LEDs ensures optimal scene illumination.

Key Features:

  • 8 megapixel
  • H.265
  • 2.8mm Lens
  • Up to 30m LED distance (smart LED)
  • Up to 30m IR distance (smart LED)
  • SMD 4.0 (Smart motion detection)
  • Intrusion (human & vehicle classification)
  • Tripwire (human & vehicle classification)
  • Two-way-audio
  • Microphone built-in (audio over CAT5e cable)
  • 120dB WDR
  • IP67 waterproof
  • DC 12V/POE
Specifications:
Model Number DHIPD80/28LRW/30-D-V4
Image Sensor 1/2.7” CMOS
Effective Pixels 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 G
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Colour, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ＞56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto / Manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/ Tilt/ Rotation Range Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8mm
Field of View Horizontal: 106°; vertical: 55°; diagonal: 125°
Iris Type Fixed
Max Aperture F1.0
Close Focus Distance 1.5 m (4.92 ft)
DORI Distance Detect: 66 m
Observe: 26.4 m
Recognise: 13.2 m
Identify: 6.6 m
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
SMD 4.0 Less false alarm, longer detection distance.
Intelligent Search Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos
AI SSA Adopt deep learning algorithms to adjust the parameters of
the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the
sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265 (Compression rate ≥25%), AI H.264 (Compression rate ≥25%)
Video Frame Rate Main stream: 3840 × 2160 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for
multiple streams, the values will be subjected to the total
encoding capacity.
Streaming Capability 3 Streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944);
4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR / VBR / ABR
Video Bit Rate H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Day/Night Auto (ICR)/Colour/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto / Natural / Street Lamp / Outdoor / Manual / regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and
lower)
Mirror Yes
Privacy Masking 4 Areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in dual Speaker
Audio Compression PCM; G.711a; G.726Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP
conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; scene changing; audio detection; voltage detection;
external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption;
Digest; WSSE; account lockout; security logs; IP/MAC filtering;
Generation and importing of X.509 certification; syslog; HTTPS; 802.1x;
trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S;Profile G;Profile T); CGI
Max. User Access 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (Support max. 256Gb); NAS
Web Viewer IE: IE8/9/11; Chrome; Firefox
Management Software Smart PSS Lite; DMSS
Smart Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
General
Power Supply 12 VDC; PoE
Power Consumption Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active
deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE)
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Ingress Protection IP67
Casing Metal
Dimensions Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
Net Weight 0.75 kg (1.65 lb)
Gross Weight 0.92 kg (2.03 lb)
