About
Description
Part Number: DHIPD80/28LRG-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
Codec recording H.265
IR Distance Up to 30m IR distance
LED Distance Up to 30m LED distance
Built-in Mic. Yes
Colour Night Yes
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
WDR 120dB
Style Turret
ColourNight 2.0 Yes

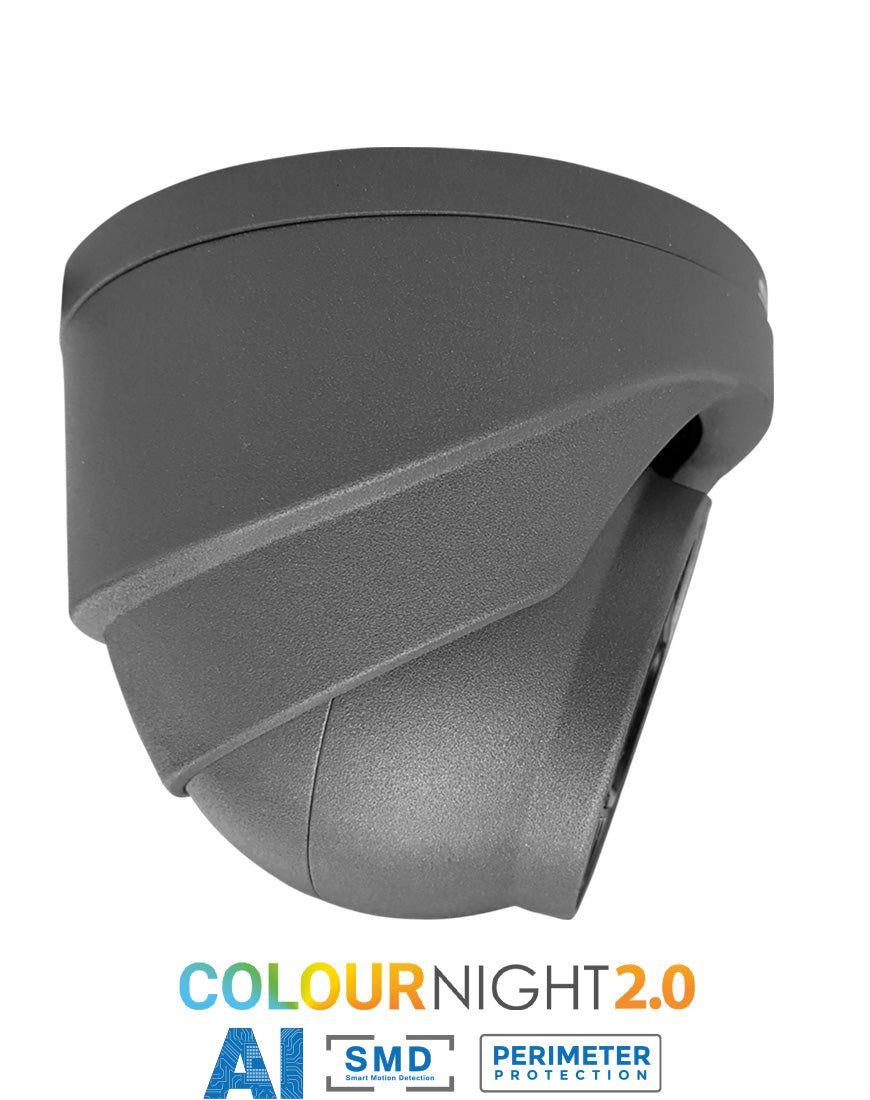

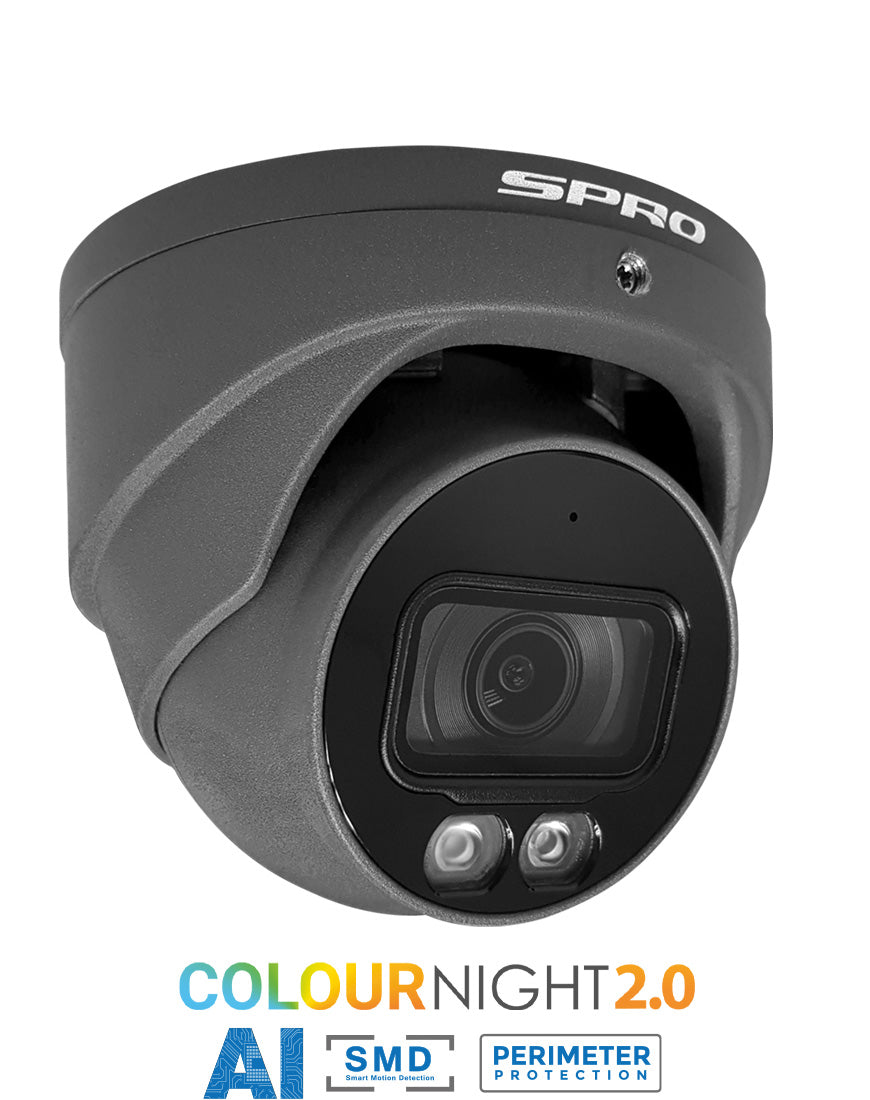

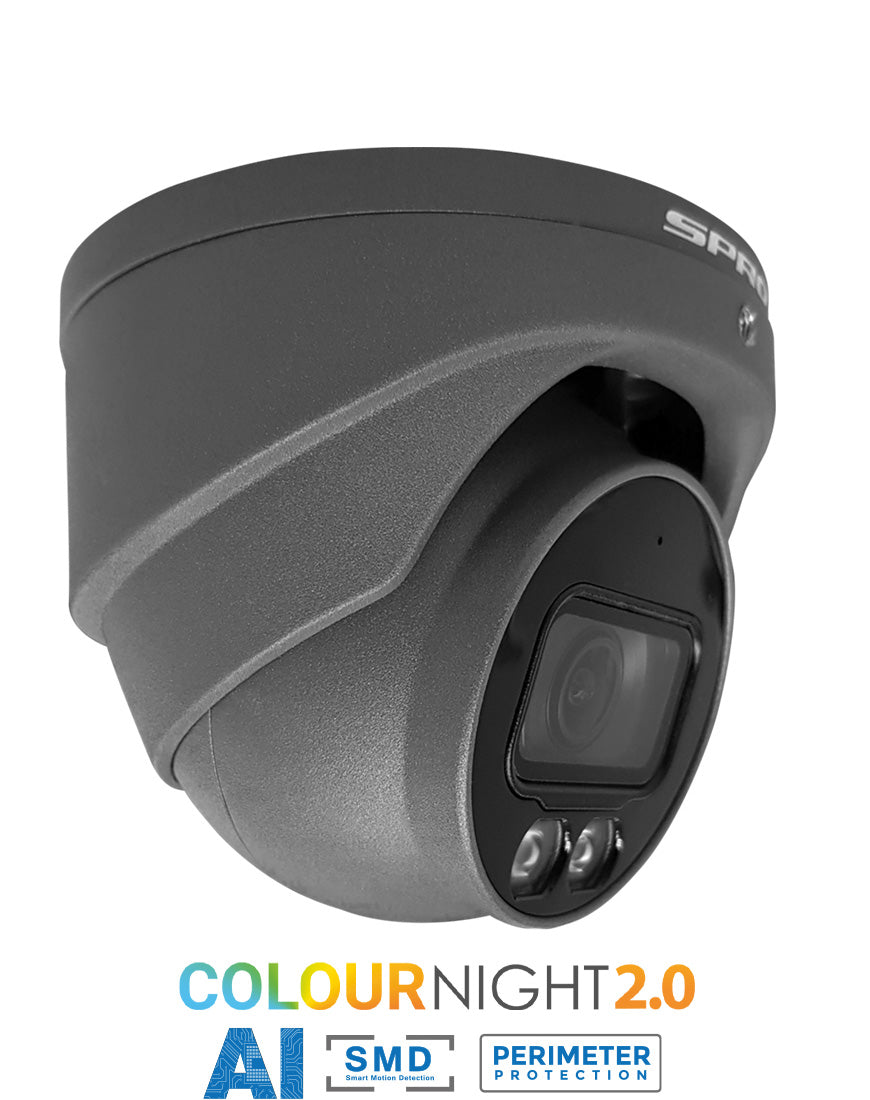

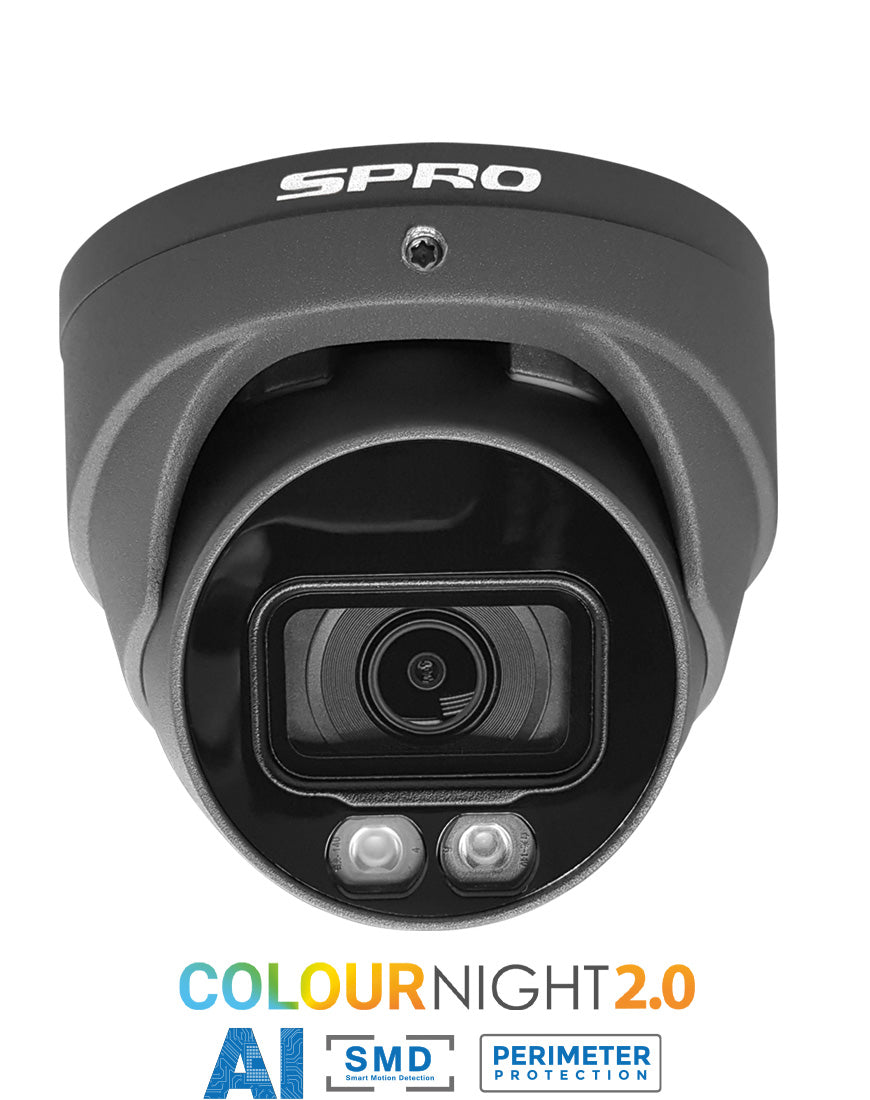

Introducing the SPRO IP Smart Dual Illumination Turret, showcasing the cutting-edge COLOUR NIGHT 2.0 technology and boasting a built-in speaker on the 8MP version.
Experience unparalleled nighttime visibility with the SPRO ColourNight series, meticulously crafted to capture vivid colour images after dark. Equipped with dynamic white light LEDs, these cameras illuminate the surroundings for optimal clarity.
Notably, our ColourNight cameras are enhanced with built-in IR capabilities. These infrared sensors deliver standard black and white night imagery consistently throughout the night, allowing the white light LEDs to activate only upon detecting motion—creating an effective security light effect. Moreover, users have the flexibility to utilise the cameras in the traditional manner, with continuous white light throughout the night, if desired. Versatility meets innovation with the SPRO ColourNight range, redefining nighttime surveillance.
| Specifications: | |
|---|---|
| Model Number | DHIPD80/28LRW-M |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3280 (H)x2160(V) |
| ROM | 128 MB |
| RAM | 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s-1/100.000 s |
| Min. Illumination | 0.008 lux@F1.6 (Colour, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56dB |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1(Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) |
| DORI Distance |
Detect: 84.8m Observe: 33.9m Recognize: 17.0m Identify: 8.5m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth:48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: Chrome Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power consumption | Basic: 2.6 W (12 VDC); 3.3 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 0.365 kg |
| Gross Weight | 0.527 kg |
Description
Part Number: DHIPD80/28LRG-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Fixed Lens
Codec recording H.265
IR Distance Up to 30m IR distance
LED Distance Up to 30m LED distance
Built-in Mic. Yes
Colour Night Yes
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
WDR 120dB
Style Turret
ColourNight 2.0 Yes
Introducing the SPRO IP Smart Dual Illumination Turret, showcasing the cutting-edge COLOUR NIGHT 2.0 technology and boasting a built-in speaker on the 8MP version.
Experience unparalleled nighttime visibility with the SPRO ColourNight series, meticulously crafted to capture vivid colour images after dark. Equipped with dynamic white light LEDs, these cameras illuminate the surroundings for optimal clarity.
Notably, our ColourNight cameras are enhanced with built-in IR capabilities. These infrared sensors deliver standard black and white night imagery consistently throughout the night, allowing the white light LEDs to activate only upon detecting motion—creating an effective security light effect. Moreover, users have the flexibility to utilise the cameras in the traditional manner, with continuous white light throughout the night, if desired. Versatility meets innovation with the SPRO ColourNight range, redefining nighttime surveillance.
| Specifications: | |
|---|---|
| Model Number | DHIPD80/28LRW-M |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3280 (H)x2160(V) |
| ROM | 128 MB |
| RAM | 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s-1/100.000 s |
| Min. Illumination | 0.008 lux@F1.6 (Colour, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56dB |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1(Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) |
| DORI Distance |
Detect: 84.8m Observe: 33.9m Recognize: 17.0m Identify: 8.5m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth:48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: Chrome Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power consumption | Basic: 2.6 W (12 VDC); 3.3 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 0.365 kg |
| Gross Weight | 0.527 kg |
SPRO
by
SPRO
SPRO 8MP IP Turret with COLOUR NIGHT 2.0 and Built-In Mic
