Description
Part Number: DHIPNVR04-A5-0TB
Brand: SPRO
Recorder Resolution 12 Megapixel
Channels 4
Codec recording H.265
Audio over CAT5e Yes
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
Face Recognition Yes
Smart Dual Illumination Supported Yes
This SPRO A5 4 Channel can support up to 12MP resolution. Stacked full of features, it comes equipped with AI for face detection and recognition, enhancing security accuracy.
Perimeter protection, featuring intrusion detection, tripwire detection, and fast-moving detection, alerts you to potential breaches. The SMD Plus feature ensures precise human and vehicle motion detection, minimising false alarms.
This powerful NVR not only supports up to 12MP resolution, but it also comes equipped with advanced AI features for face detection and recognition, perimeter protection that includes intrusion detection and tripwire detection, and SMD Plus technology for precise human and vehicle motion detection.
With these cutting-edge features, you can rest assured that your security will be accurate and reliable.
| Specifications: | |
|---|---|
| Model Number | DHIPNVR04-A5 |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI | |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by NVR | Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection | |
| Perimeter Performance AI by NVR(Number of Channels) |
1 |
| Perimeter Performance of AI by Camera (Number of Channels) |
4 |
| Face Detection | |
| Face Attributes | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Detection Performance of AI by NVR (1080P) (Number of Channels) |
1 (up to 12 face images/second) |
| Face Detection Performance of AI by Camera (Number of Channels) |
4 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Face Recognition Performance of AI by NVR (1080P) (Number of Channels) |
1 (up to 4 face images/second) |
| Face Recognition Performance of AI by Camera (Number of Channels) |
4 |
| SMD Plus | |
| SMD Plus by NVR | 4 channel |
| SMD Plus by Camera | 4-channel SMD Plus (AI by camera): filters false alarms caused by leaves, raindrops and change of brightness |
| Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4 views |
| Third Party Camera Access | Onvif |
| Compression | |
| Video | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search ; P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF ( Profile T; profile S; profile G ); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB Device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip/file); partially zoom in; audio on/off |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |

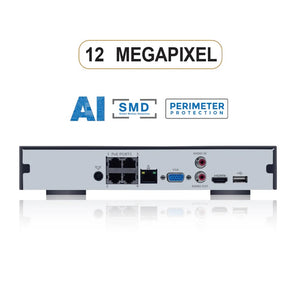

| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1x RJ-45, 10/100/1000 Mbps |
| PoE | 4x PoE ports, 10/100 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 53VDC, 1.13A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of asingle port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015; EN 55035:2017;EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:20171234678951Power |
Description
Part Number: DHIPNVR04-A5-0TB
Brand: SPRO
Recorder Resolution 12 Megapixel
Channels 4
Codec recording H.265
Audio over CAT5e Yes
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
Face Recognition Yes
Smart Dual Illumination Supported Yes
This SPRO A5 4 Channel can support up to 12MP resolution. Stacked full of features, it comes equipped with AI for face detection and recognition, enhancing security accuracy.
Perimeter protection, featuring intrusion detection, tripwire detection, and fast-moving detection, alerts you to potential breaches. The SMD Plus feature ensures precise human and vehicle motion detection, minimising false alarms.
This powerful NVR not only supports up to 12MP resolution, but it also comes equipped with advanced AI features for face detection and recognition, perimeter protection that includes intrusion detection and tripwire detection, and SMD Plus technology for precise human and vehicle motion detection.
With these cutting-edge features, you can rest assured that your security will be accurate and reliable.
| Specifications: | |
|---|---|
| Model Number | DHIPNVR04-A5 |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI | |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by NVR | Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection | |
| Perimeter Performance AI by NVR(Number of Channels) |
1 |
| Perimeter Performance of AI by Camera (Number of Channels) |
4 |
| Face Detection | |
| Face Attributes | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Detection Performance of AI by NVR (1080P) (Number of Channels) |
1 (up to 12 face images/second) |
| Face Detection Performance of AI by Camera (Number of Channels) |
4 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Face Recognition Performance of AI by NVR (1080P) (Number of Channels) |
1 (up to 4 face images/second) |
| Face Recognition Performance of AI by Camera (Number of Channels) |
4 |
| SMD Plus | |
| SMD Plus by NVR | 4 channel |
| SMD Plus by Camera | 4-channel SMD Plus (AI by camera): filters false alarms caused by leaves, raindrops and change of brightness |
| Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4 views |
| Third Party Camera Access | Onvif |
| Compression | |
| Video | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search ; P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF ( Profile T; profile S; profile G ); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB Device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (vide clip/file); partially zoom in; audio on/off |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1x RJ-45, 10/100/1000 Mbps |
| PoE | 4x PoE ports, 10/100 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 53VDC, 1.13A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of asingle port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015; EN 55035:2017;EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:20171234678951Power |
My Store
by
My Store
SPRO A5 4 Channel 12MP IP NVR with AI Technology
- Regular price
- £164.52
- Sale price
- £164.52
