About
Description
Part Number: DHDVR06-B5-V4-0TB
Brand: SPRO
Recorder Resolution 5MP-Lite
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
BNC Channels 4 Channel
Extra IP Channels 2 Channel
Smart Dual Illumination Supported Yes

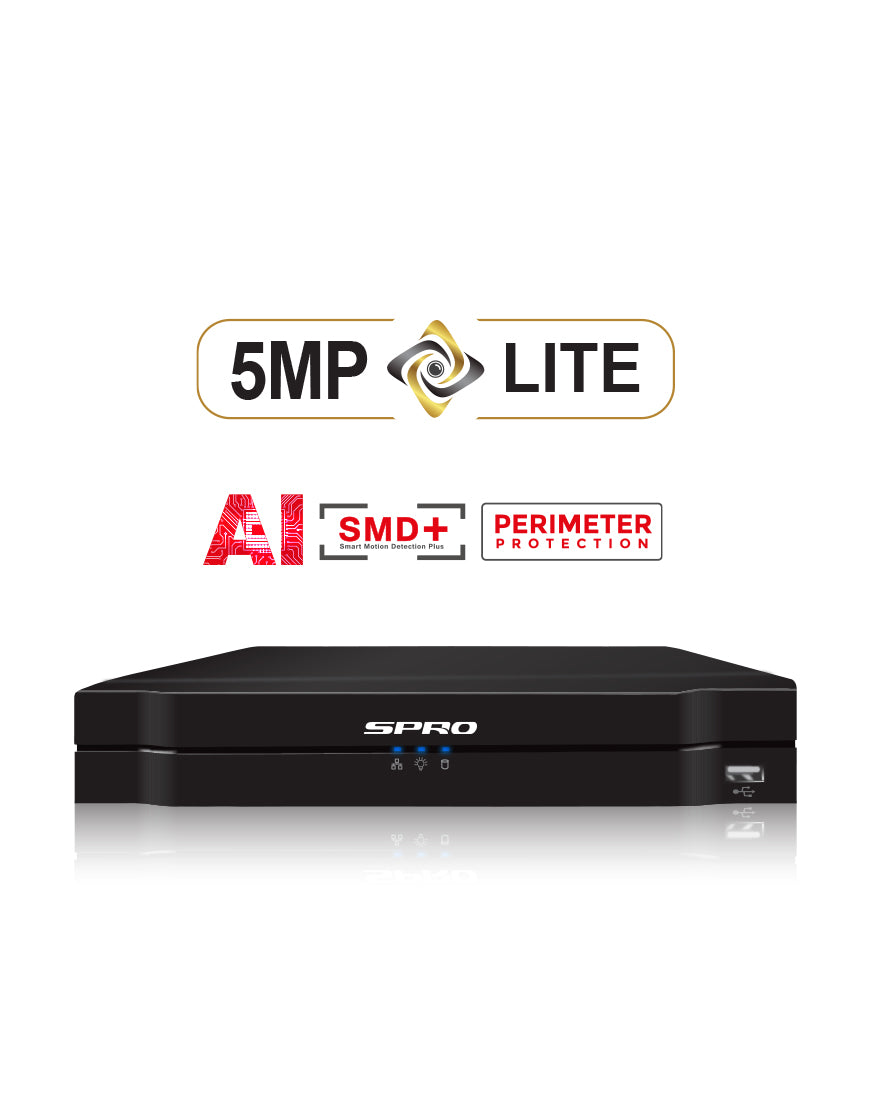

The SPRO B5 5MP-Lite DVR is a cutting-edge 4 channel digital video recorder equipped with advanced AI-powered capabilities including Smart Motion Detection Plus, Perimeter Protection, and Face Detection.
These features minimize false alerts and improve security accuracy. Additionally, the DVR offers Intrusion and Tripwire functions for proactive safety measures, as well as two-way audio and PTZ control for comprehensive monitoring and communication purposes.
The fanless design ensures silent operation, making it an ideal choice for noise-sensitive and efficient security setups in both residential and commercial properties. With four BNC channels and the ability to connect 2 additional IP cameras through a local network, the SPRO B5 can accommodate a total of 6 cameras for comprehensive surveillance coverage.
| Specifications: | |
|---|---|
| Model Number | DHDVR06-B5-V4 |
| Main Processor | Embedded processor |
| Operating System | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection of AI by Recorder | 1 channel (up to 8 face images/s each channel) |
| Face Recognition | |
| Face Detection | Up to 10 face databases wtih 10,00 images. |
| Face Recognition Performance of AI by Recorder | 1 Channel |
| SMD Plus | |
| SMD Plus by recorder | 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Video & Audio | |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1 080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. |
| IP Camera Input | Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS、SMD、Face) will be disabled. |
| Encoding Capacity | Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
| Dual-Stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
|
Third-party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE 9 or later |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | Up to 4 channels |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection; alarm box; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log, preset; email |

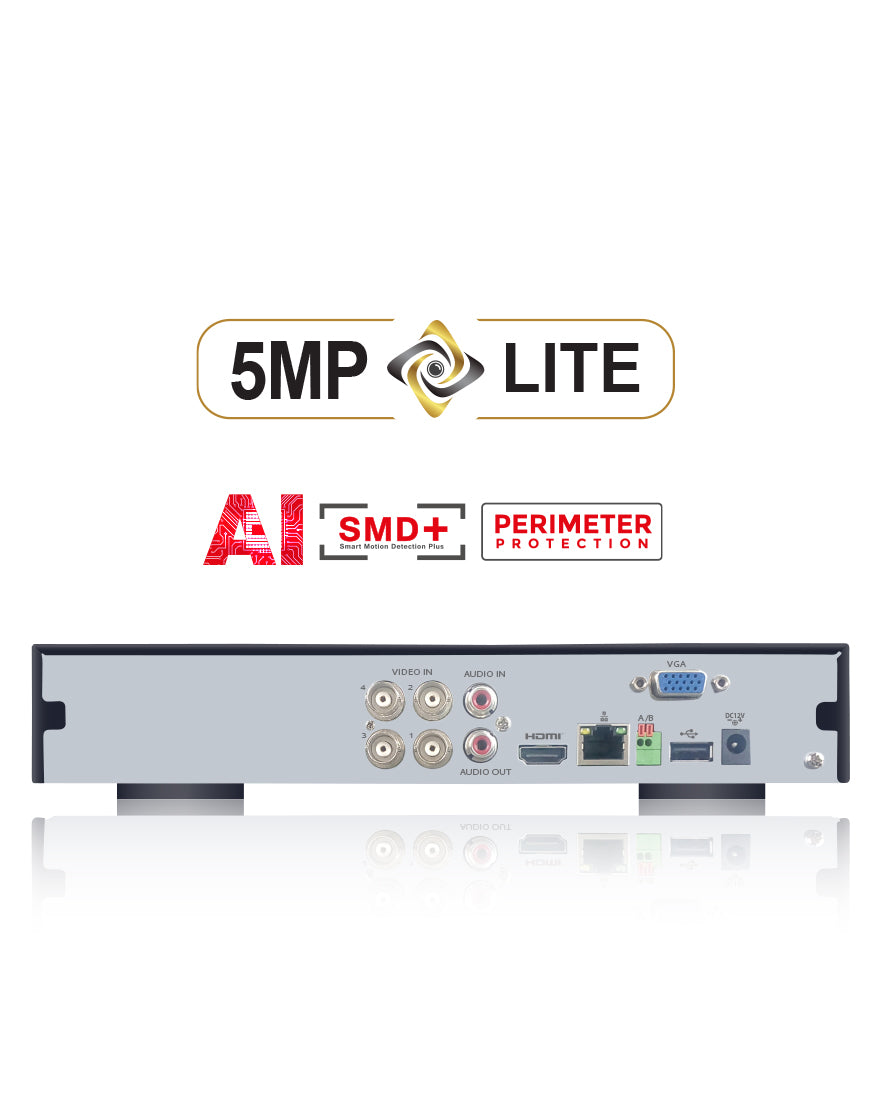

| Ports | |
| Audio Input | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5A |
| Power Consumption | <5 W (without HDD) |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.37 kg (3.02 lb) |
| Product Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × 1.87'') (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | ≤93% (RH) |
| Installation | Rack or Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
