About
Description
Part Number: DHDVR24-B6-0TB
Recorder Resolution 8MP
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection Yes
BNC Channels 16 Channel
Extra IP Channels 16 Channel
Smart Dual Illumination Supported Yes
The SPRO B6 8MP 16 Channel 5in1 with AI combines advanced technology with a sleek design. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus all provide superior security and monitoring capabilities.
With 16 BNC channels and the ability to add an additional 16 IP channels via the local network, it allows a total of 32 cameras to be displayed and recorded on the device. Up your security game with the SPRO B6 8MP 16 Channel 5in1 with AI.
With a combination of advanced technology and a modern design, this system offers superior security and monitoring capabilities. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus, this system is equipped with all the tools you need to keep your home or business safe.
With 16 BNC channels and the ability to add an additional 16 IP channels, you can display and record footage from up to 32 cameras on one device. Don't compromise on security - choose SPRO.
| Specifications: | |
|---|---|
| Model Number | DHDVR24-B6 |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 2 channels, 10 IVS for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces (not in device's face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD Plus | |
| Performance | 16 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video & Audio | |

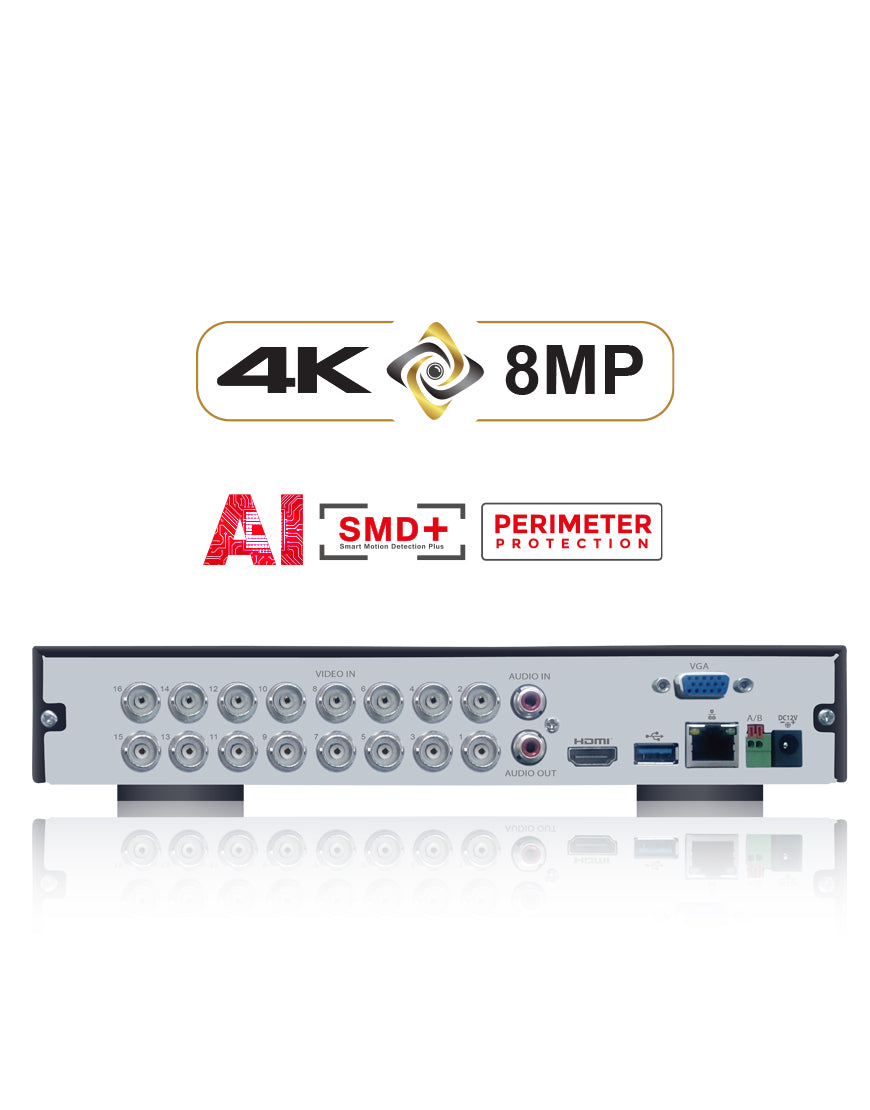

| Analog Camera Input | 16 channels, BNC |
| HDCVI Camera Input | 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera Input | 4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera Input | 4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 16+16 channels, each channel up to 8MP |
| Audio In/Out | P1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Rate - Main Stream | 4K(7fps), 6MP(10fps), 5MP(12fps),4MP/3MP(15fps),4M-N/ 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps) |
| Record Rate - Sub Stream | 960H (1~15fps), D1/ CIF/ QCIF (1~25fps) |
| Bit Rate | 32Kbps~6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution HDMI | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Resolution VGA | 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Ethernet | 1 RJ-45 Port (1000 MB) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android Phone |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback & Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Ports, up to 10TB capacity for each disk |
| Auxiliary Interface | |
| USB Interface | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| RS485 | 1 port, For PTZ Control |
| RS232 | N/A |
| General | |
| Power Supply | DC12V/3A |
| Power Consumption | <15W (without HDD) |
| Dimensions | Compact 1U, 260 mm × 238 mm × 48 mm |
| Net Weight | 1.3KG(without HDD) |
| Gross Weight | 2.1KG(without HDD) |
| Operating Environment | -10°C ~+55°C / 0%~90%RH |
| Storage Conditions | -20°C ~+70°C / 0%~90%RH |
Description
Part Number: DHDVR24-B6-0TB
Recorder Resolution 8MP
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection Yes
BNC Channels 16 Channel
Extra IP Channels 16 Channel
Smart Dual Illumination Supported Yes
The SPRO B6 8MP 16 Channel 5in1 with AI combines advanced technology with a sleek design. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus all provide superior security and monitoring capabilities.
With 16 BNC channels and the ability to add an additional 16 IP channels via the local network, it allows a total of 32 cameras to be displayed and recorded on the device. Up your security game with the SPRO B6 8MP 16 Channel 5in1 with AI.
With a combination of advanced technology and a modern design, this system offers superior security and monitoring capabilities. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus, this system is equipped with all the tools you need to keep your home or business safe.
With 16 BNC channels and the ability to add an additional 16 IP channels, you can display and record footage from up to 32 cameras on one device. Don't compromise on security - choose SPRO.
| Specifications: | |
|---|---|
| Model Number | DHDVR24-B6 |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 2 channels, 10 IVS for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces (not in device's face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD Plus | |
| Performance | 16 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video & Audio | |
| Analog Camera Input | 16 channels, BNC |
| HDCVI Camera Input | 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera Input | 4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera Input | 4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 16+16 channels, each channel up to 8MP |
| Audio In/Out | P1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Rate - Main Stream | 4K(7fps), 6MP(10fps), 5MP(12fps),4MP/3MP(15fps),4M-N/ 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps) |
| Record Rate - Sub Stream | 960H (1~15fps), D1/ CIF/ QCIF (1~25fps) |
| Bit Rate | 32Kbps~6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution HDMI | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Resolution VGA | 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Ethernet | 1 RJ-45 Port (1000 MB) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android Phone |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback & Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Ports, up to 10TB capacity for each disk |
| Auxiliary Interface | |
| USB Interface | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| RS485 | 1 port, For PTZ Control |
| RS232 | N/A |
| General | |
| Power Supply | DC12V/3A |
| Power Consumption | <15W (without HDD) |
| Dimensions | Compact 1U, 260 mm × 238 mm × 48 mm |
| Net Weight | 1.3KG(without HDD) |
| Gross Weight | 2.1KG(without HDD) |
| Operating Environment | -10°C ~+55°C / 0%~90%RH |
| Storage Conditions | -20°C ~+70°C / 0%~90%RH |
SPRO
by
SPRO
SPRO B6 8MP 16 Channel 5in1 with AI
- Regular price
- £466.11
- Sale price
- £466.11
- Regular price
-
£466.11
