Description
Part Number: DHDVR24-B6-2H-V3-0TB
Brand: SPRO
Recorder Resolution 8MP
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection Yes
BNC Channels 16 Channel
Extra IP Channels 16 Channel
Smart Dual Illumination Supported Yes

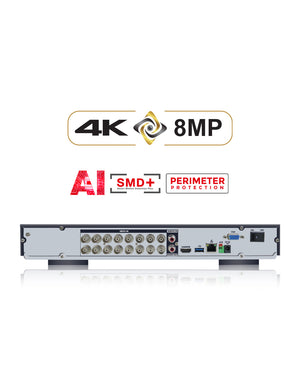

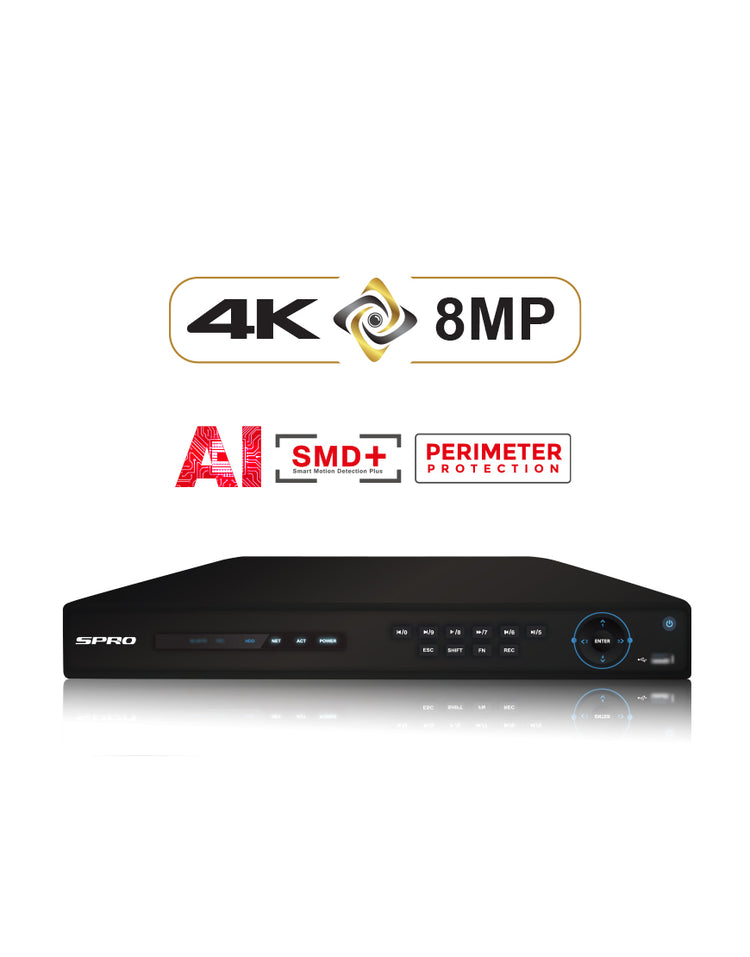

The SPRO B6 8MP 16-Channel Recorder is a high-performance DVR with the ability to support up to 32 cameras through its 16 BNC channels and additional 16 IP channels. This allows for a large number of cameras to be monitored, providing maximum security coverage for your space.
With ultra-high resolution, AI-powered intelligence, remote access, and advanced analytics, it redefines the capabilities of a DVR. Secure property, monitor surveillance intelligently and embrace the future of video surveillance with the SPRO B6 With an ultra-high resolution of 8MP, advanced AI-powered intelligence, remote access capabilities, and advanced analytics, the SPRO B6 revolutionizes the world of DVRs.
Keep your property safe with intelligent surveillance monitoring and embrace the future of video surveillance.
Click the video below to find out more
| Specifications: | |
|---|---|
| Model Number | DHDVR24-B6-2H-V3 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model:2 channels, 10 IVS for each channel General Model: 8 channel, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20 000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face picture |
| Face Recognition Performance | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channel : Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms cause by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. |
| Camera Input | 1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. |
| IP Camera Input | Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analogue channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps - 25 fps NTSC: 1 fps - 30 fps |
| Video Bit Rate | 32 kbps-6144kbps per channel |
| Audio Sampling | 8kH, 16 bit |
| Audio Bit Rate | 64 kbps |
| Bit Rate Type | Video stream and composite stream. |
| Video Output | 1 HDMI ,1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1 / 4 / 8 / 9 / 16 When IP extension mode enabled: 1 / 4 / 8 / 9 /16 / 25 / 36 |
| Third-Party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711A; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS: TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.06, CGI |
| Browser | Chrome, IE9 or above, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Frame Rate | General, motion detection; intelligent; alarm; POS |
| Recording Playback | When AI Function (IVS, FACE) is not enabled: 1 / 4 / 9 / 16 When the AI Function (IVS, FACE) is enabled: 1 / 4 / 9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, storage error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| Audio Input | 1-channel RCA (External) 16-channel BNC (coaxial audio) |
| Audio Output | 1, RCA |
| Two-way talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 |
| USB | 2 ( 1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC. 5 A |
| Power Consumption | Lower than 15W (without HDD) |
| Net Weight | 1.77 kg (3.90lb) |
| Gross Weight | 2.94 (6.48 lb) |
| Product Dimensions | 1U, 375.0mm x 289.4mm x 53.0mm |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10% - 90% (RH) |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
