Description

Part Number:  DHDVR06-B6-V3-0TB
Brand:  SPRO
Recorder Resolution  8MP
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
Face detection  Yes
Face Recognition  Yes
BNC Channels  4 Channel
Extra IP Channels  4 Channel
Smart Dual Illumination Supported  Yes

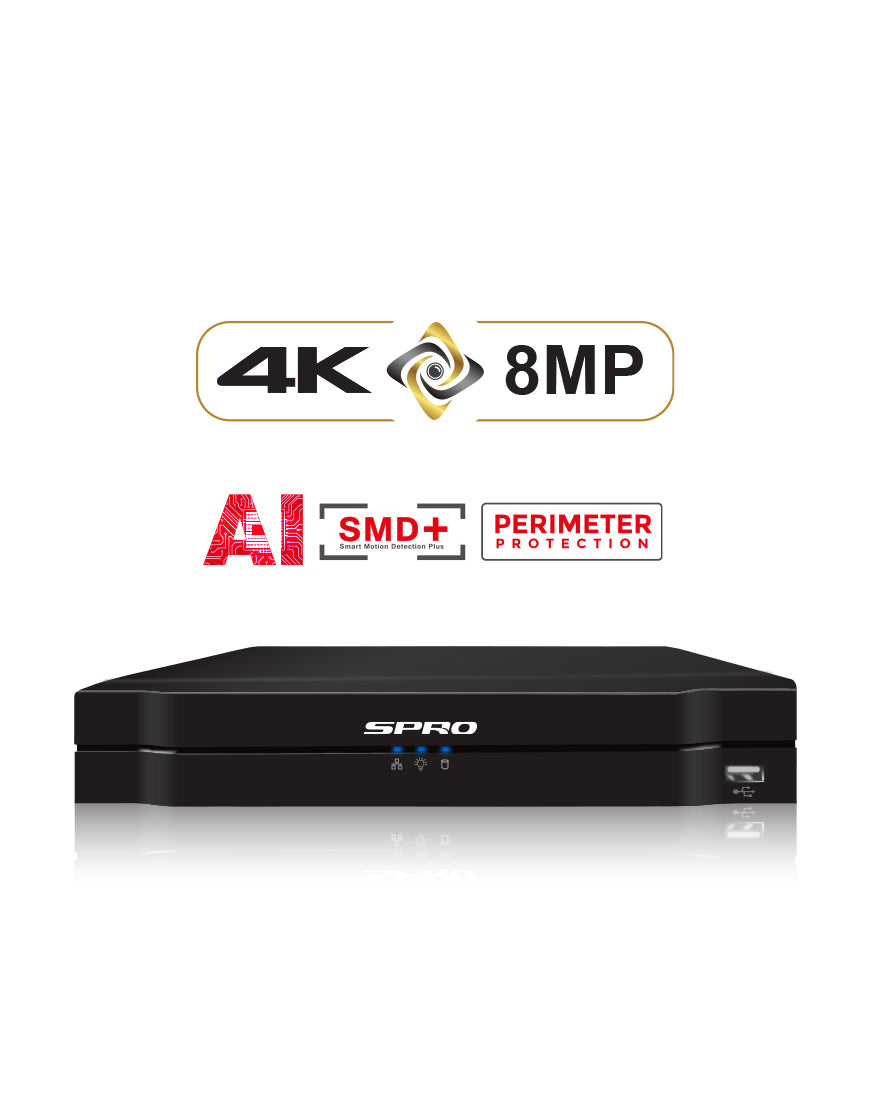

The SPRO B6 is a versatile 8MP, 4-channel 5in1 device, integrated with cutting-edge AI features such as Smart Detection Plus, Perimeter Protection, Face Detection, Intrusion, and Tripwire functionalities.

These advanced features are adept at distinguishing between human and vehicle movements. Along with its 4 BNC channels, the SPRO B6 offers the flexibility to connect an additional 4 IP cameras via the local network, accommodating a total of 8 cameras for comprehensive surveillance coverage. An ideal choice for both residential and commercial security needs. Maximize your surveillance capabilities with SPRO B6's cutting-edge AI technology and 8 channel capacity.

Equipped with advanced features such as Smart Detection Plus and Perimeter Protection, this device can accurately differentiate between human and vehicle movements. The 4 BNC channels can also be expanded to an additional 4 IP cameras, providing up to 8 cameras for comprehensive monitoring. Perfect for any residential or commercial security needs.

Key Features

  • H.265+ video compression
  • 4K recording@7fps, 4MP@15fps, 1080P@25fps
  • P2P(no port forwarding required)
  • 2-way audio
  • Push notification
  • Spot monitoring via local network
Specifications:
Model Number DHDVR06-B6-V3
Main Processor  Industrial-grade processor
Operating System Embedded LINUX
Operating Interface  Web; Local GUI
Perimeter Protection
Performance Advanced Model : 2 channels, 10 IVS for each channel
General Model : 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance
AI by Recorder		 2 channel (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity Up to 10 face databases with 20 000 images
Face Recognition Performance
AI by Recorder		 2 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change
Audio and Video
Analogue Camera Input 4 BNC ports, CVI access by default, supports HDCVI/ AHD
/TVI/CVBS auto-detect
Camera Input 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps;
4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps;
1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps;
1080p@25/30 fps; 720p@25/30 fps
IP Camera Input Up to 8 channels of IPC access
4 IP channels by default + 4 channels (analogue channels are
converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps
and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI
Function (IVS, SMD, FACE) will be disabled
Encoding Capacity Main stream:
4K@(1 fps-7 fps); 6 MP@(1 fps-10 fps); 5 MP@(1 fps-12 fps); 4K-N,
4 MP, 3 MP@(1 fps-15 fps); 4M-N, 1080p, 720p, 960H, D1,
CIF@(1 fps–25/30 fps);
Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
Dual-stream Yes
Video Bit Rate 32kbps-6144kbps
Audio Sampling 8kHz, 16 bit
Audio Bit Rate 64kbps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP;
UPnP; IP Filter; DDNS; Alarm Server; P2P; Auto Registration
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Record Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback,
smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk; disk error; disk full; offline; IP conflict; MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output,
access controller, voice prompt, buzzer, log, preset, email

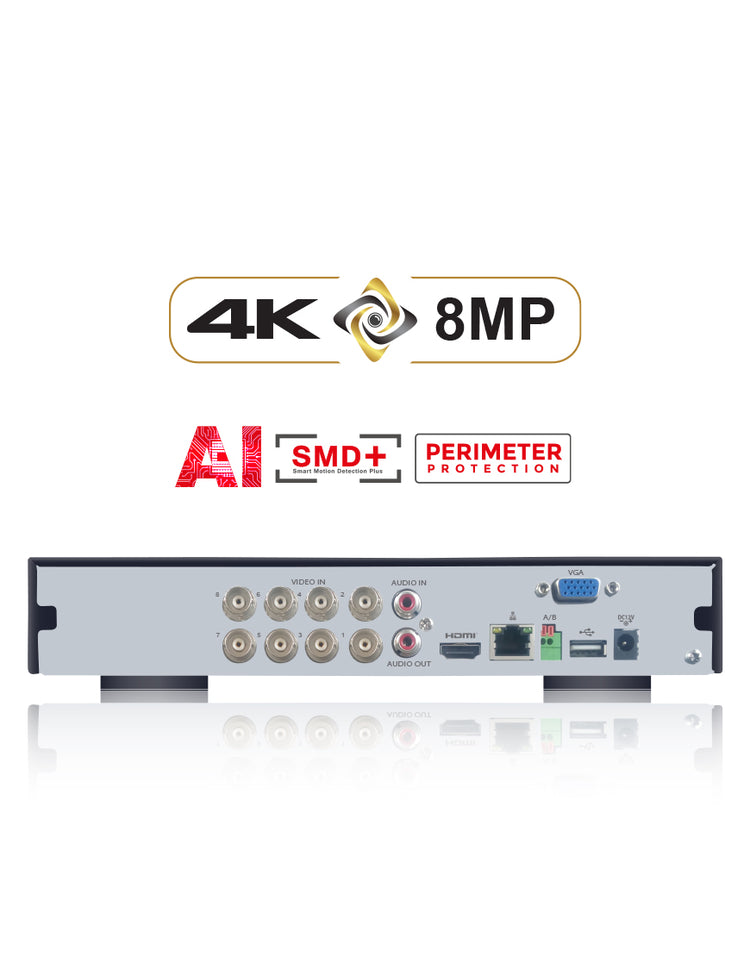

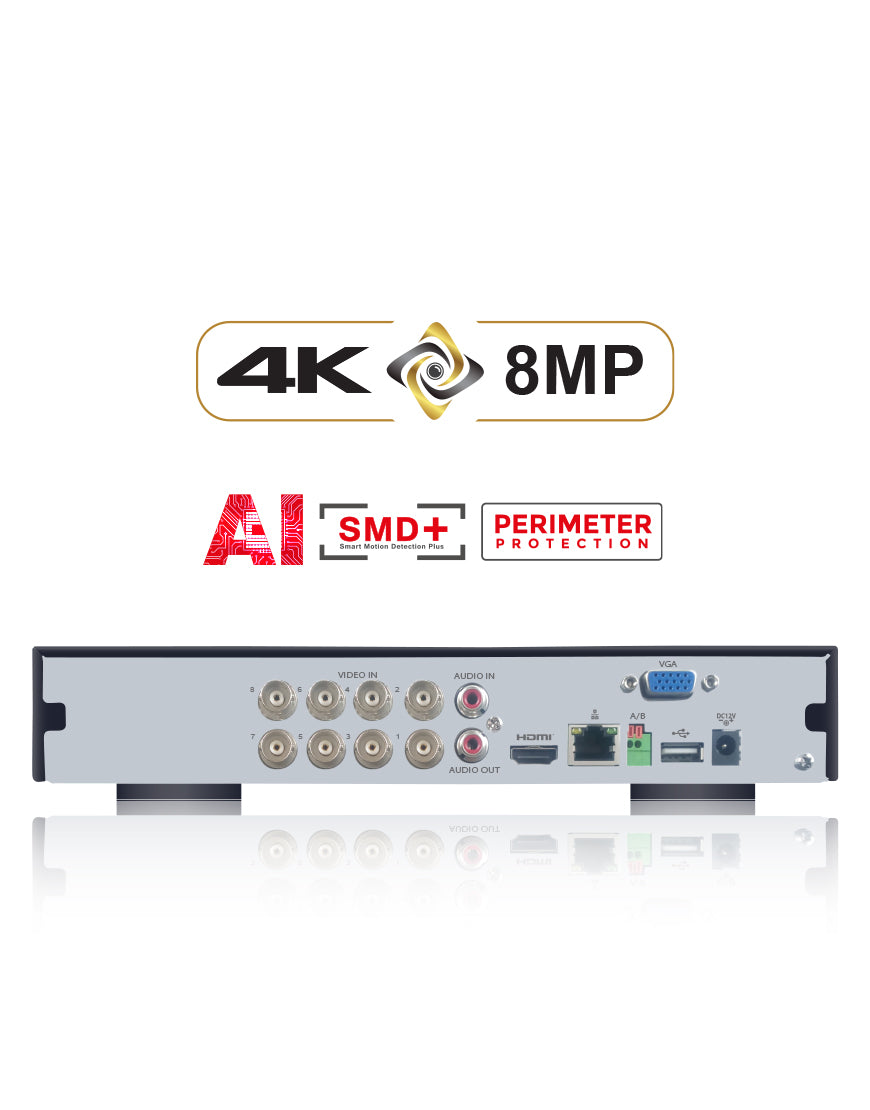

Ports
TV Output 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Input 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16TB. The Maximum HDD capacity varies with
environment temperature.
RS-485  1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network Port 1(10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7W
Net Weight 0.96 kg (2.12 lb)
Gross Weight 1.37 kg (3.03 lb)
Product Dimensions  260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity ≤93% (RH)
Installation Desktop
Certification
Certifications CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3,
EN 55032, EN 50130, EN 55024, EN 55035
FCC: Part 15 Subpart B
